Door Module

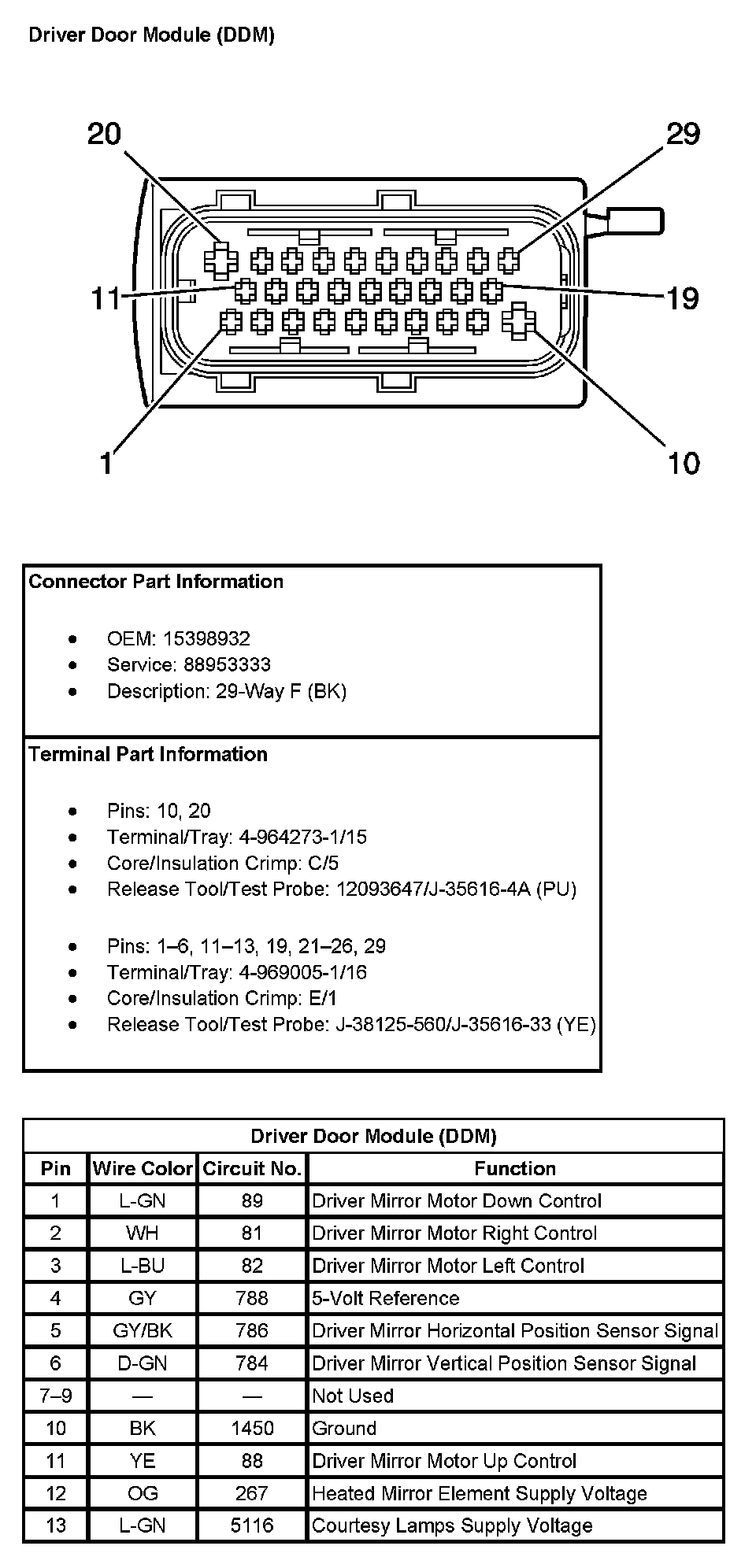

Driver Door Module (DDM) (Pin 1 To 13):

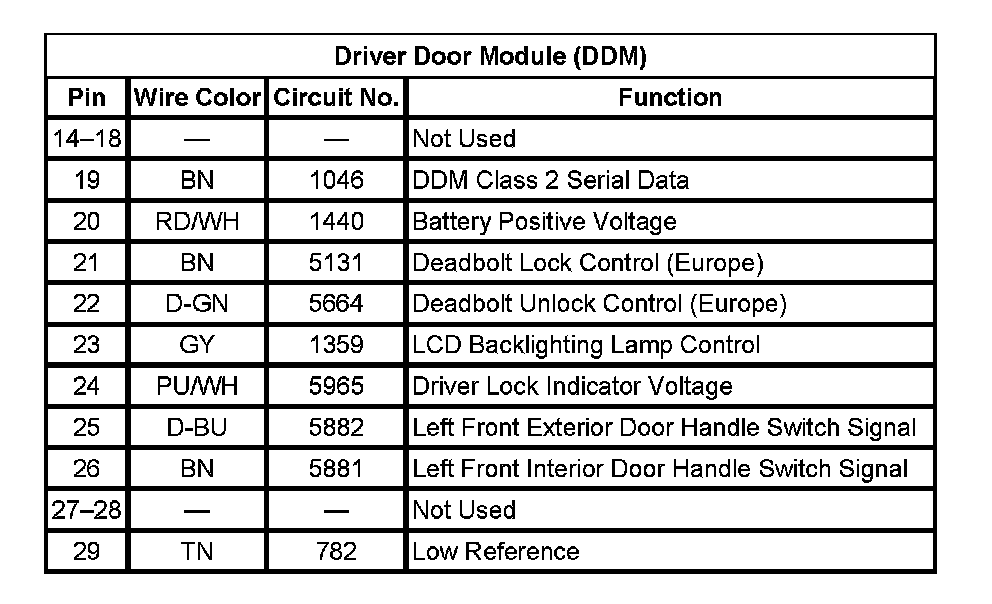

Driver Door Module (DDM) (Pin 14 To 29):

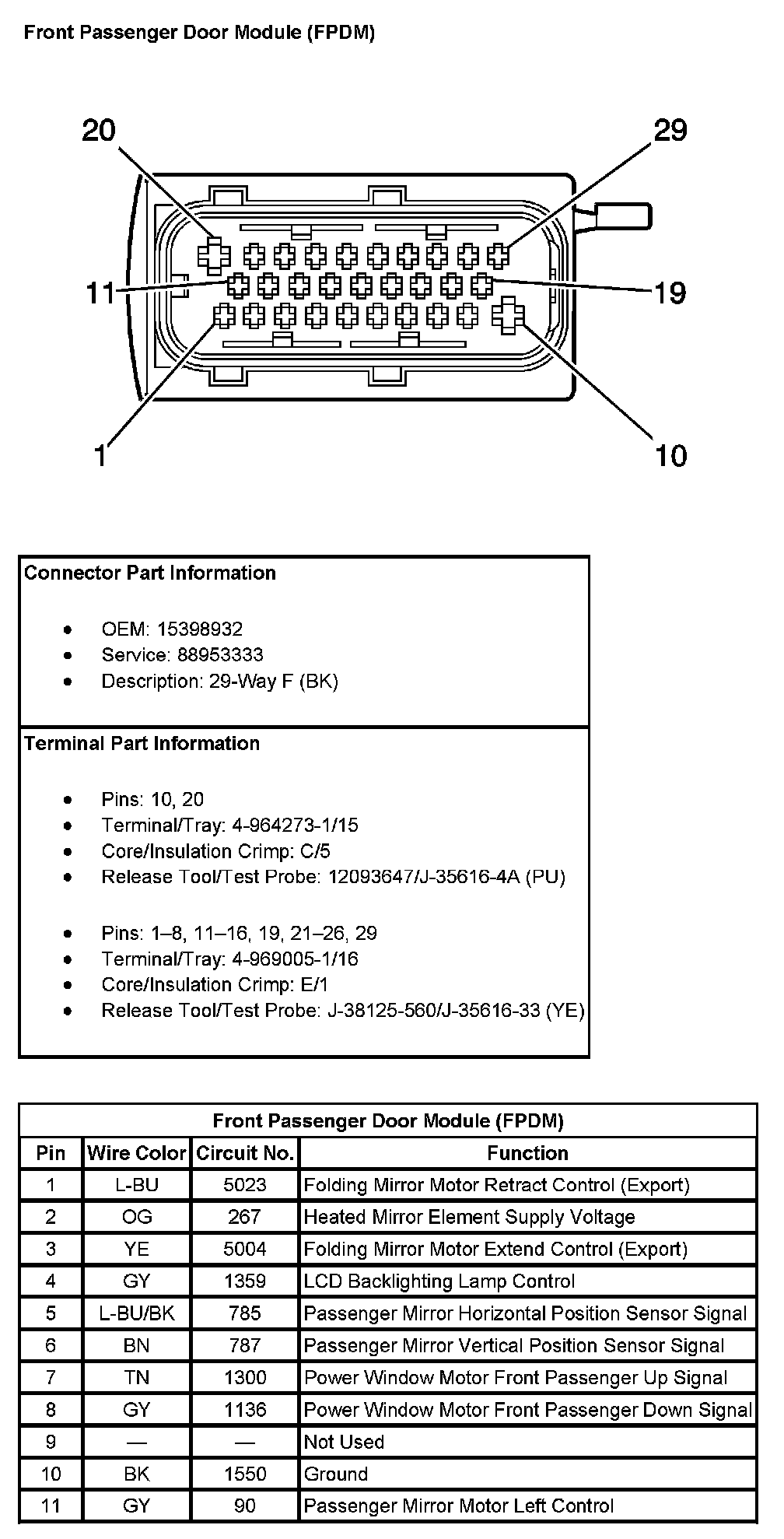

Front Passenger Door Module (FPDM) (Pin 1 To 11):

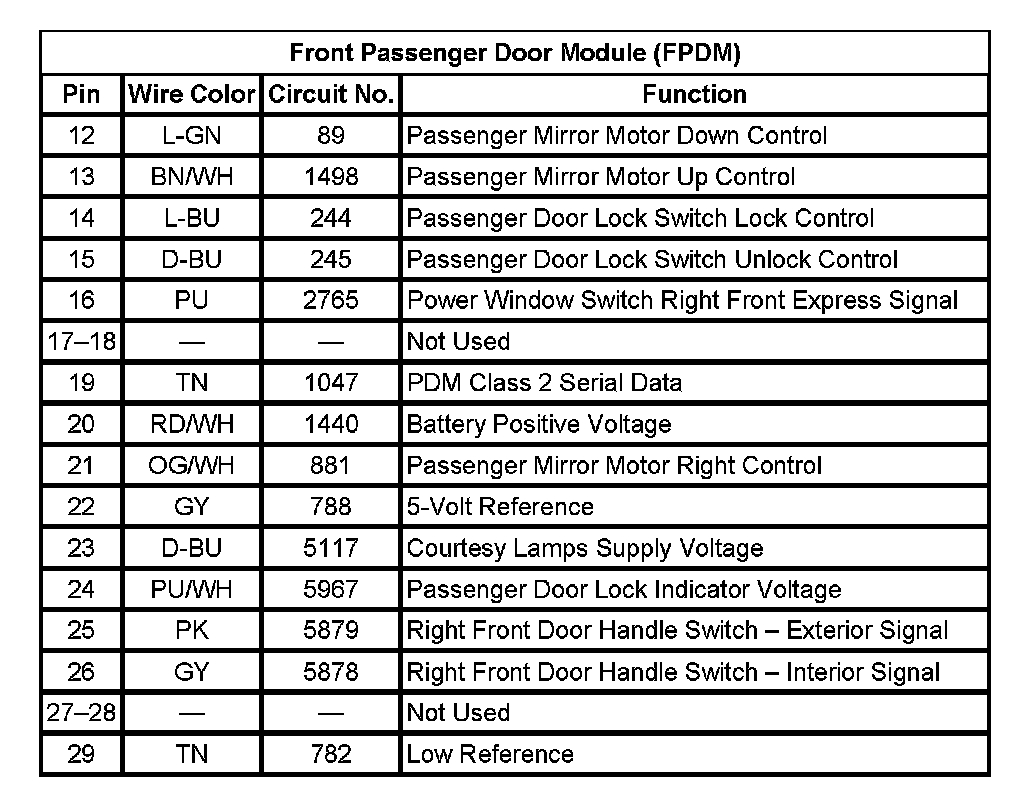

Front Passenger Door Module (FPDM) (Pin 12 To 29):
