Cadillac
>>
2007
>>
XLR V8-4.4L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
Combination Switch
Turn Signal/Multifunction Switch C3:
Turn Signal/Multifunction Switch C4:

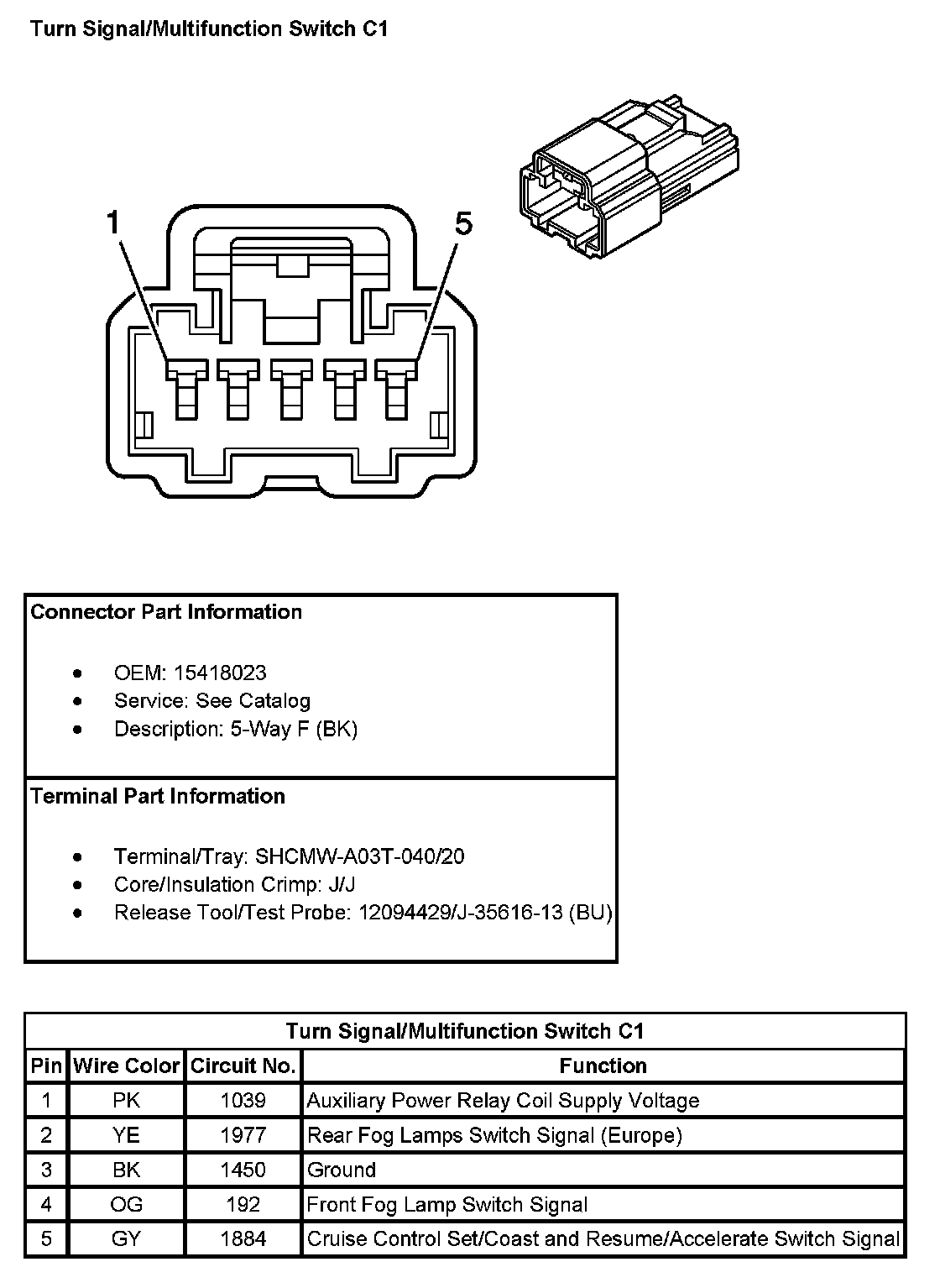

Turn Signal/Multifunction Switch C1:
Turn Signal/Multifunction Switch C2:
