Body Control Module (BCM) C4

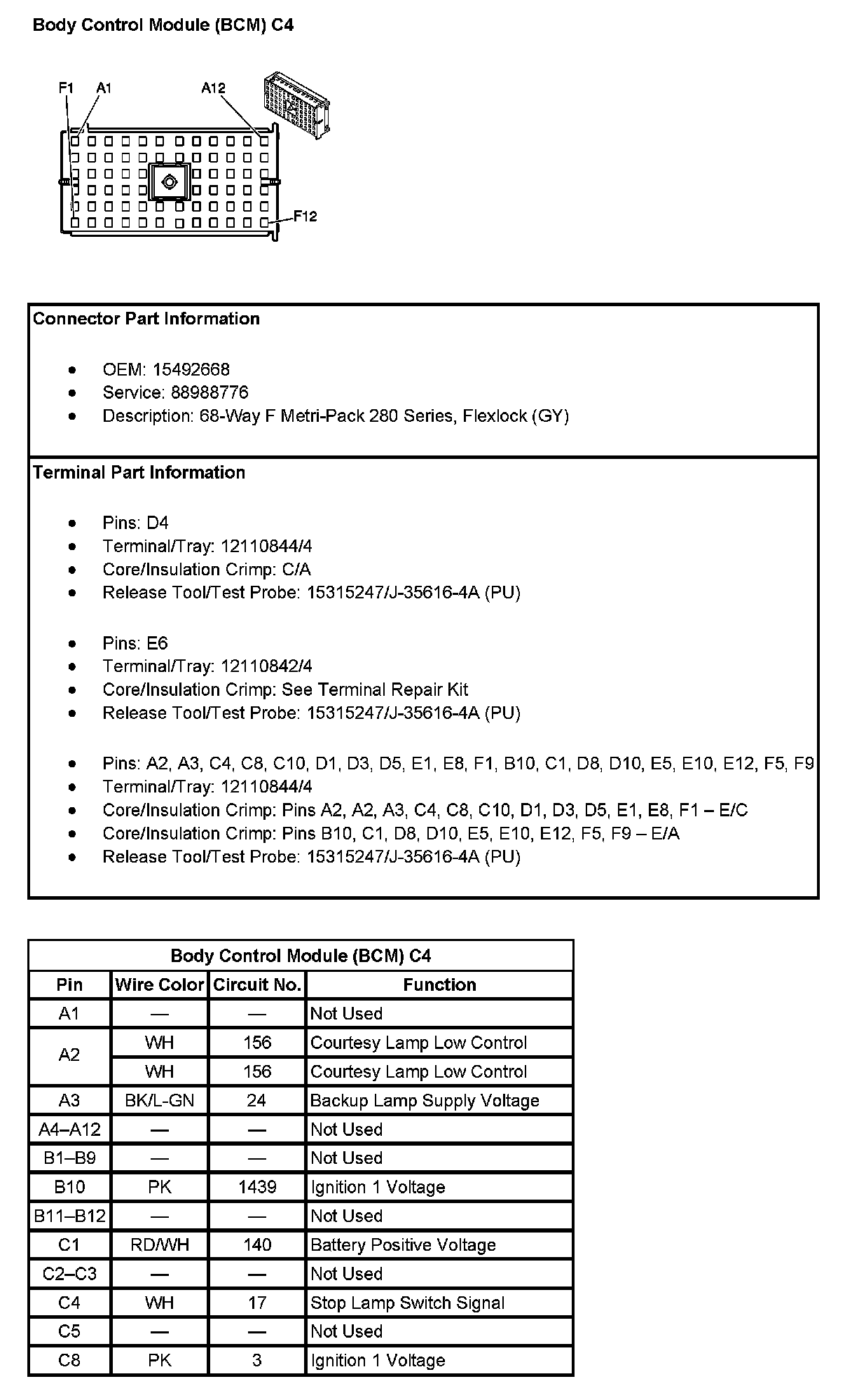

Body Control Module (BCM) C4 (Pin A1 To C8):

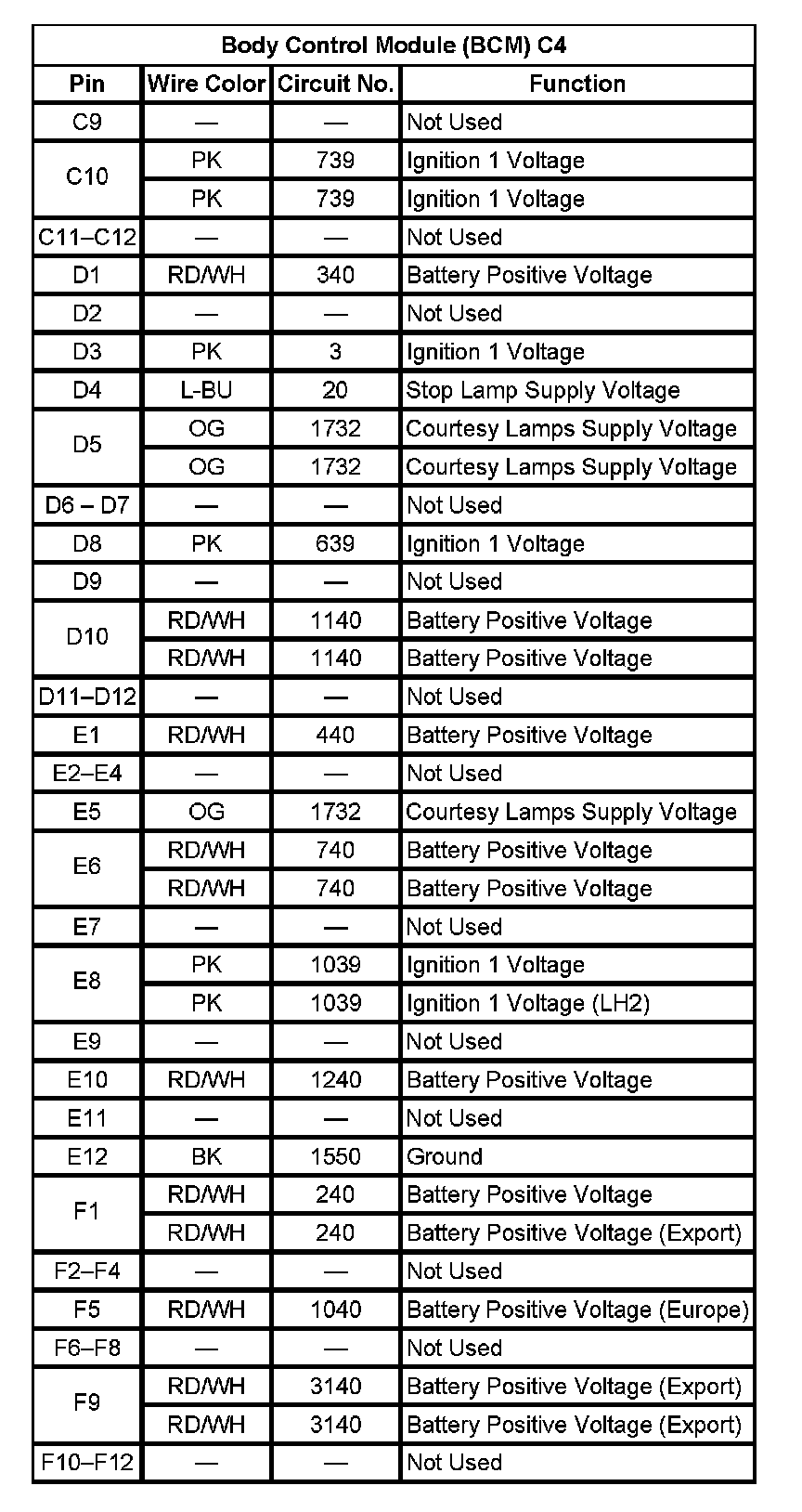

Body Control Module (BCM) C4 (Pin C9 To F12):
