Body Control Module (BCM) C3

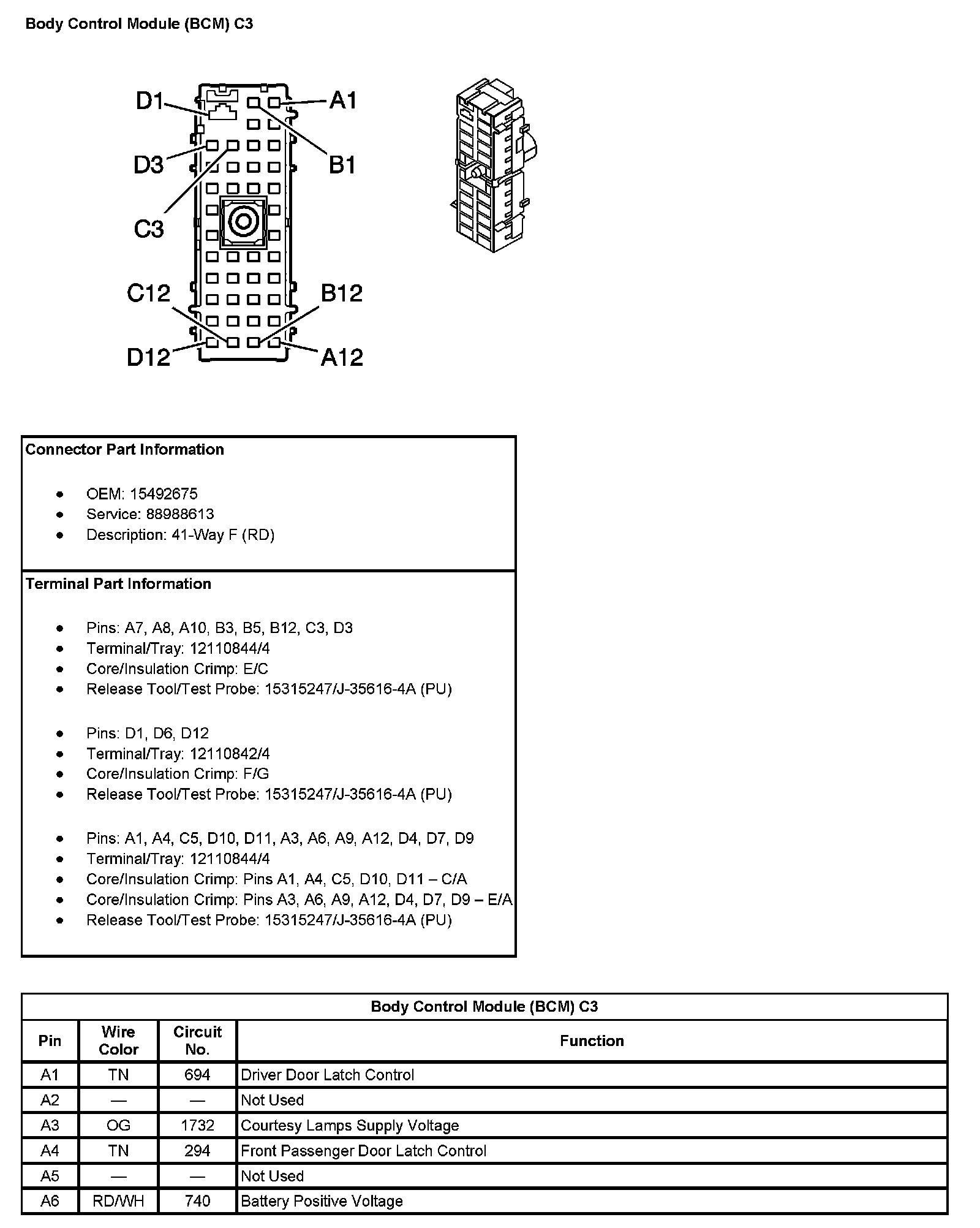

Body Control Module (BCM) C3 (Pin A1 To A6):

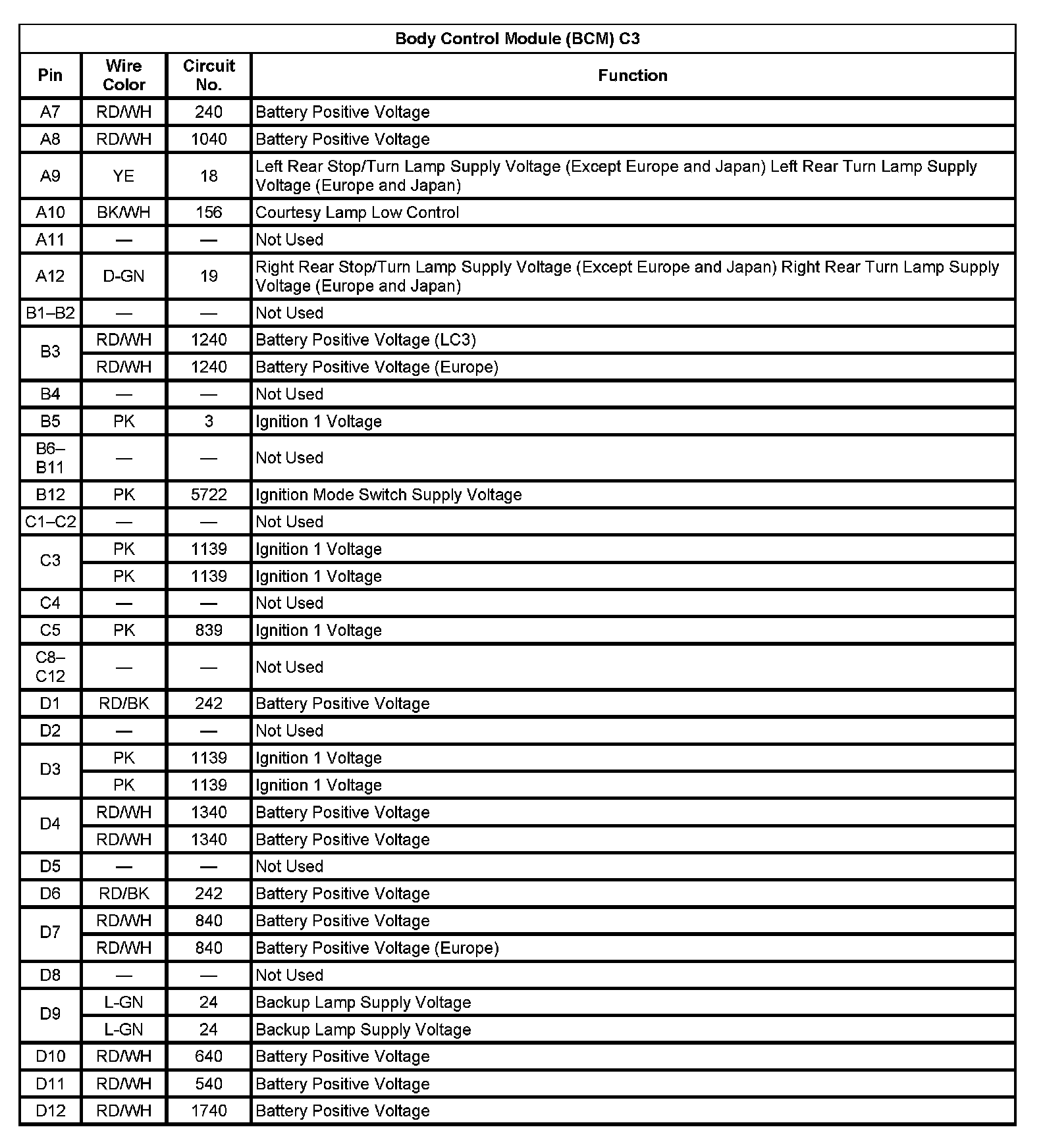

Body Control Module (BCM) C3 (Pin A7 To D12):
