Home >> Cadillac >> 2007 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) C2

Body Control Module (BCM) C2

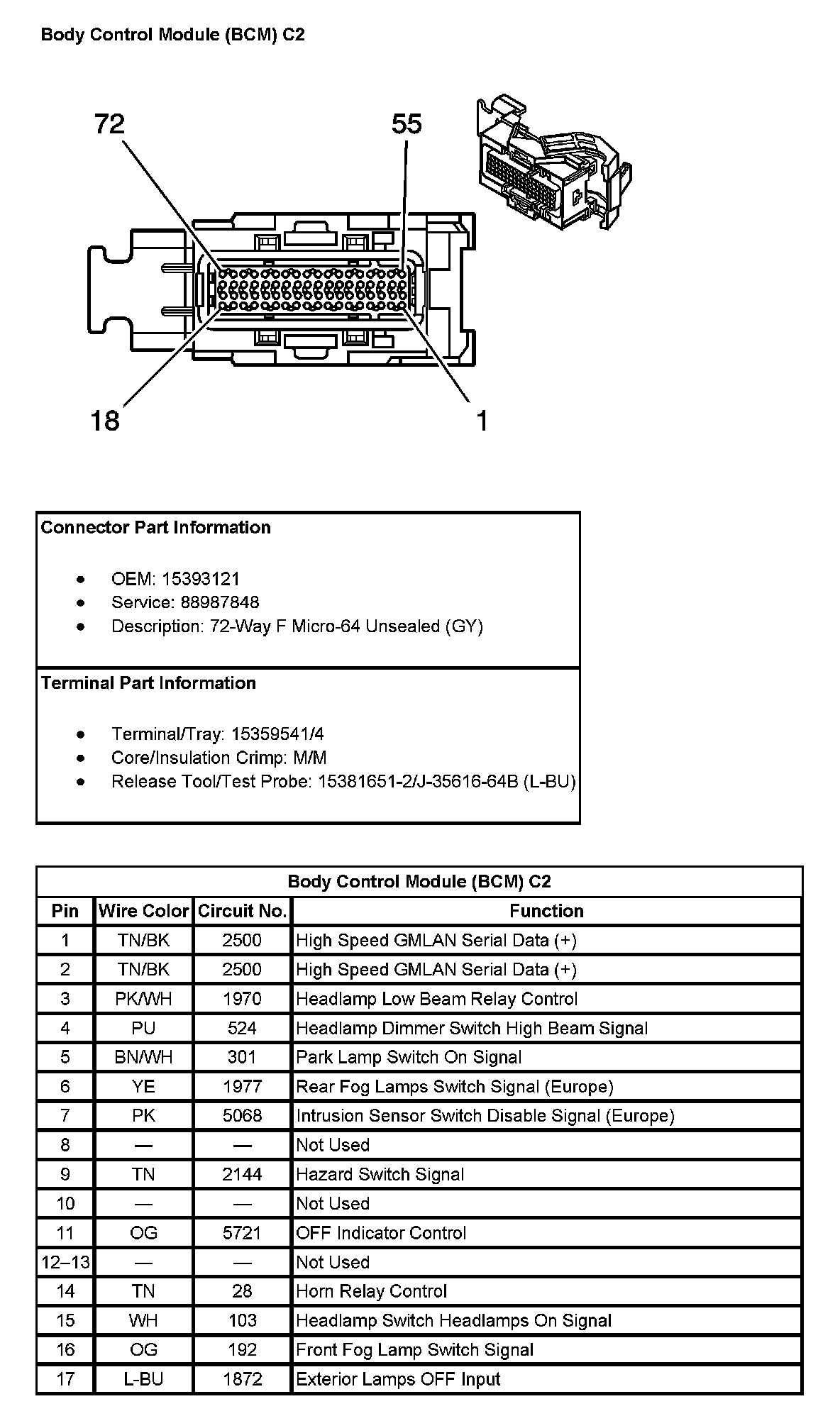

Body Control Module (BCM) C2 (Pin 1 To 17):

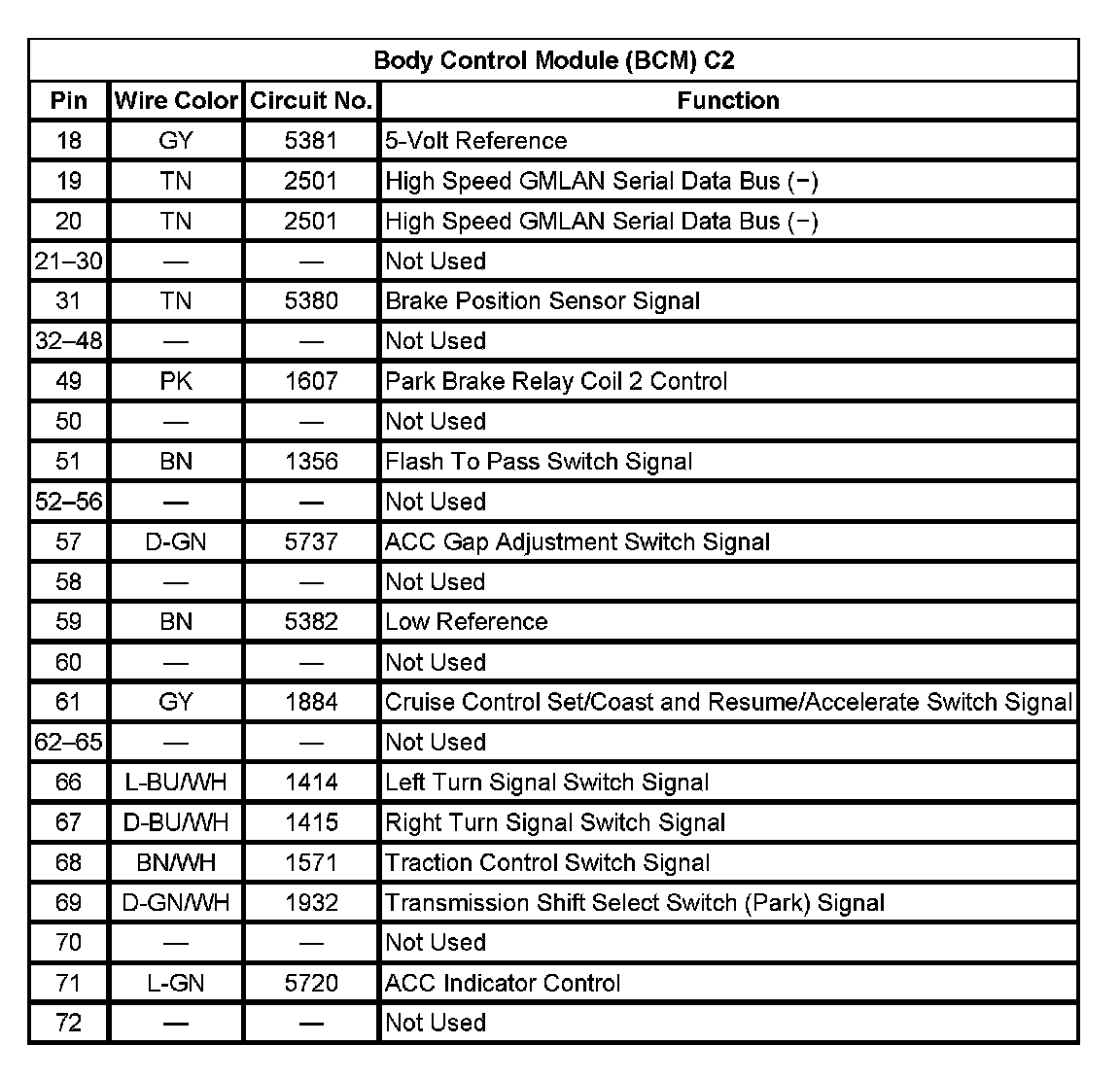

Body Control Module (BCM) C2 (Pin 18 To 72):
