Home >> Cadillac >> 2007 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

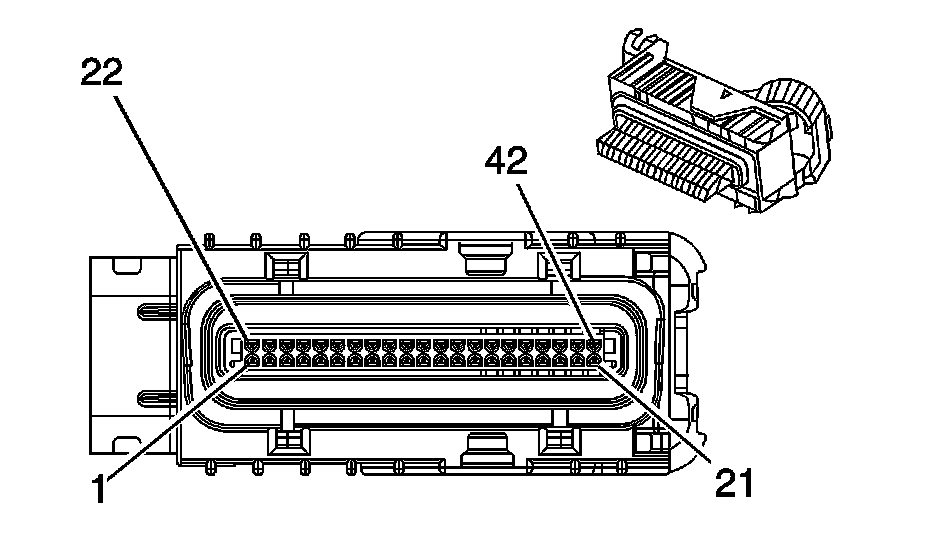

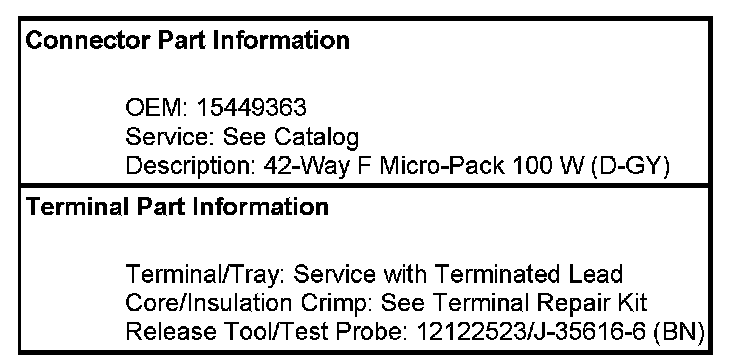

SIR Connector End Views

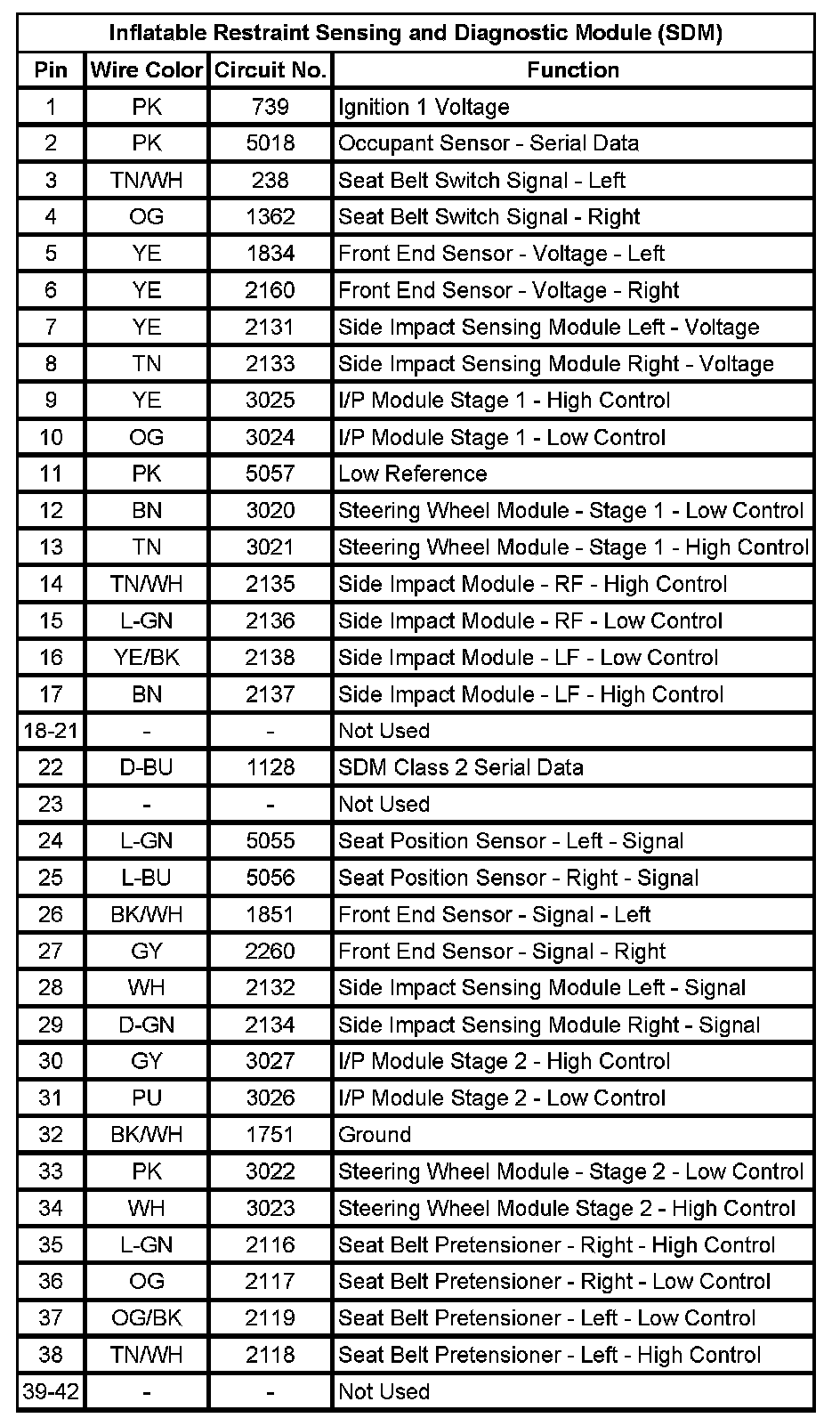

Inflatable Restraint Sensing and Diagnostic Module (SDM)
