Active Exhaust System Control Module
>>
Exhaust Flow Control Module C2
Exhaust Flow Control Module C2
Exhaust Flow Control Module C2

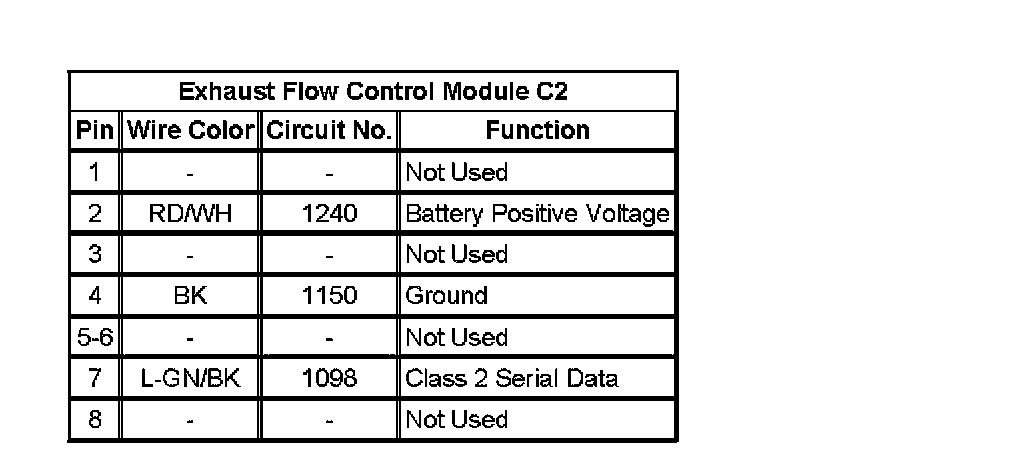

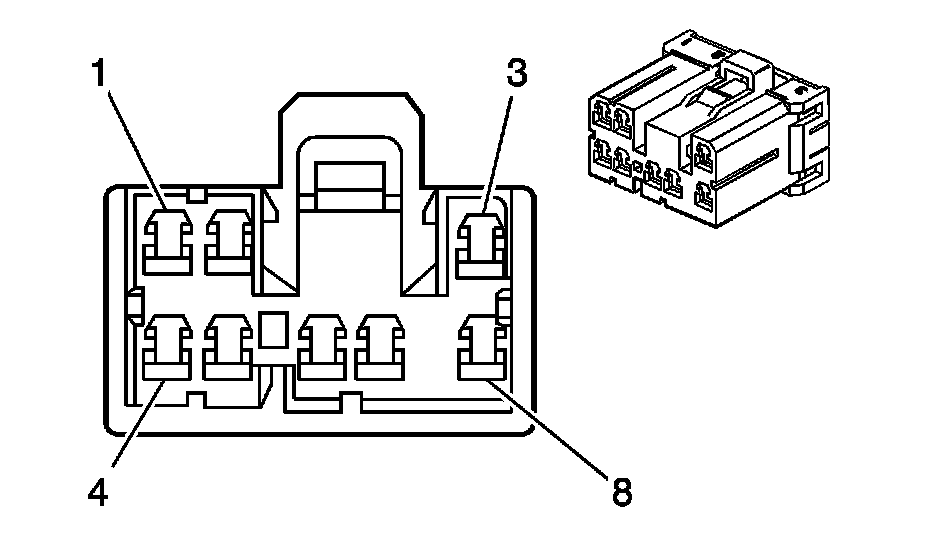

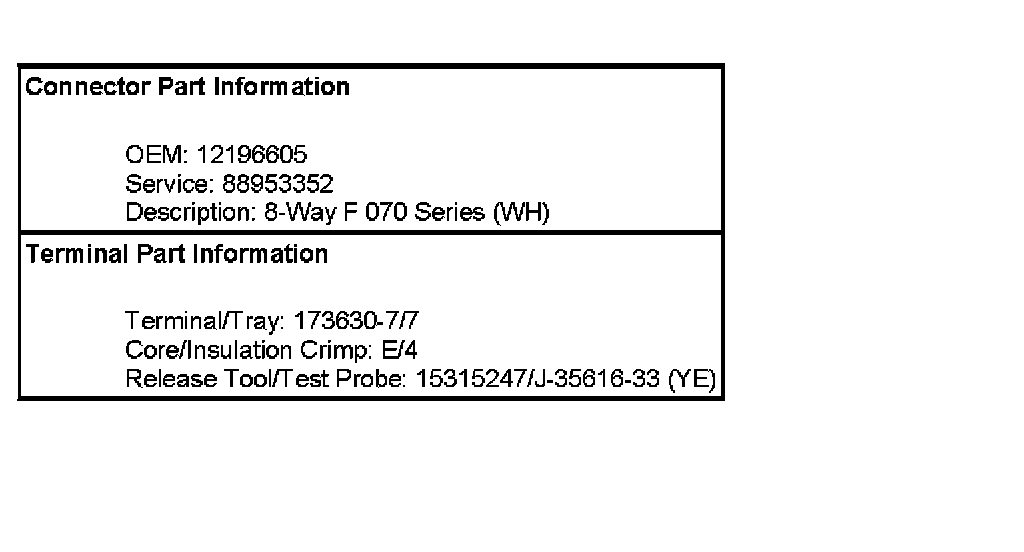

Exhaust Flow Control Module C2:
