Home >> Cadillac >> 2007 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Active Exhaust System Control Module >> Exhaust Flow Control Module C1

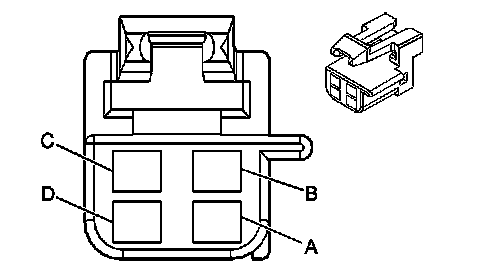

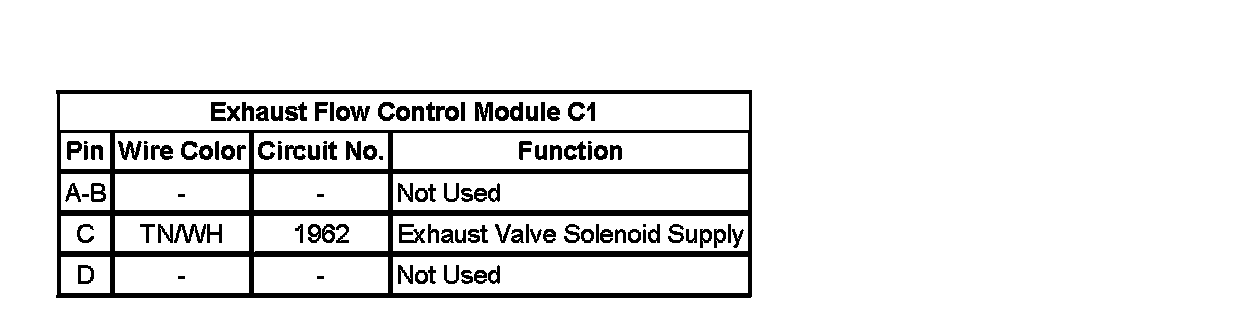

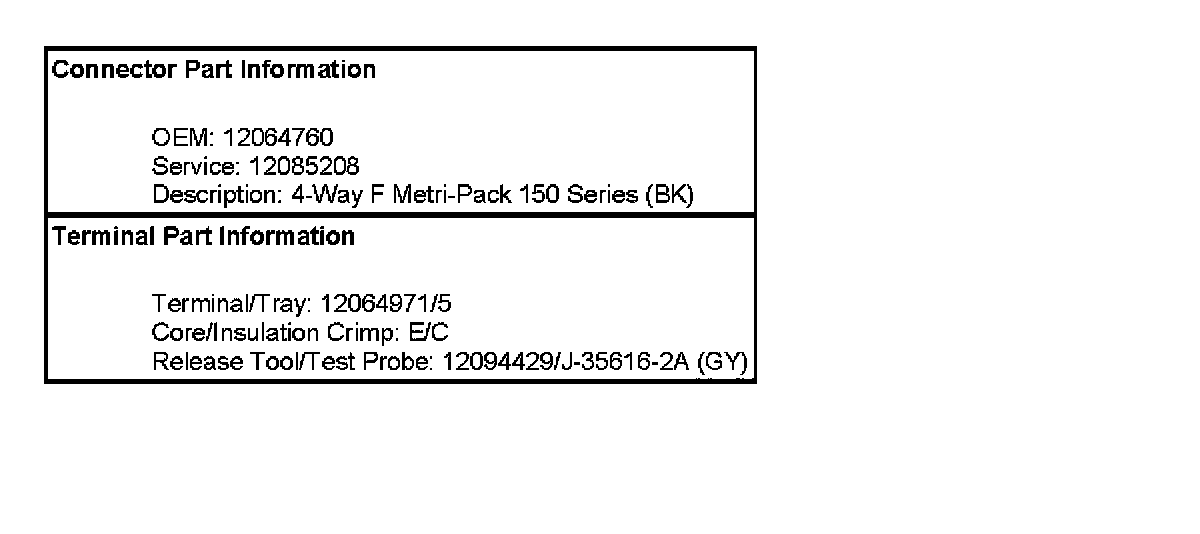

Exhaust Flow Control Module C1

Exhaust Flow Control Module C1

Exhaust Flow Control Module C1:
