Home >> Cadillac >> 2007 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Acceleration/Deceleration Sensor

Acceleration/Deceleration Sensor

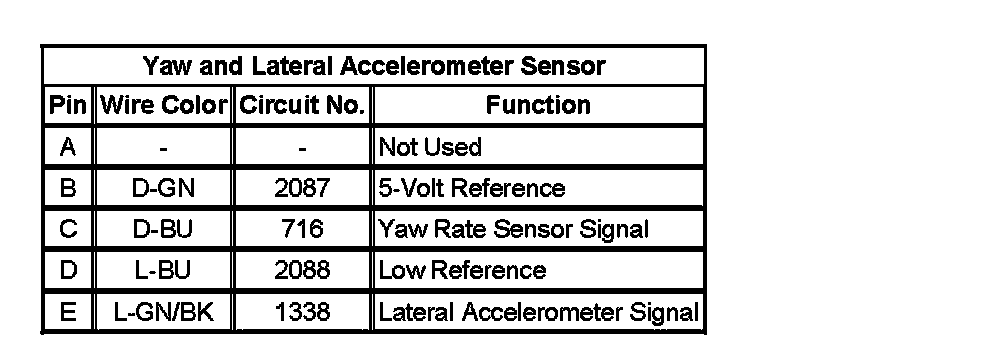

Yaw and Lateral Accelerometer Sensor







Yaw and Lateral Accelerometer Sensor:
