Keyless Entry Module: Diagrams

Remote Function Connector End Views

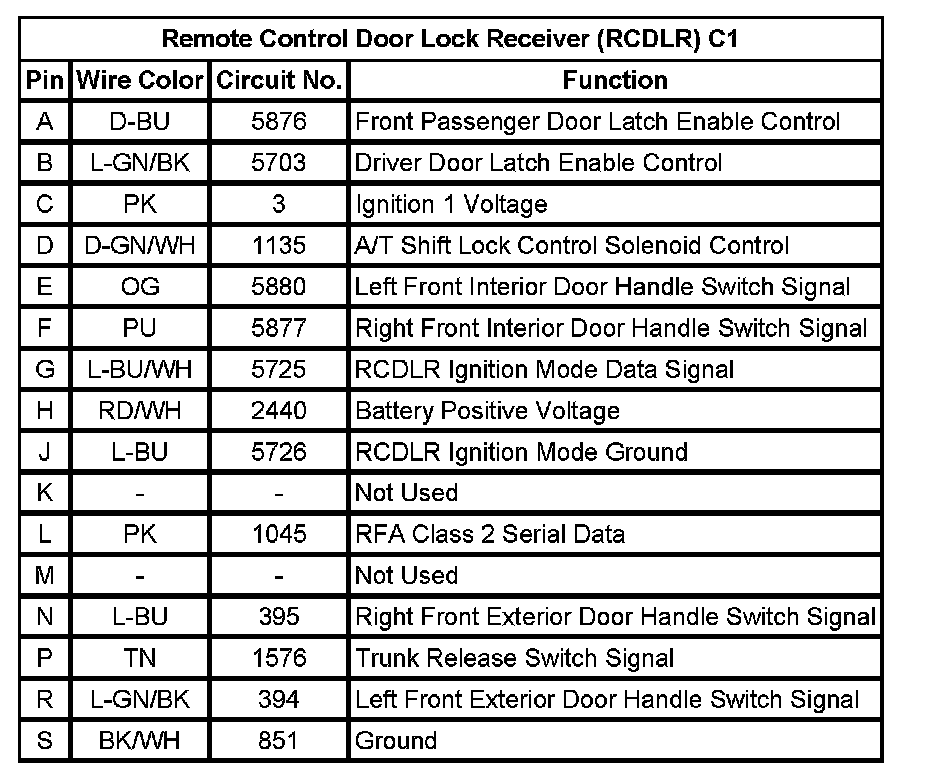

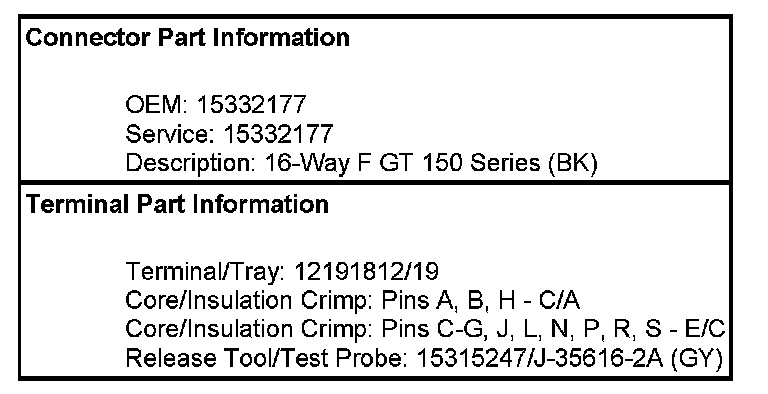

Remote Control Door Lock Receiver (RCDLR) C1

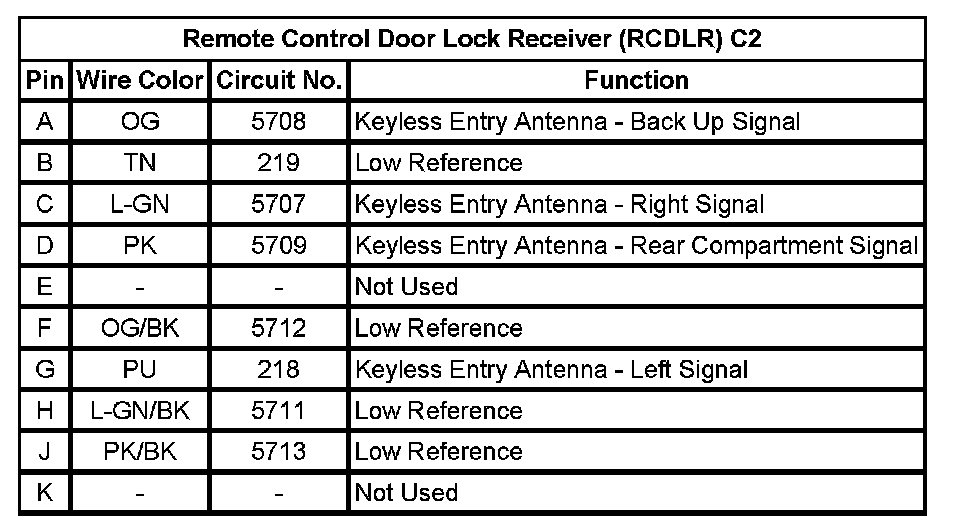

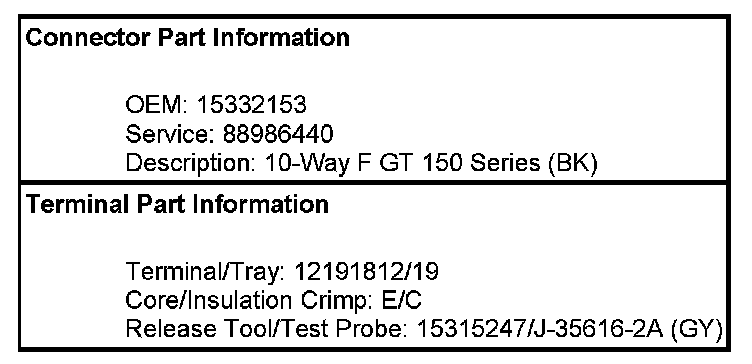

Remote Control Door Lock Receiver (RCDLR) C2
