Home >> Cadillac >> 2007 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Coolant Temperature Sensor/Switch (For Computer)

Coolant Temperature Sensor/Switch (For Computer)

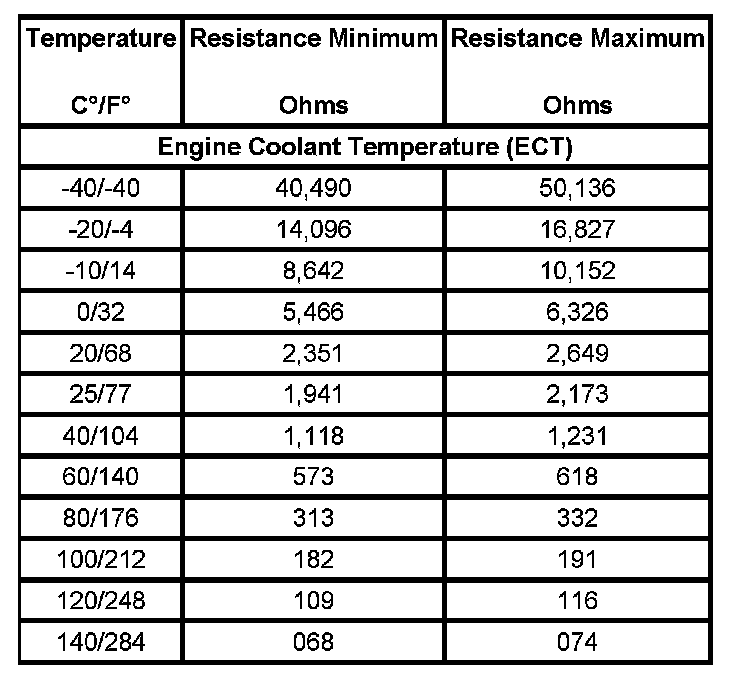

Temperature Versus Resistance - Engine Coolant Temperature Sensor
