Engine Control Module: Locations

Engine Controls Component Views

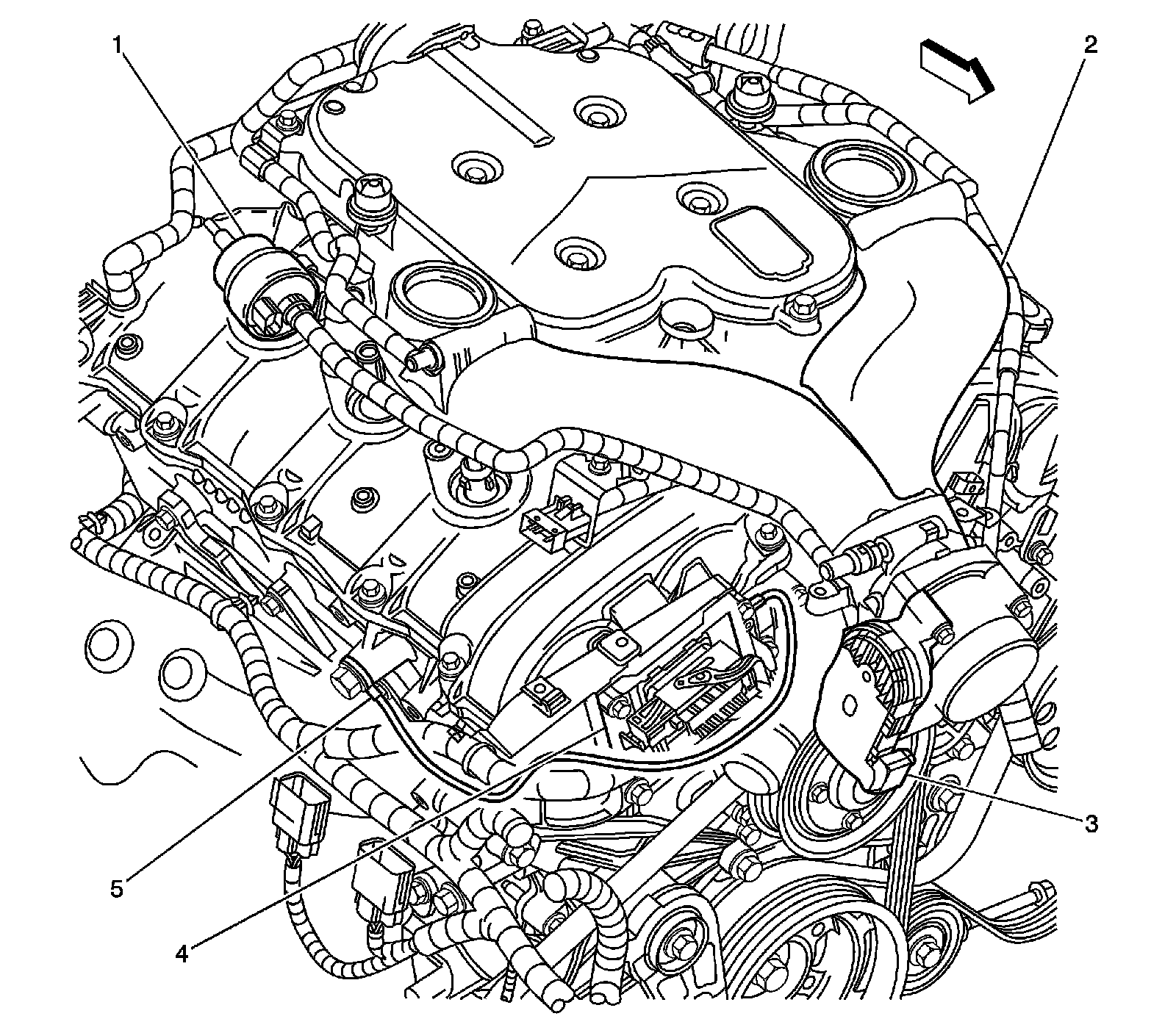

Upper Right Side of Engine (LY7)




1 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2 - Intake Manifold
3 - Throttle Actuator Control (TAC) Motor
4 - Engine Control Module (ECM)
5 - G103
