Home >> Cadillac >> 2007 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams

Body Control Module: Diagrams

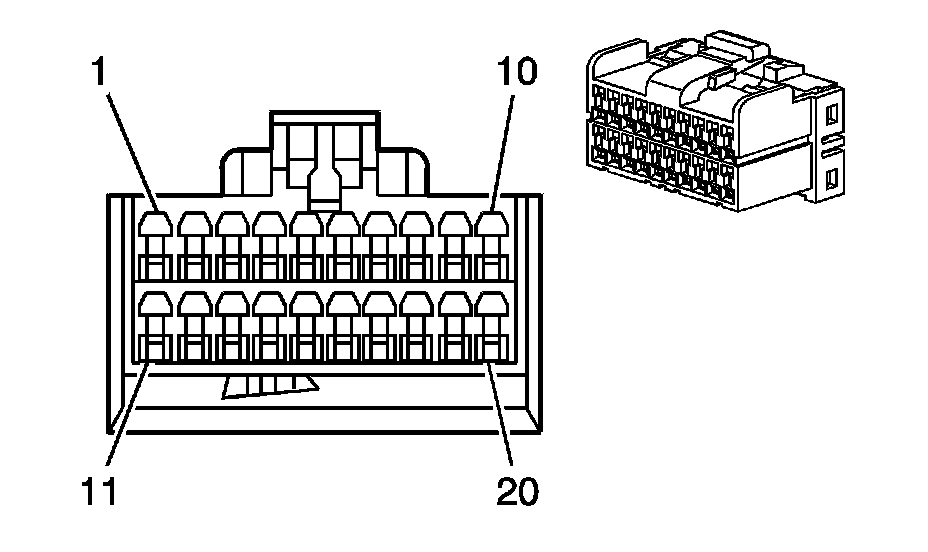

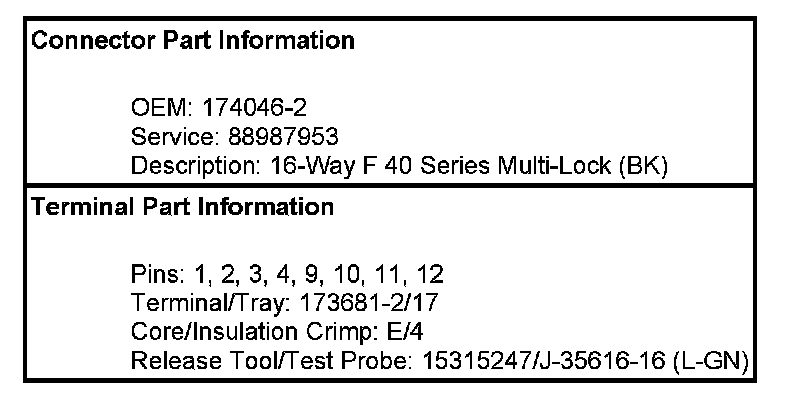

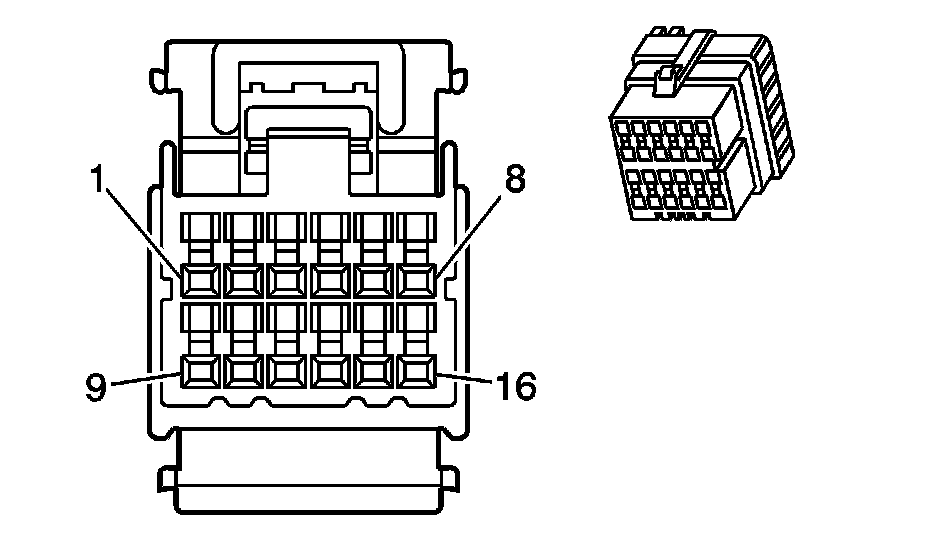

Data Communication Connector End Views

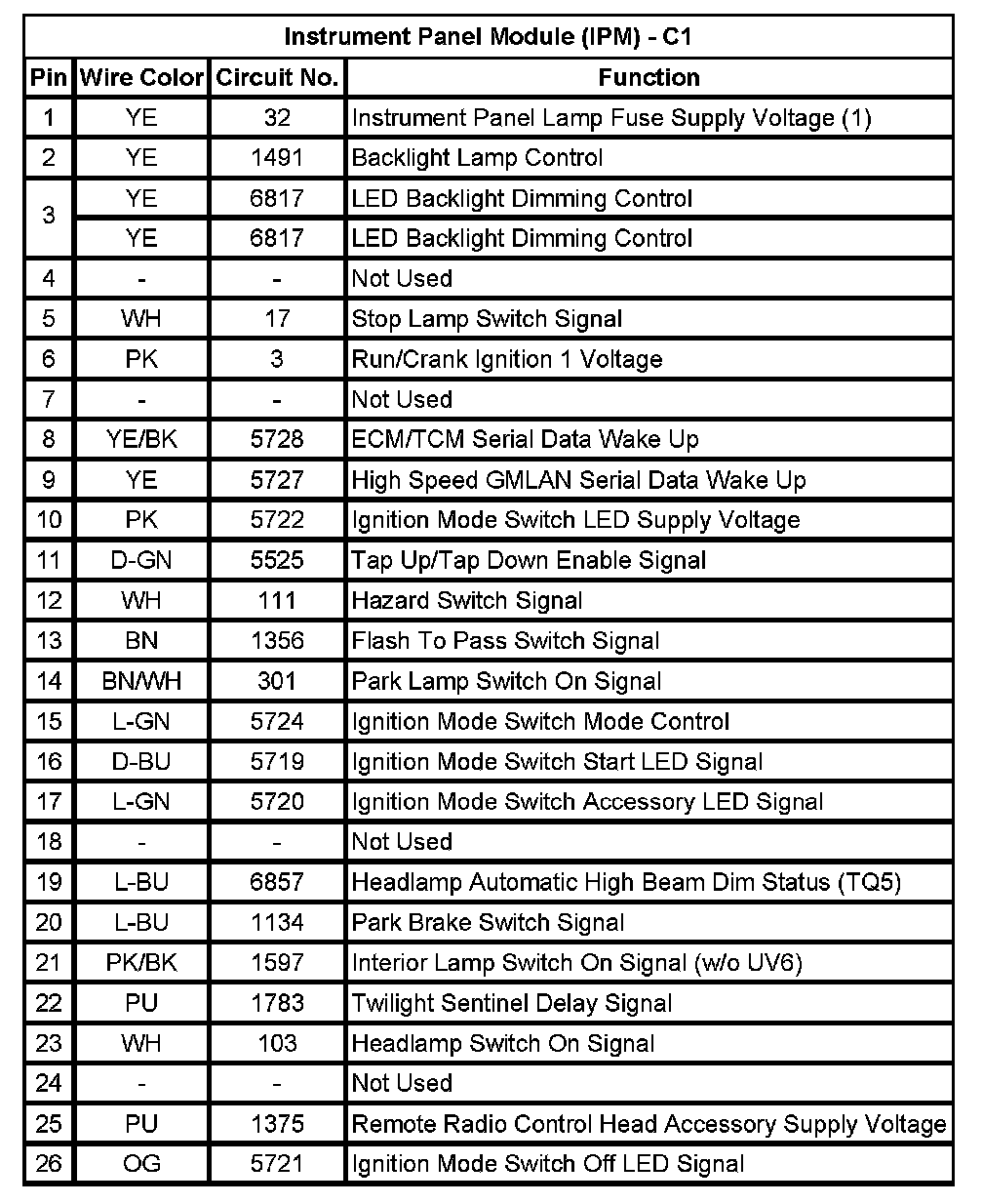

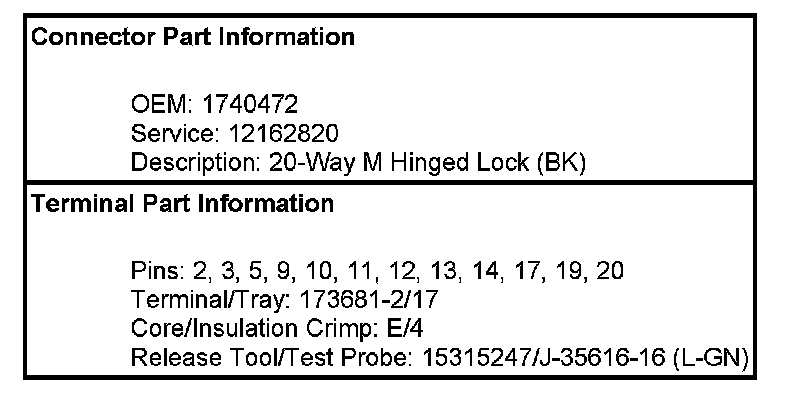

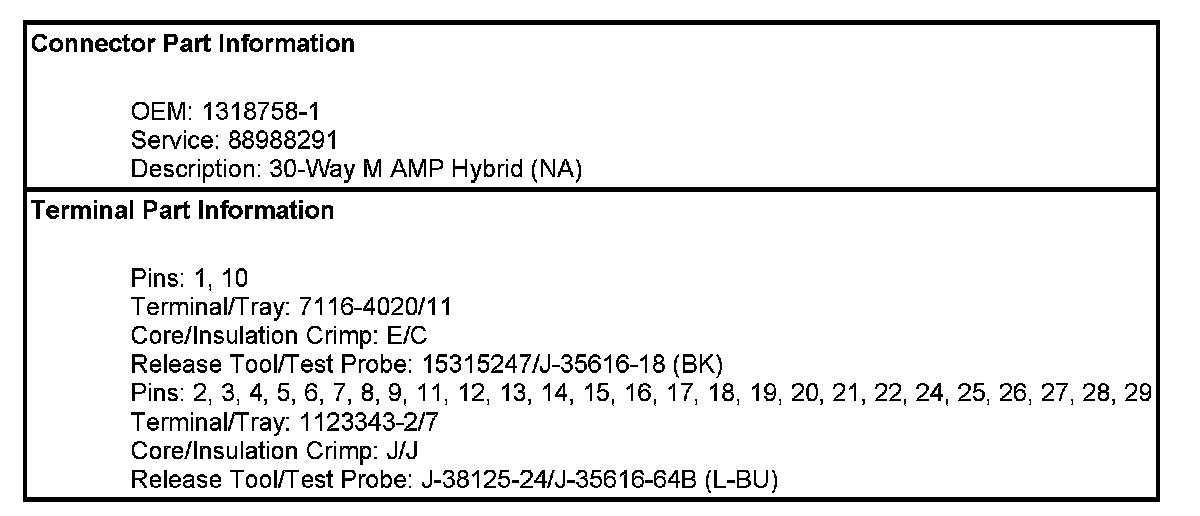

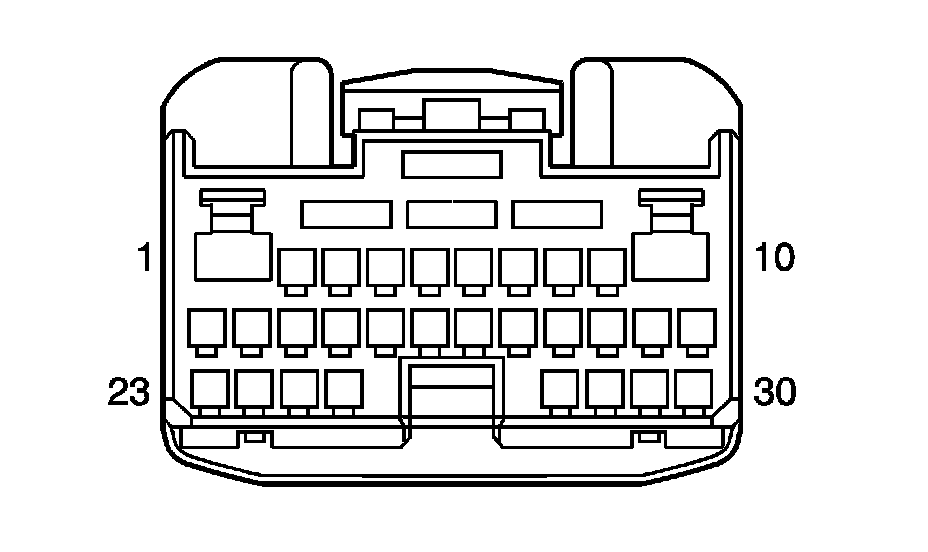

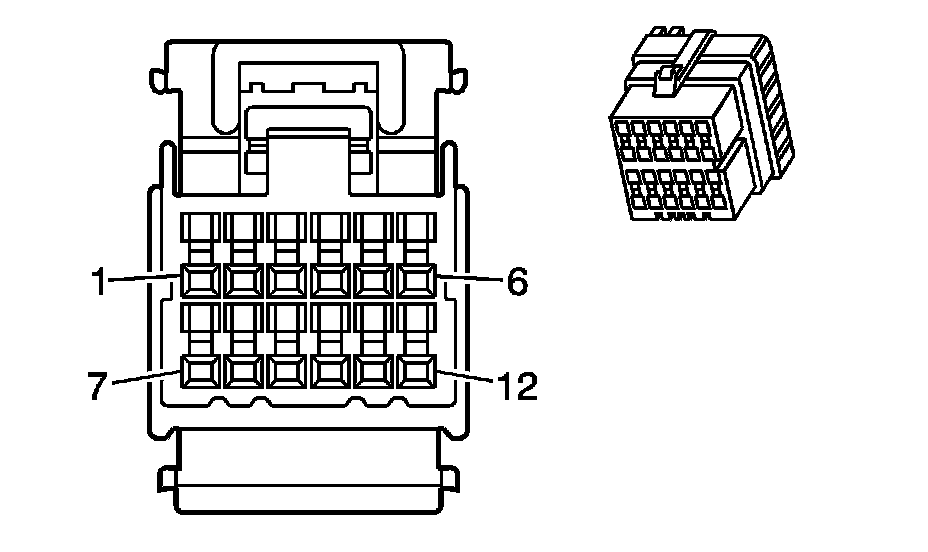

Instrument Panel Module (IPM) - C1

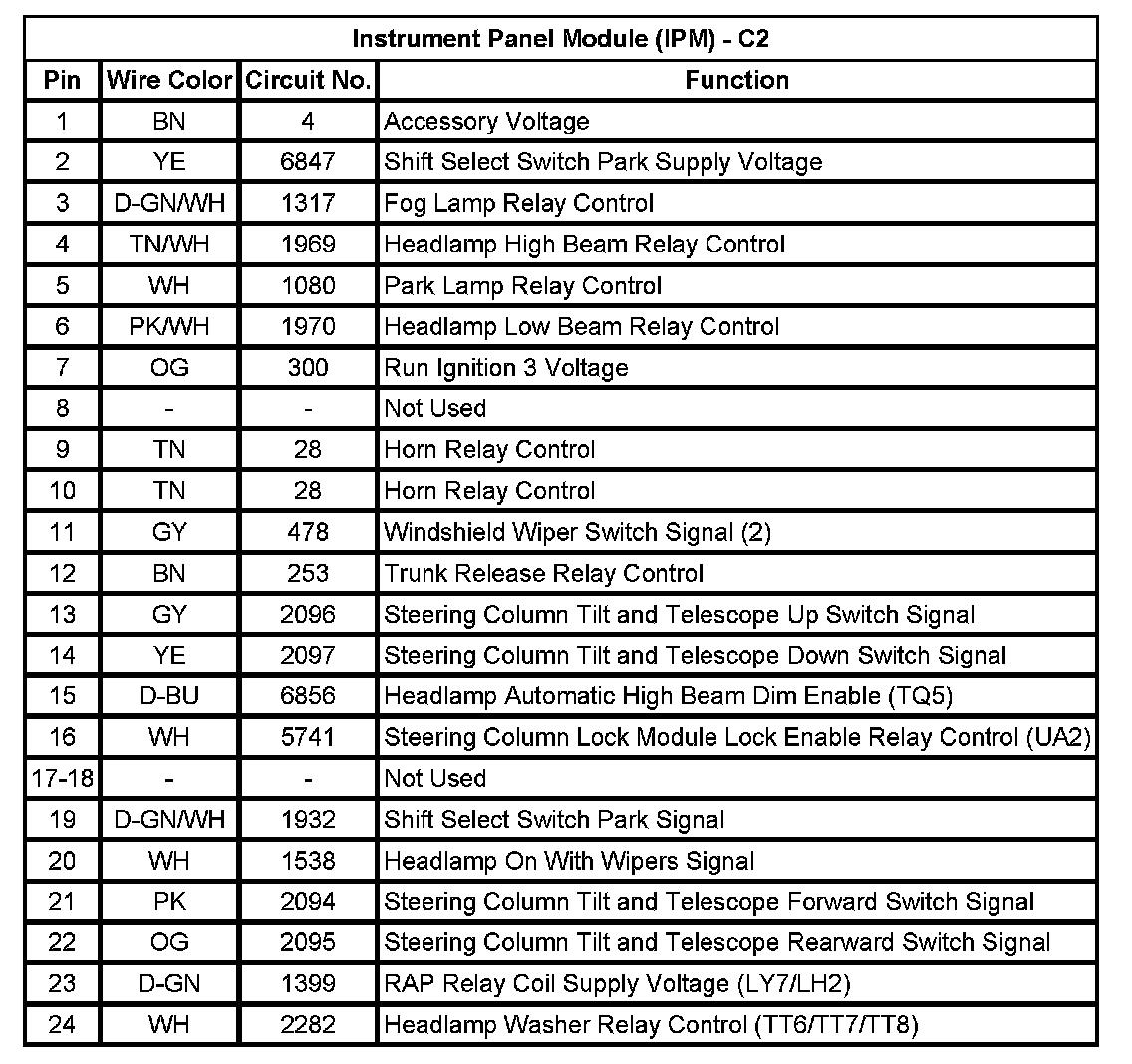

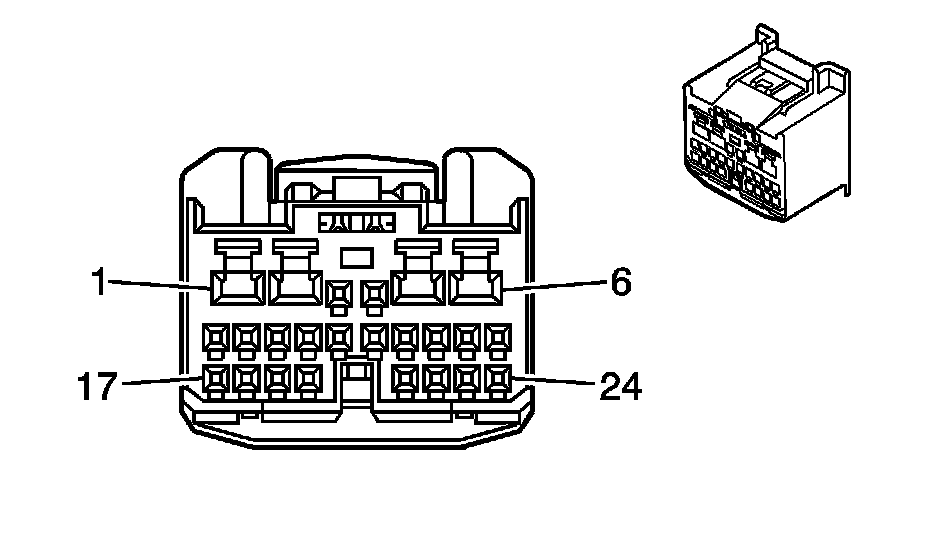

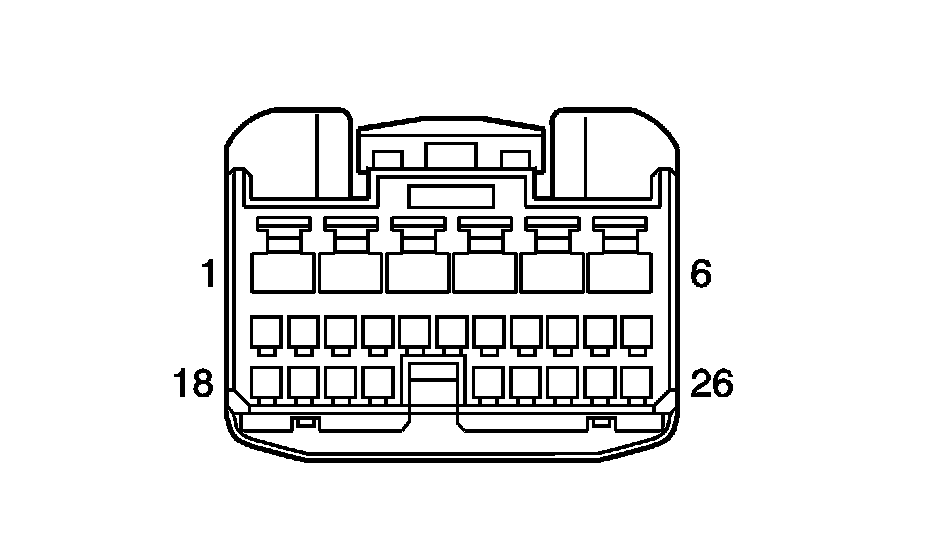

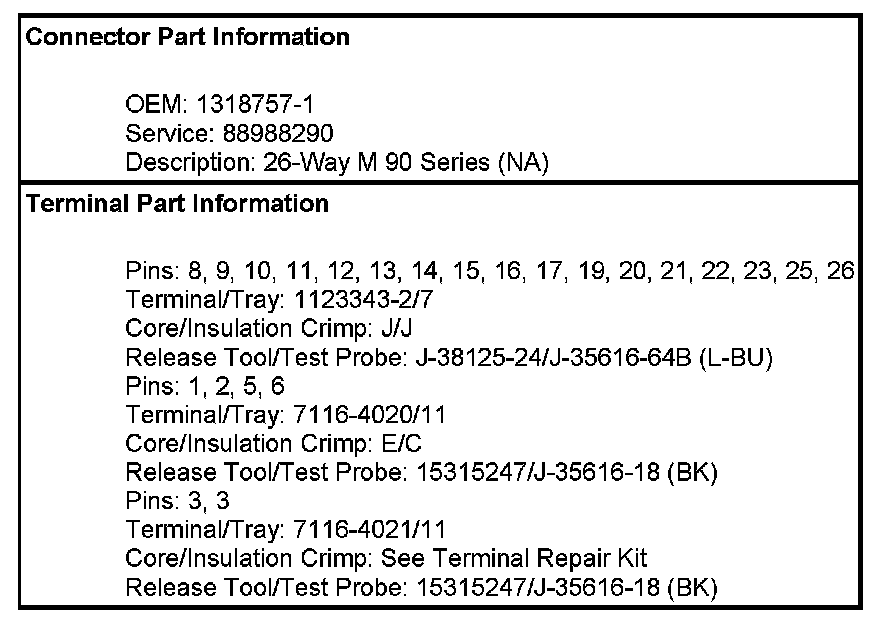

Instrument Panel Module (IPM) - C2

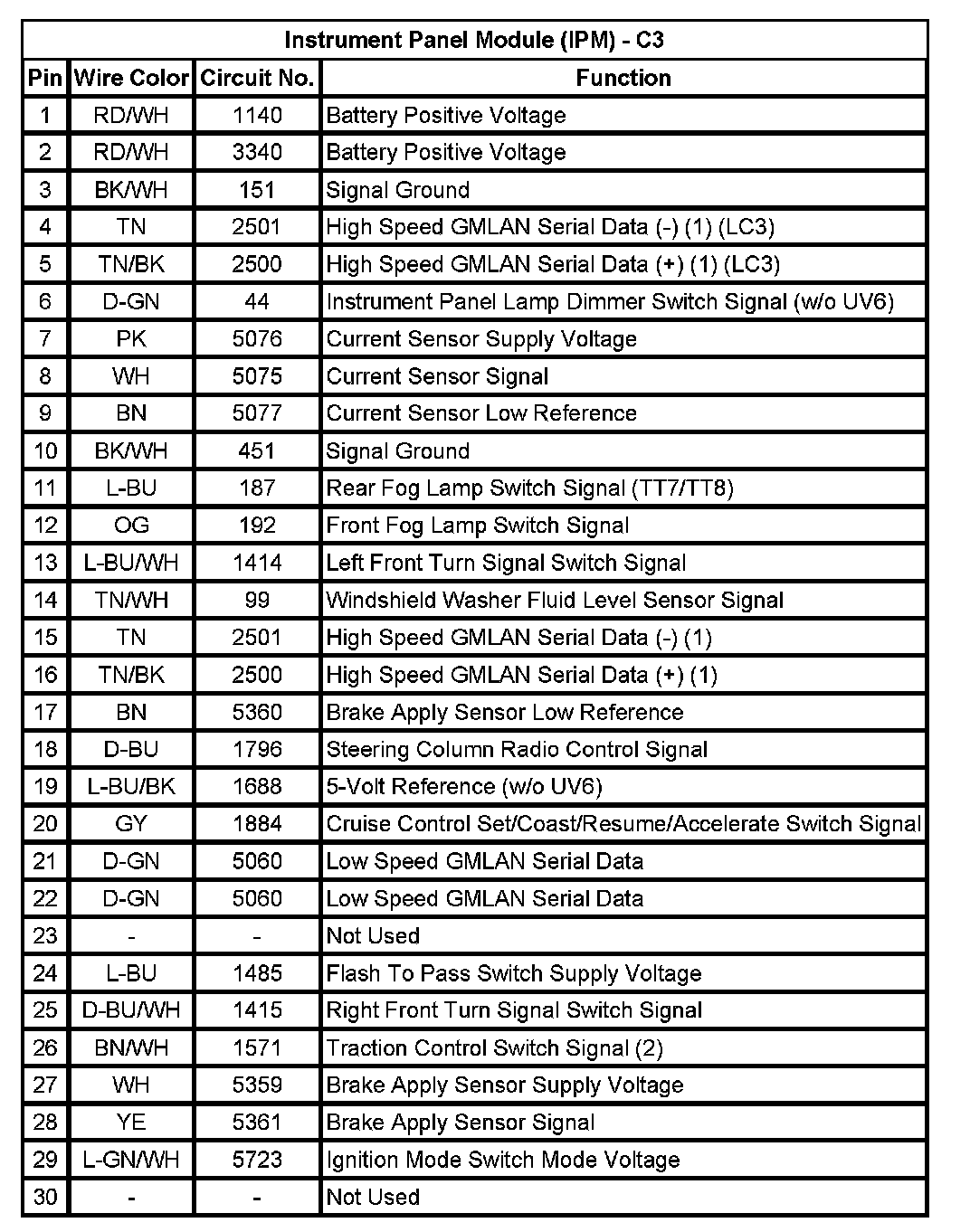

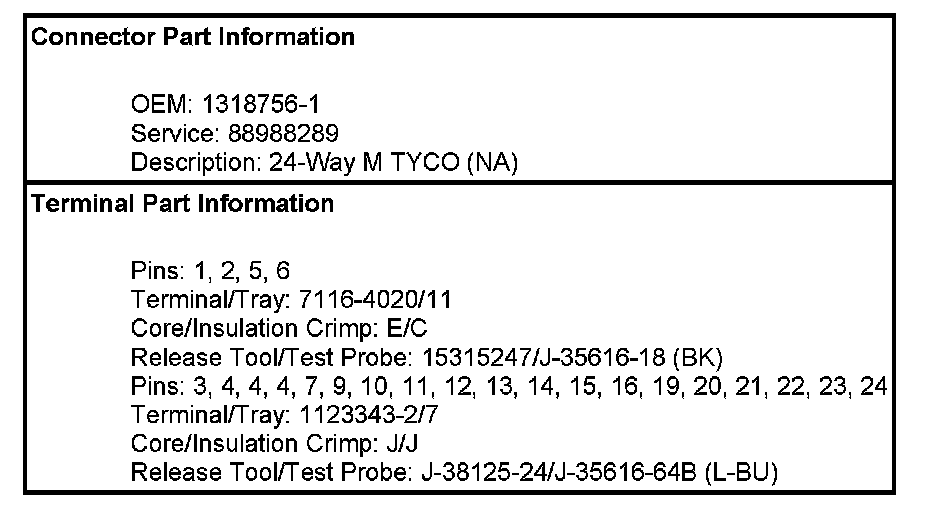

Instrument Panel Module (IPM) - C3

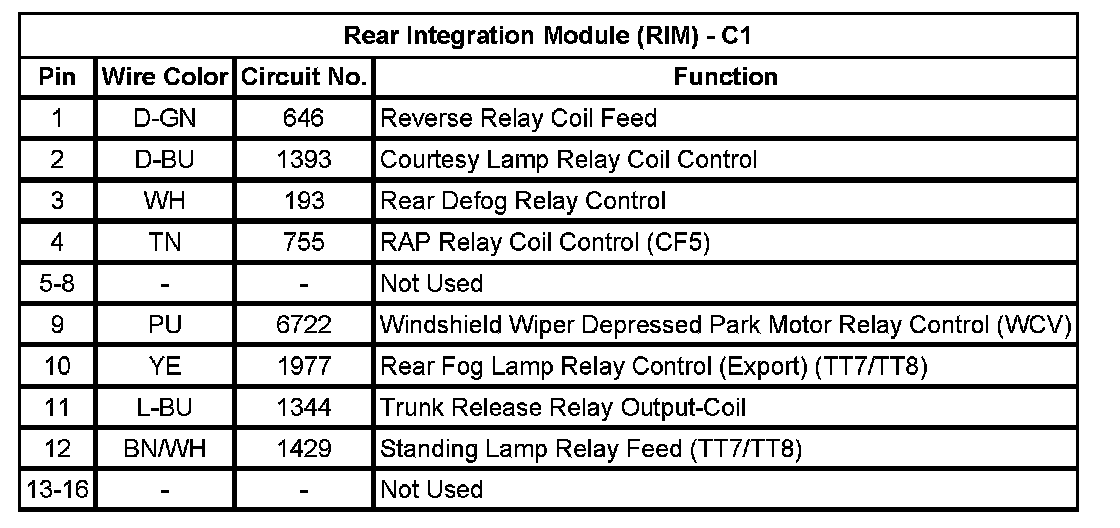

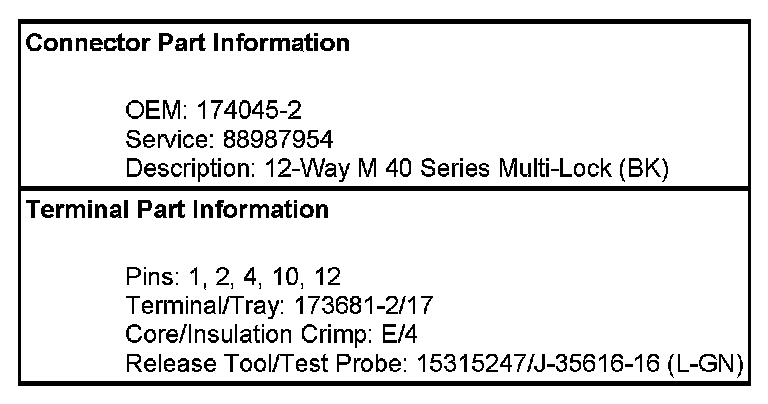

Rear Integration Module (RIM) - C1

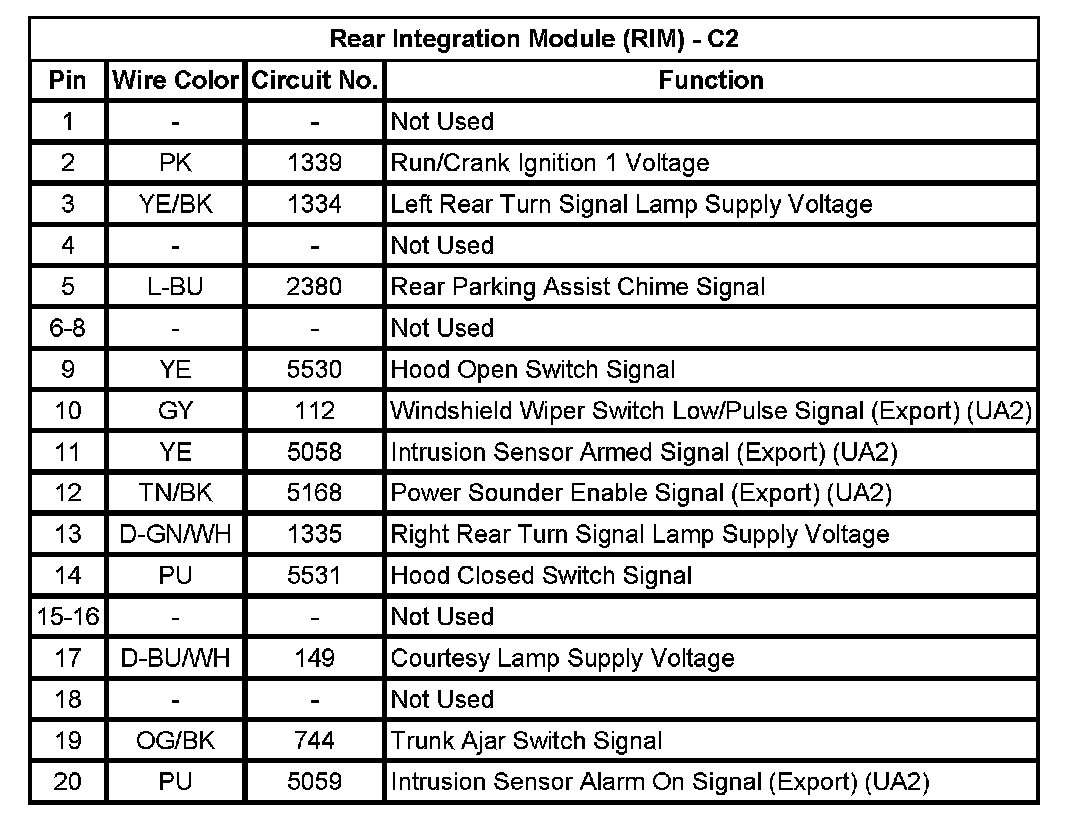

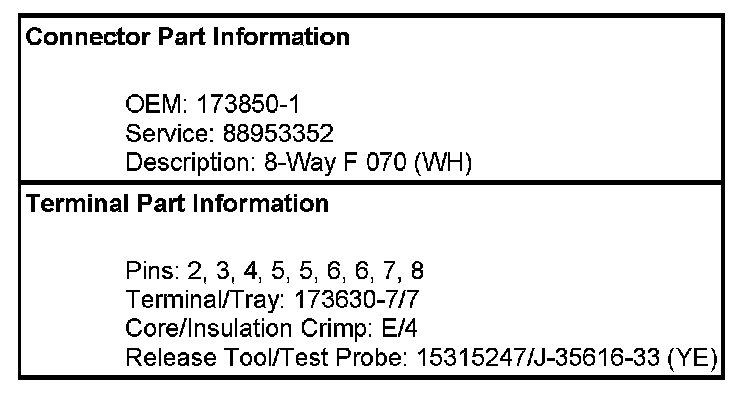

Rear Integration Module (RIM) - C2

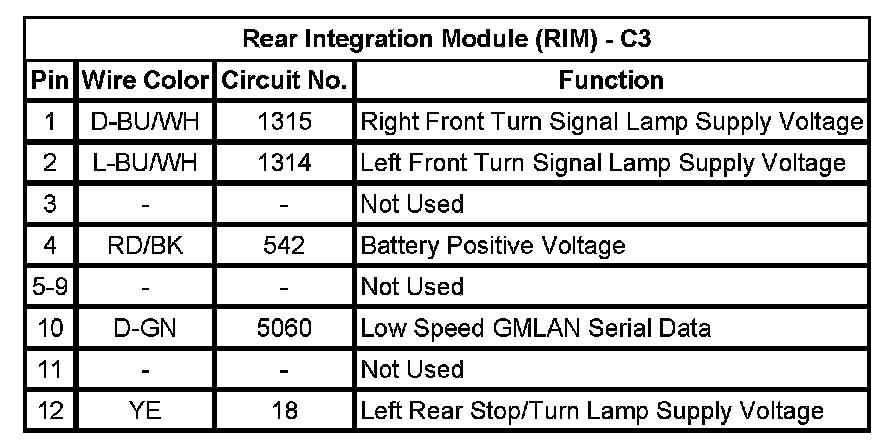

Rear Integration Module (RIM) - C3

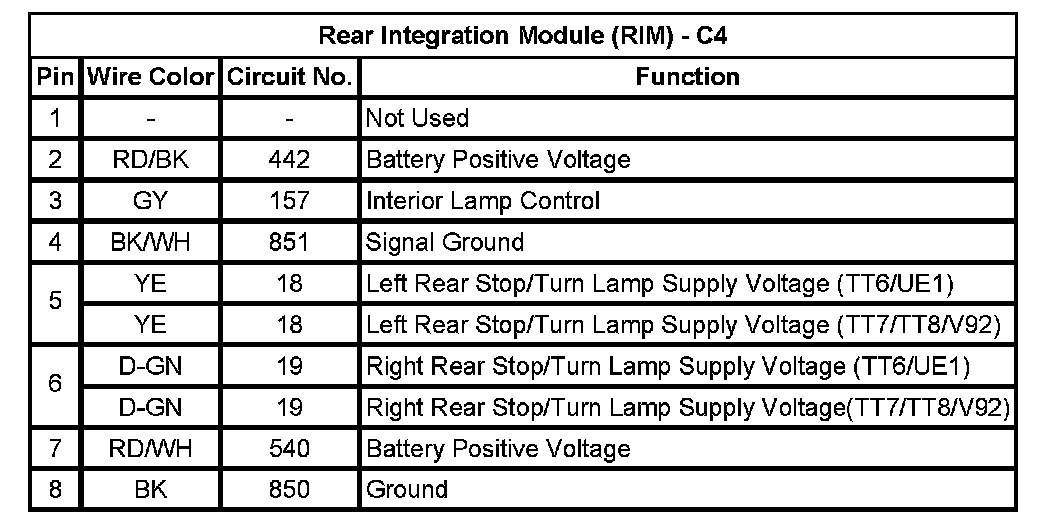

Rear Integration Module (RIM) - C4
