Tire Pressure Module
Tire Pressure Module

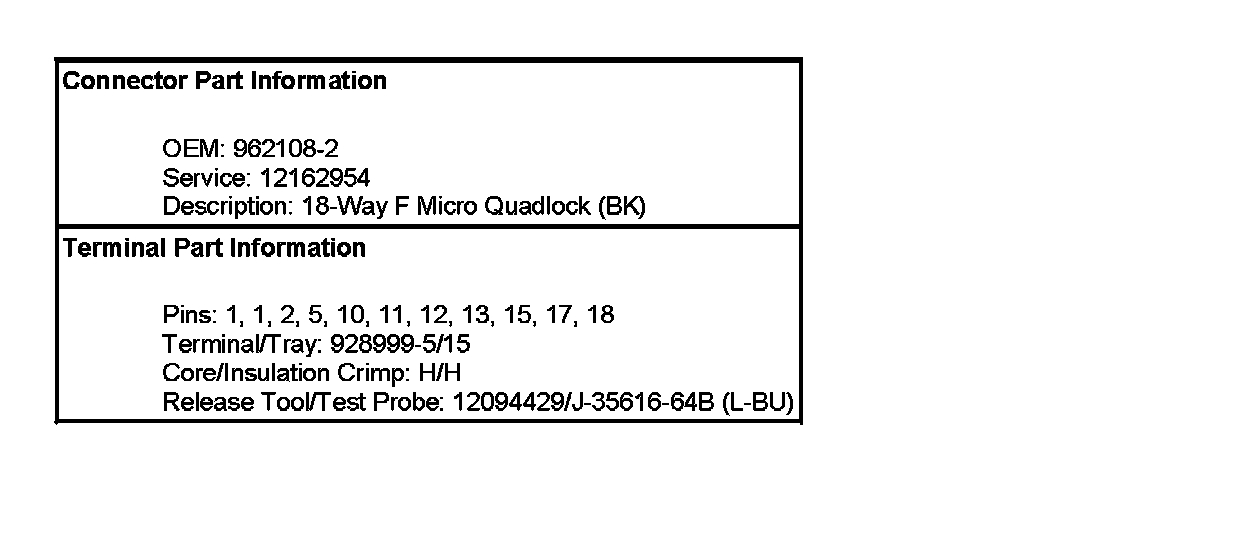

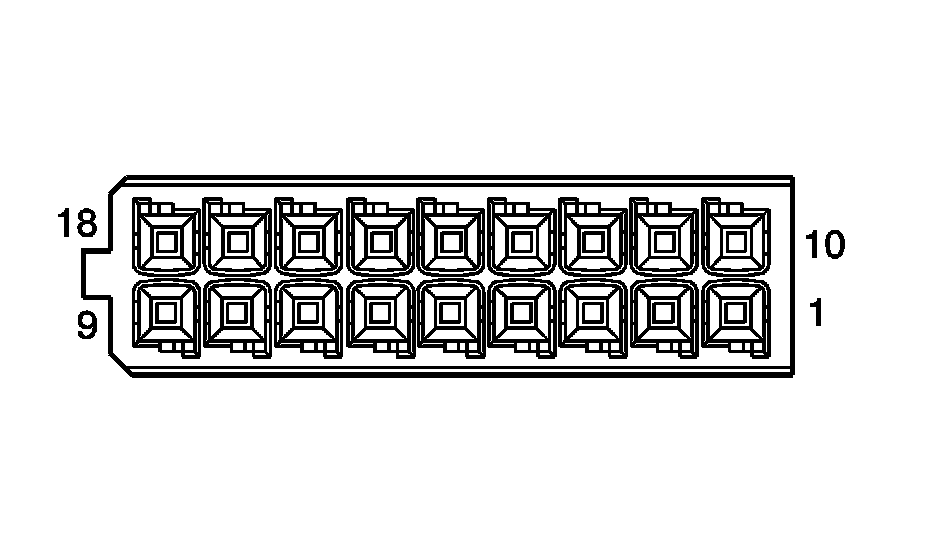

Tire Pressure Monitoring System Connector End Views

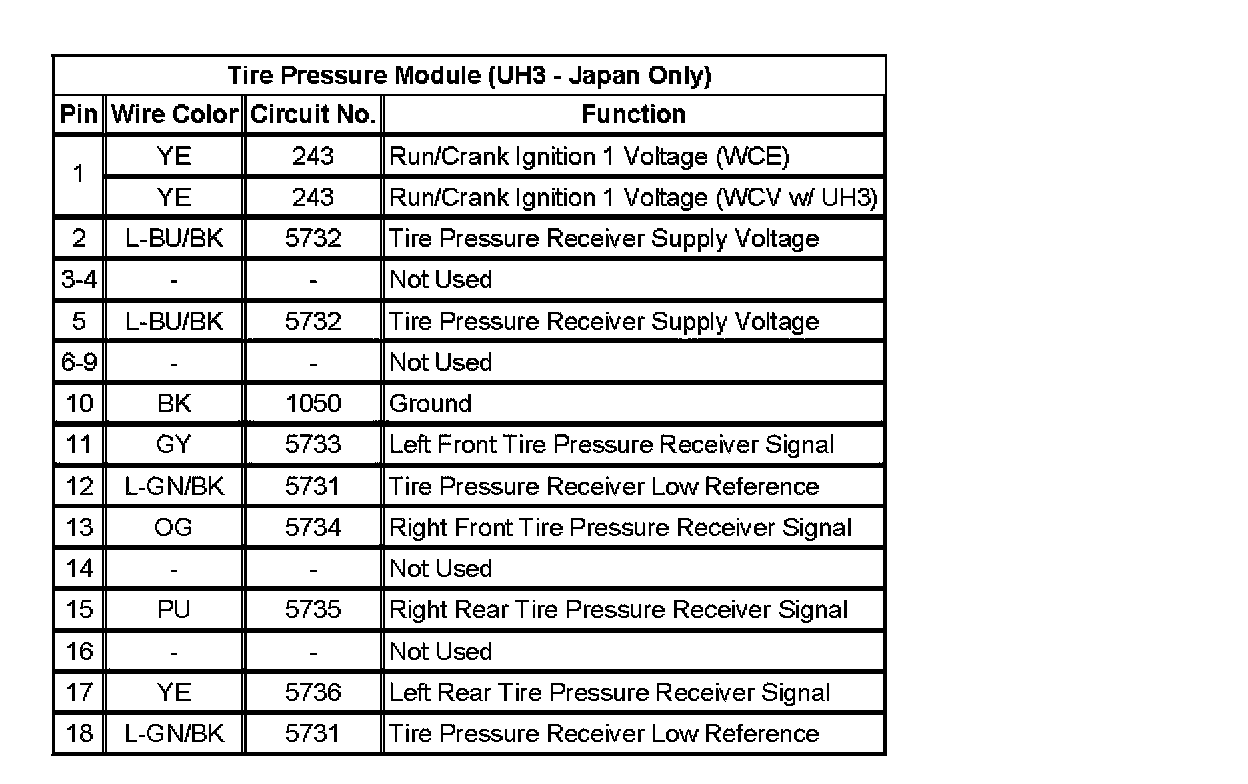

Tire Pressure Module (UH3 - Japan Only):
