Home >> Cadillac >> 2007 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch



Window Systems Connector End Views

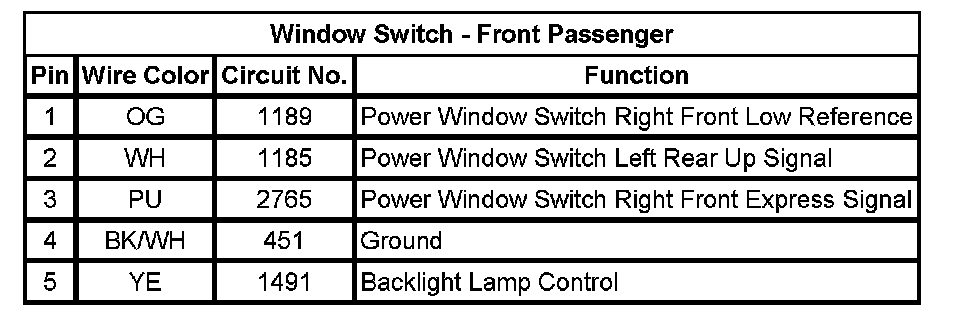

Window Switch - Front Passenger

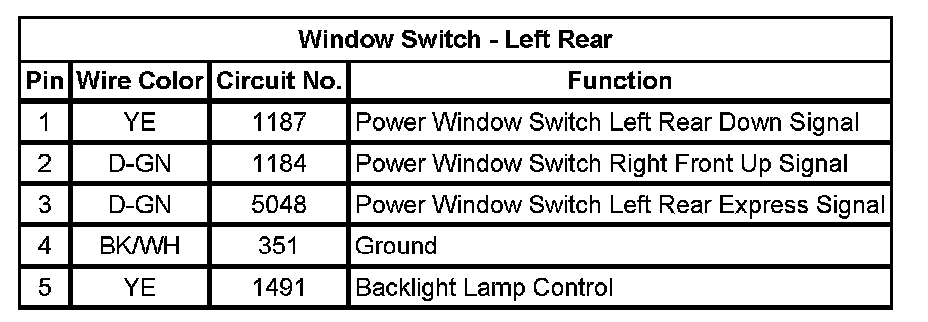

Window Switch - Left Rear

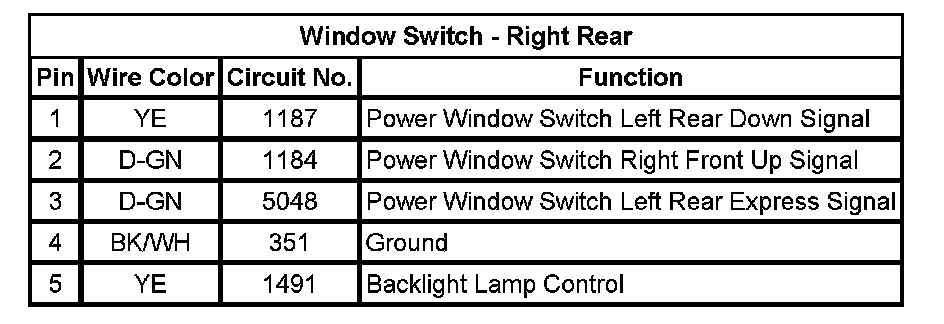

Window Switch - Right Rear
