Home >> Cadillac >> 2007 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module

Keyless Entry Module



Remote Function Connector End Views

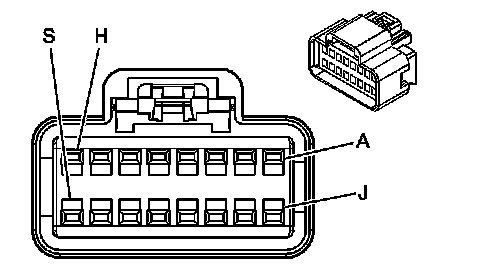

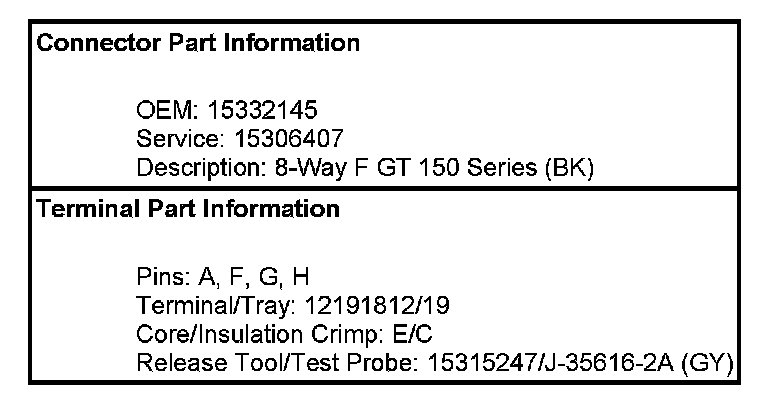

Remote Control Door Lock Receiver (RCDLR) - C1

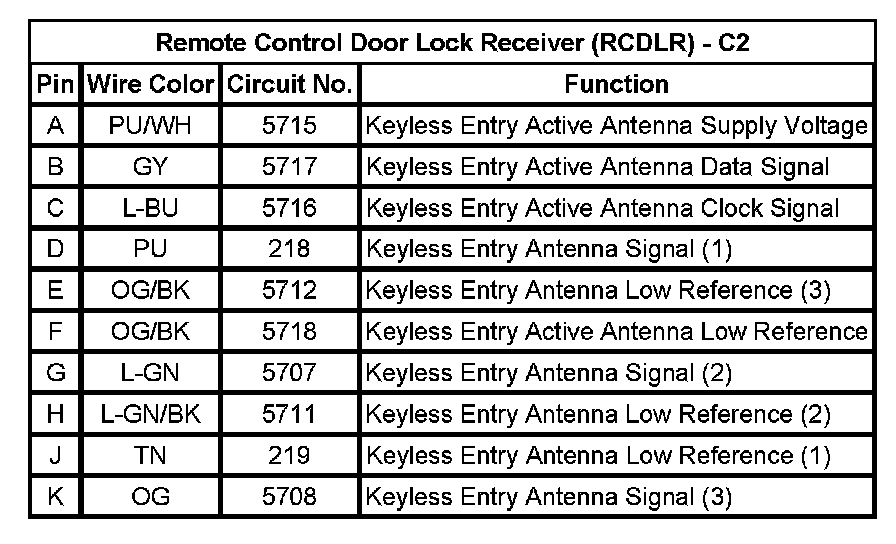

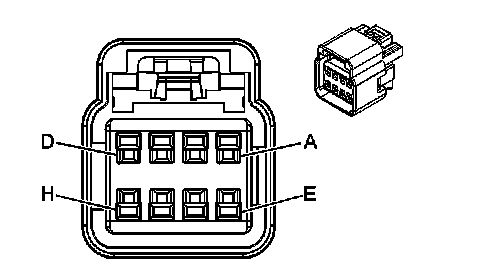

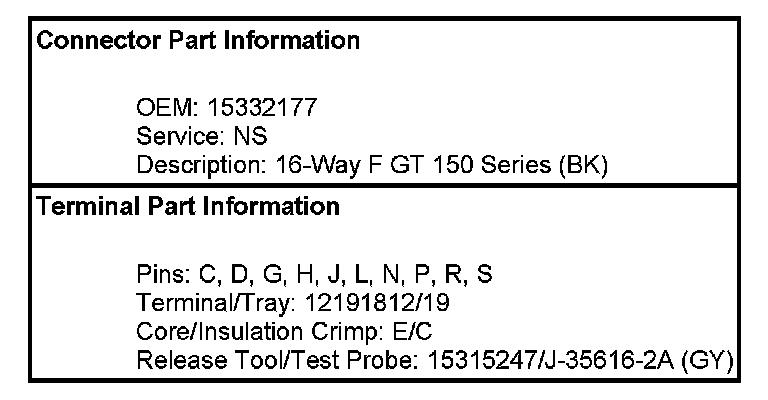

Remote Control Door Lock Receiver (RCDLR) - C2

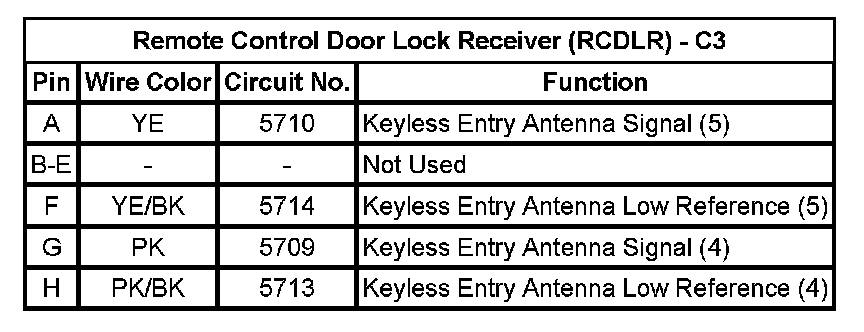

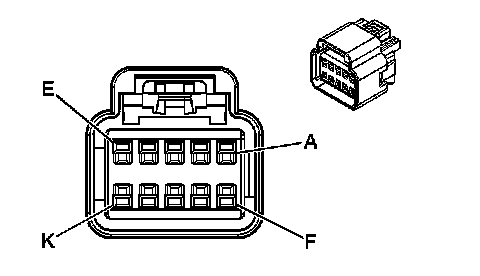

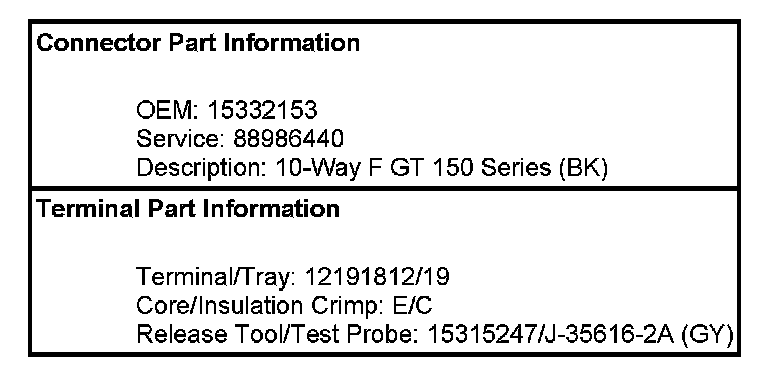

Remote Control Door Lock Receiver (RCDLR) - C3
