Home >> Cadillac >> 2007 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

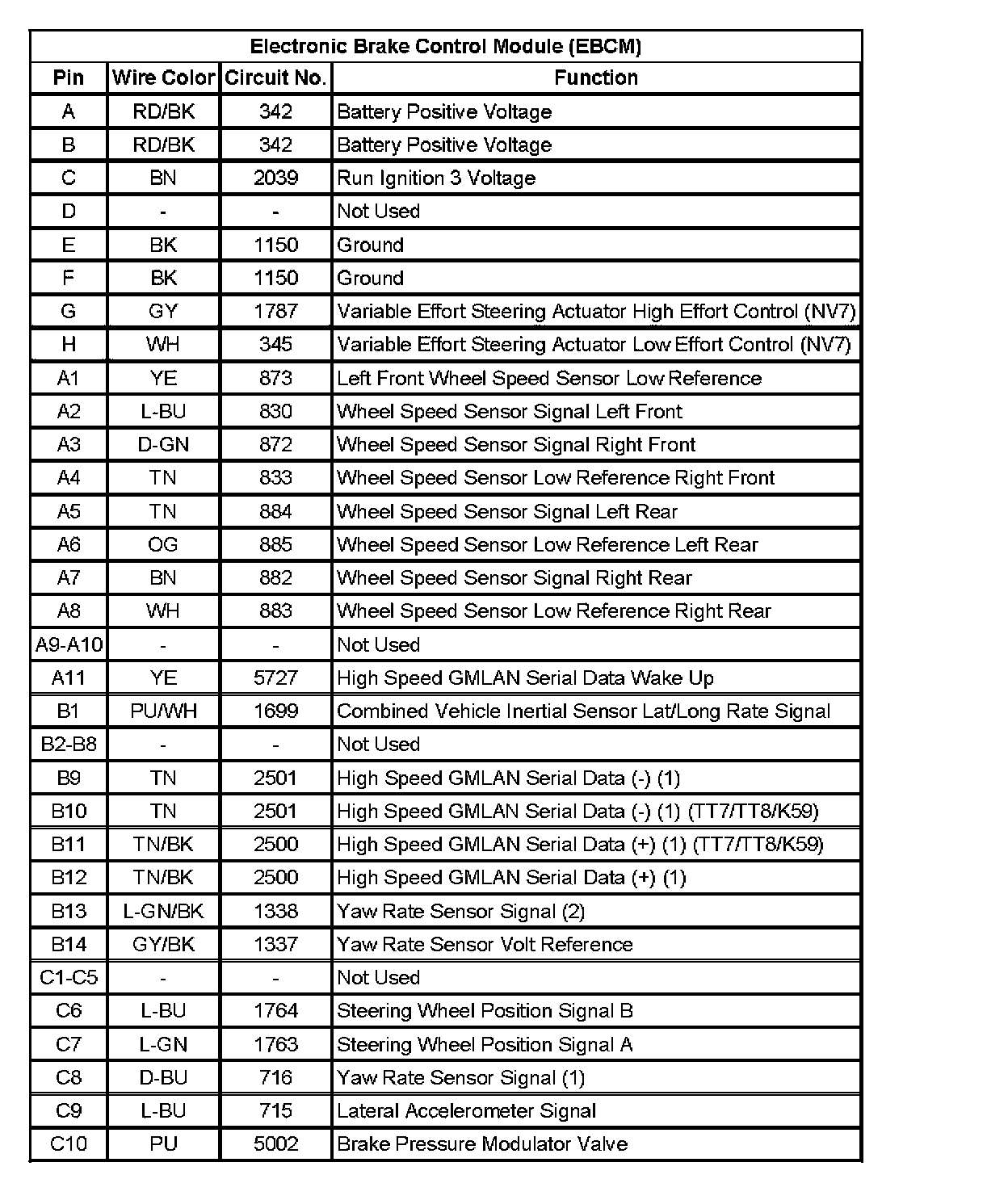

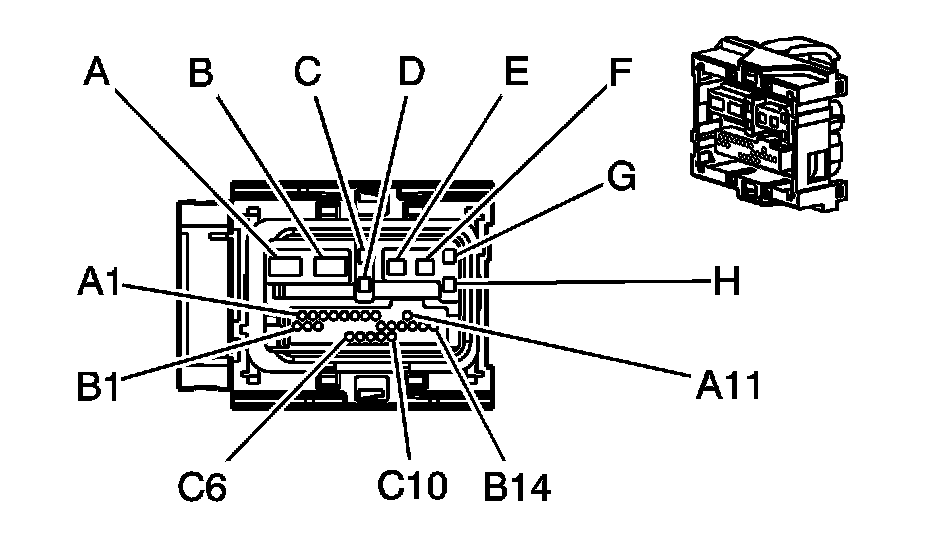

Electronic Brake Control Module (EBCM)

Electronic Brake Control Module (EBCM):
