Left Rear Door Module (LRDM)



Vehicle Access Connector End Views

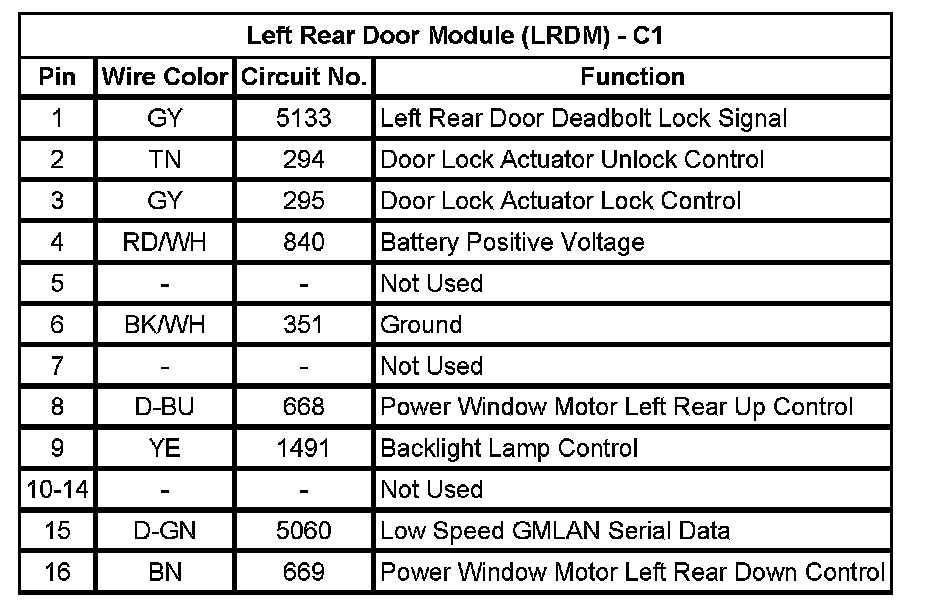

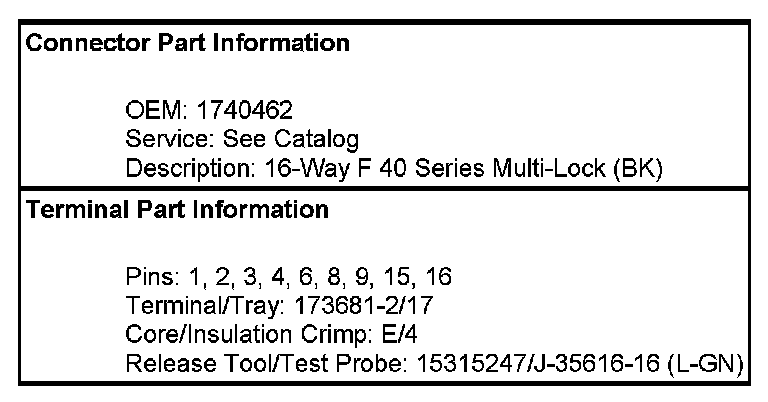

Left Rear Door Module (LRDM) - C1

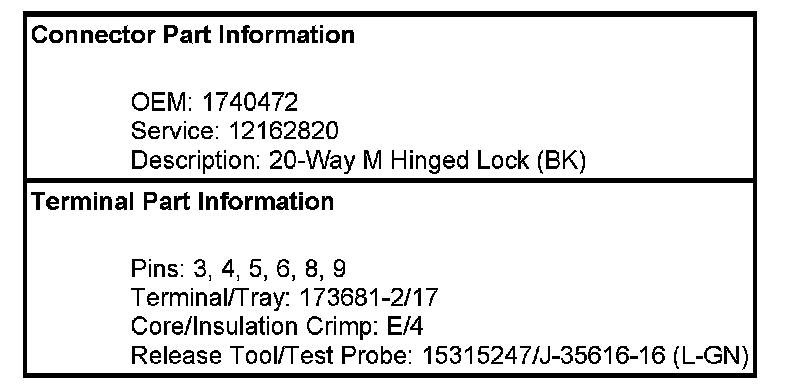

Left Rear Door Module (LRDM) - C2
