Front Passenger Door Module (FPDM)



Vehicle Access Connector End Views

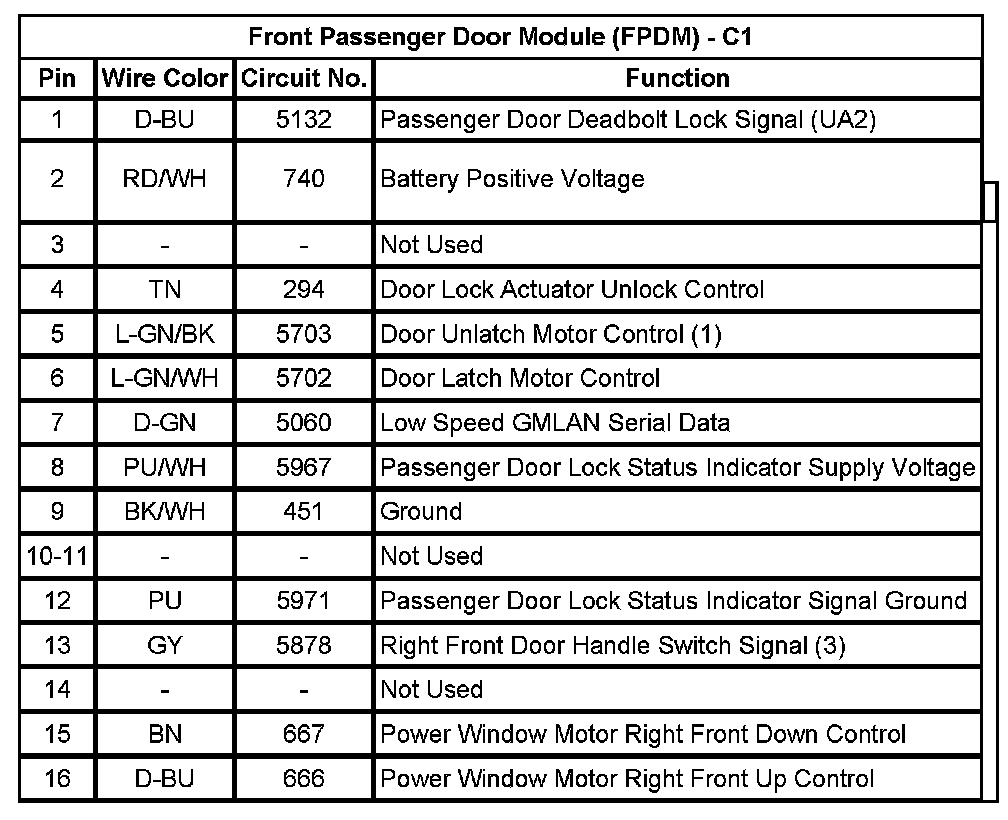

Front Passenger Door Module (FPDM) - C1

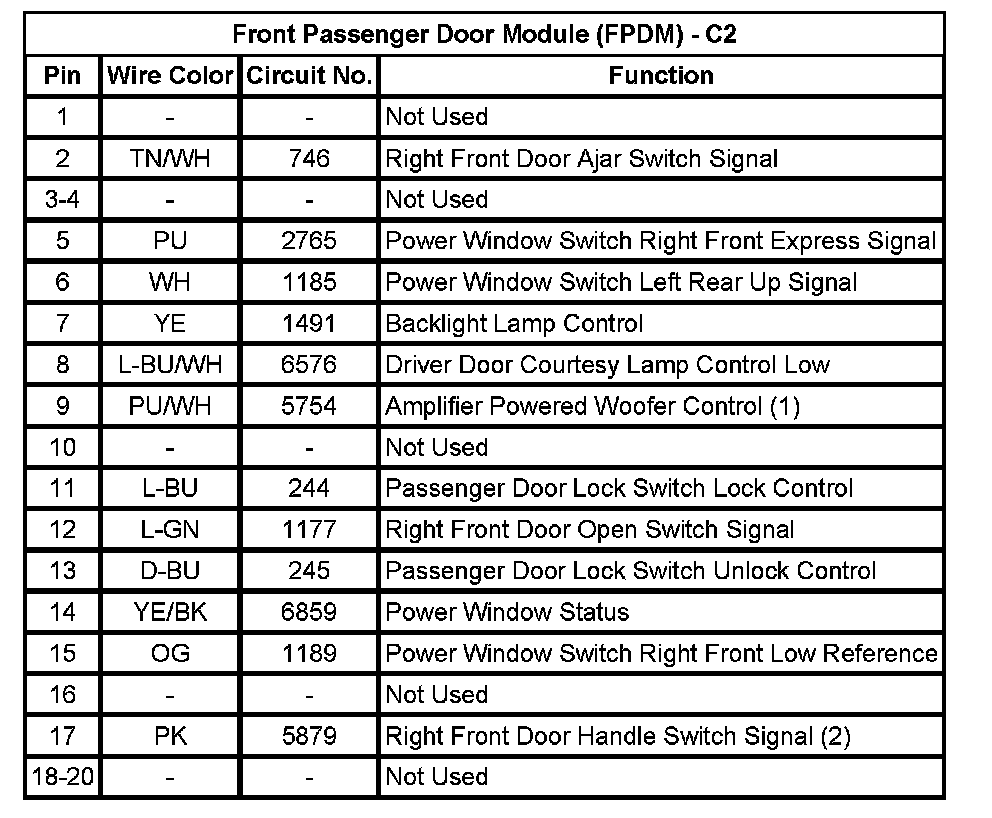

Front Passenger Door Module (FPDM) - C2

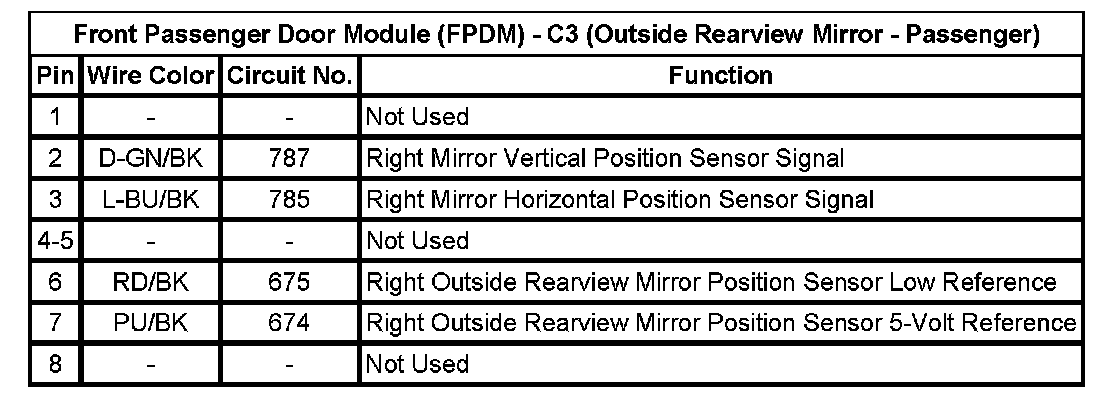

Front Passenger Door Module (FPDM) - C3

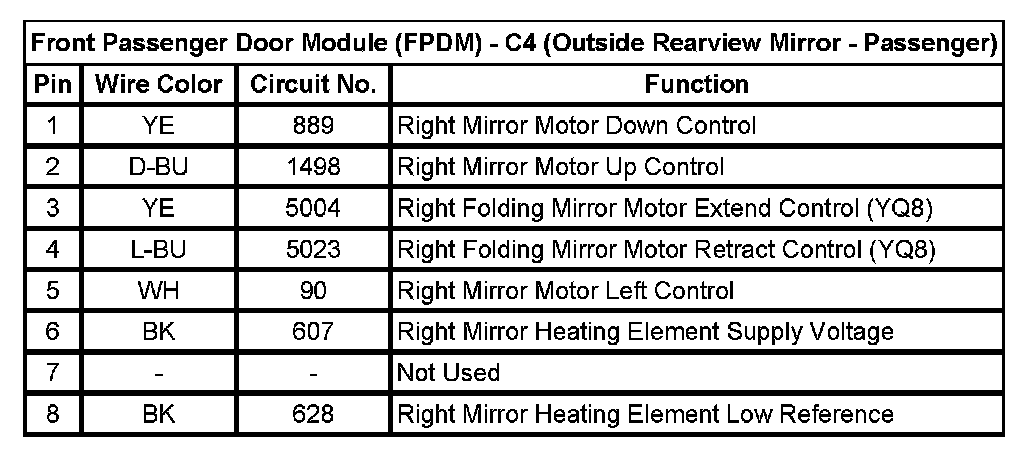

Front Passenger Door Module (FPDM) - C4
