Control Assembly, HVAC



HVAC Connector End Views

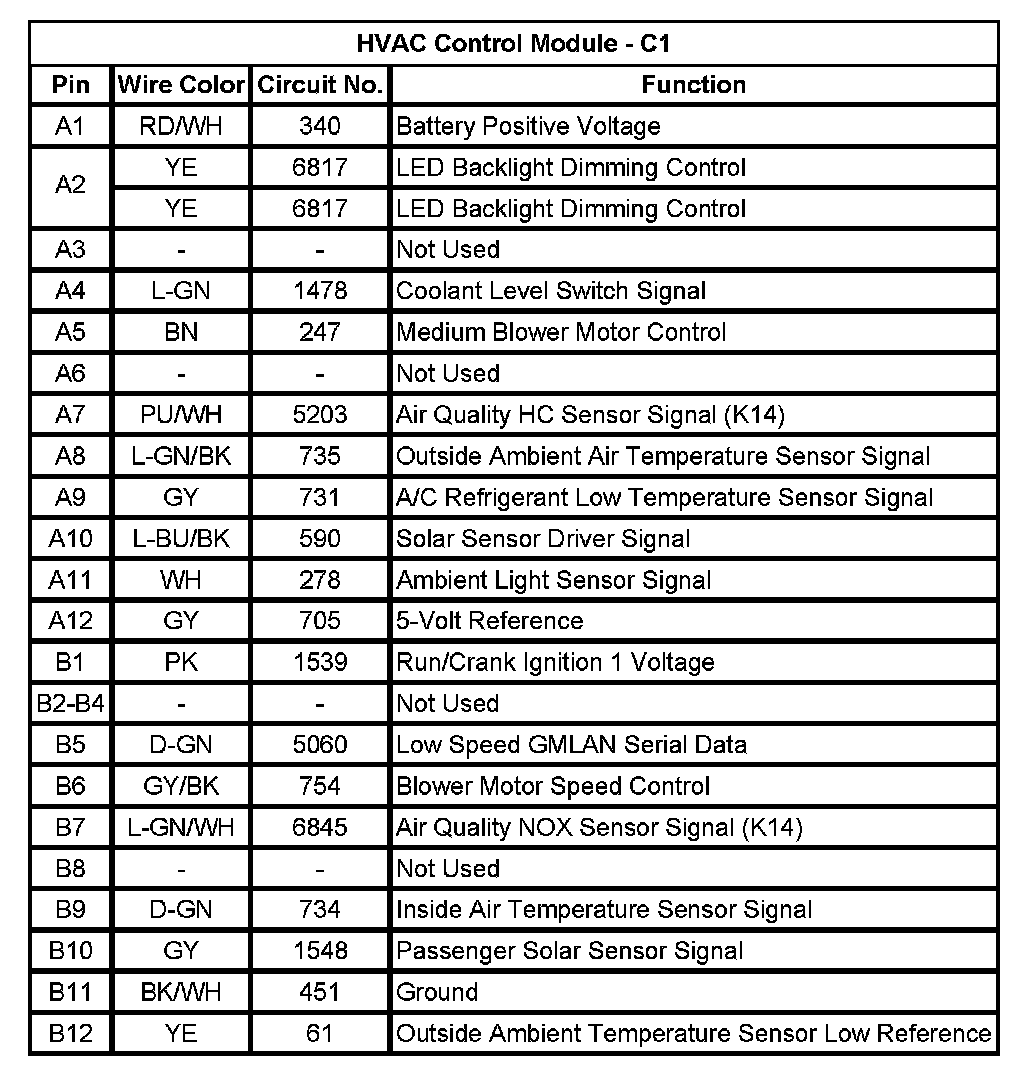

HVAC Control Module - C1

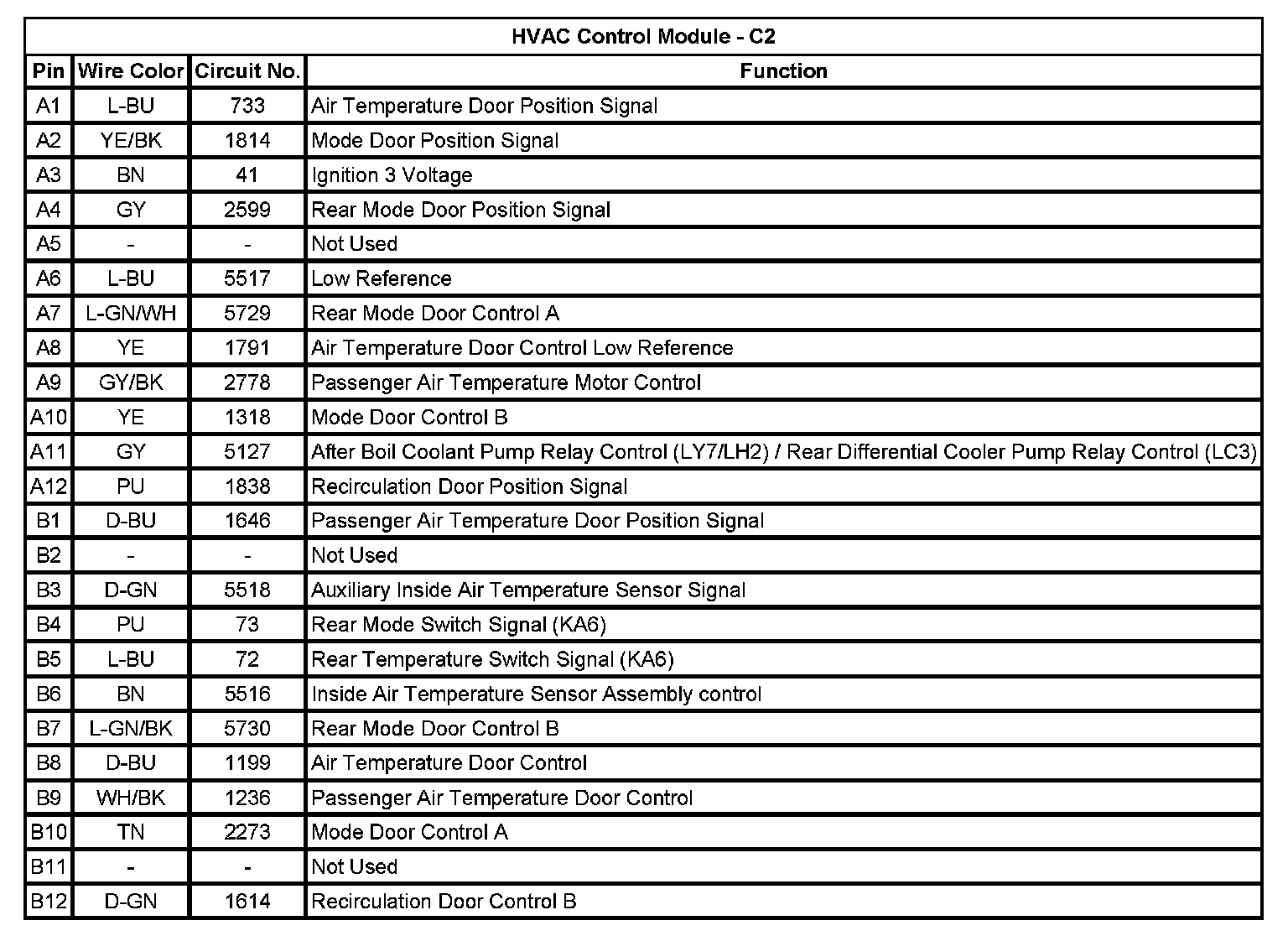

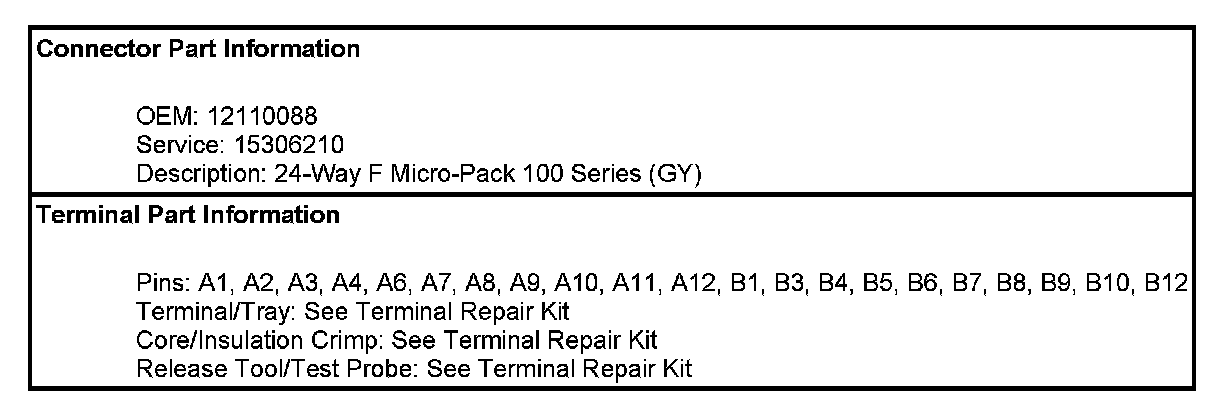

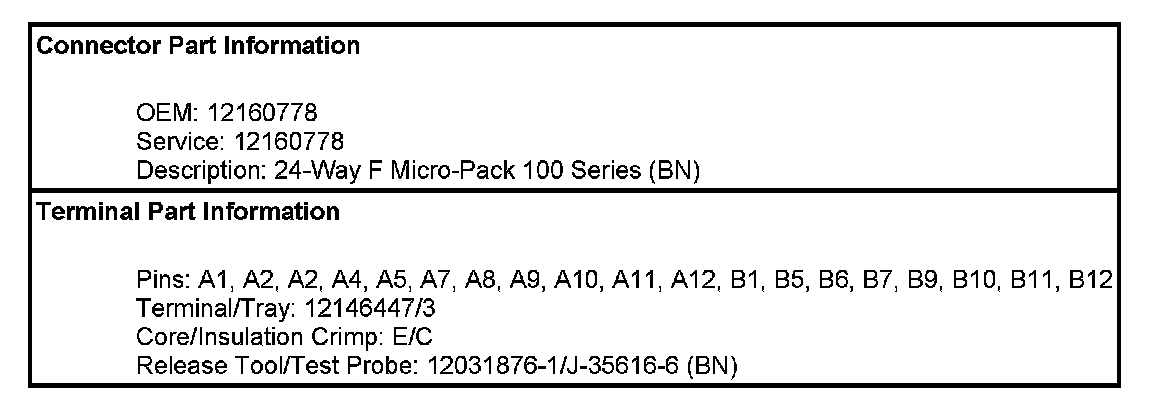

HVAC Control Module - C2

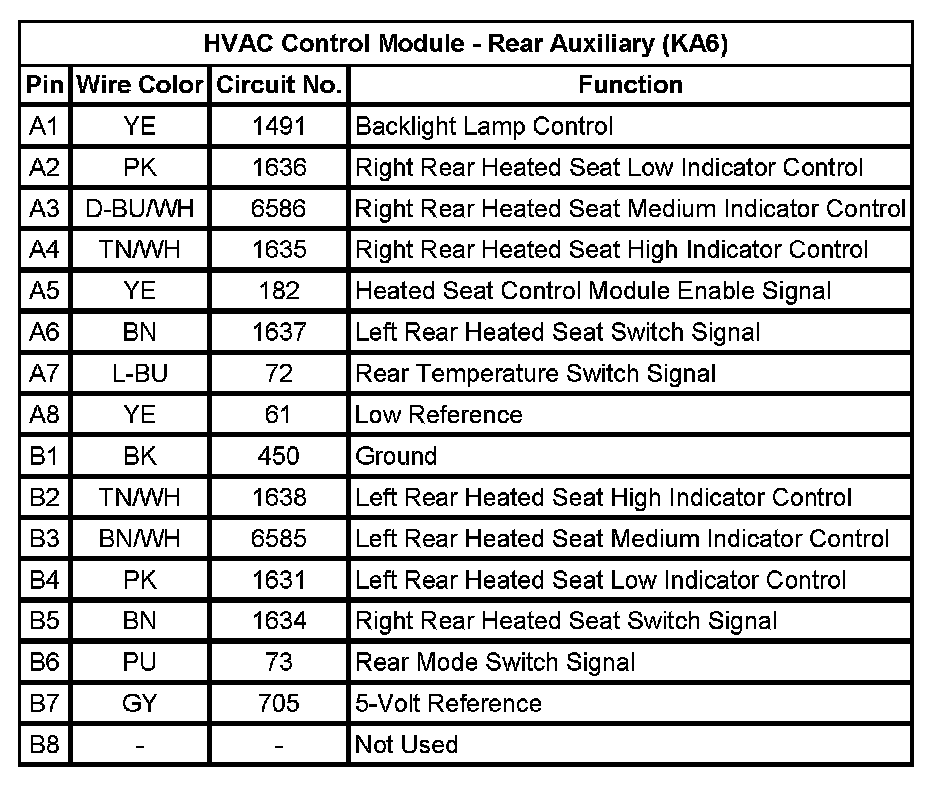

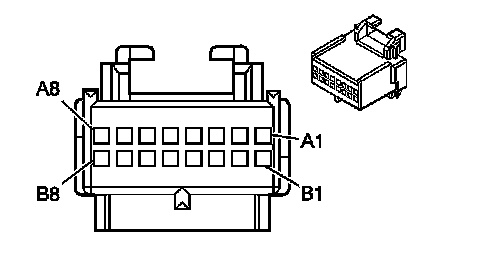

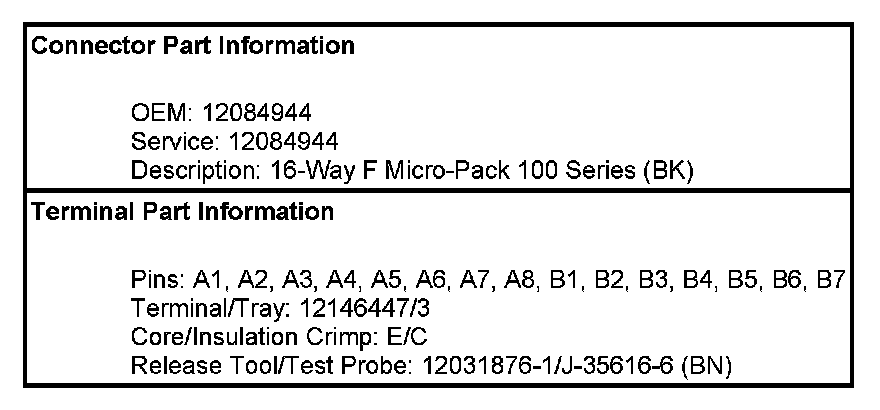

HVAC Control Module - Rear Auxiliary (KA6)
