Body Control Module: Locations

Instrument Panel/Center Console Component Views

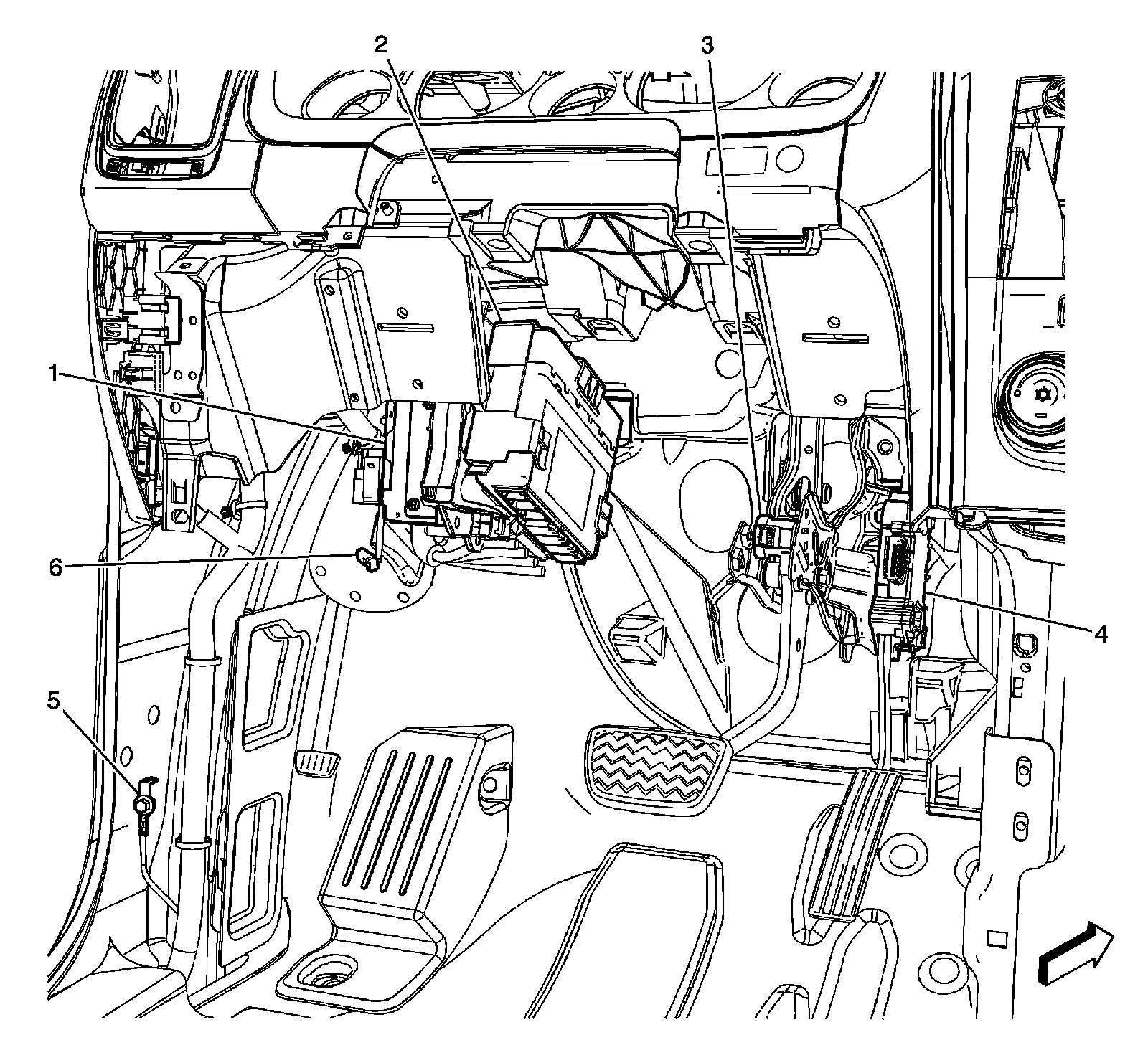

Below the Driver Side I/P




1 - Audio Amplifier (UQA or UQS)
2 - Body Control Module (BCM)
3 - Brake Pedal Position Sensor
4 - Accelerator Pedal Position (APP) Sensor
5 - G301
6 - Park Brake Switch
