Home >> Buick >> 2010 >> Enclave FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Distribution Module

Power Distribution Module




Component Connector End Views

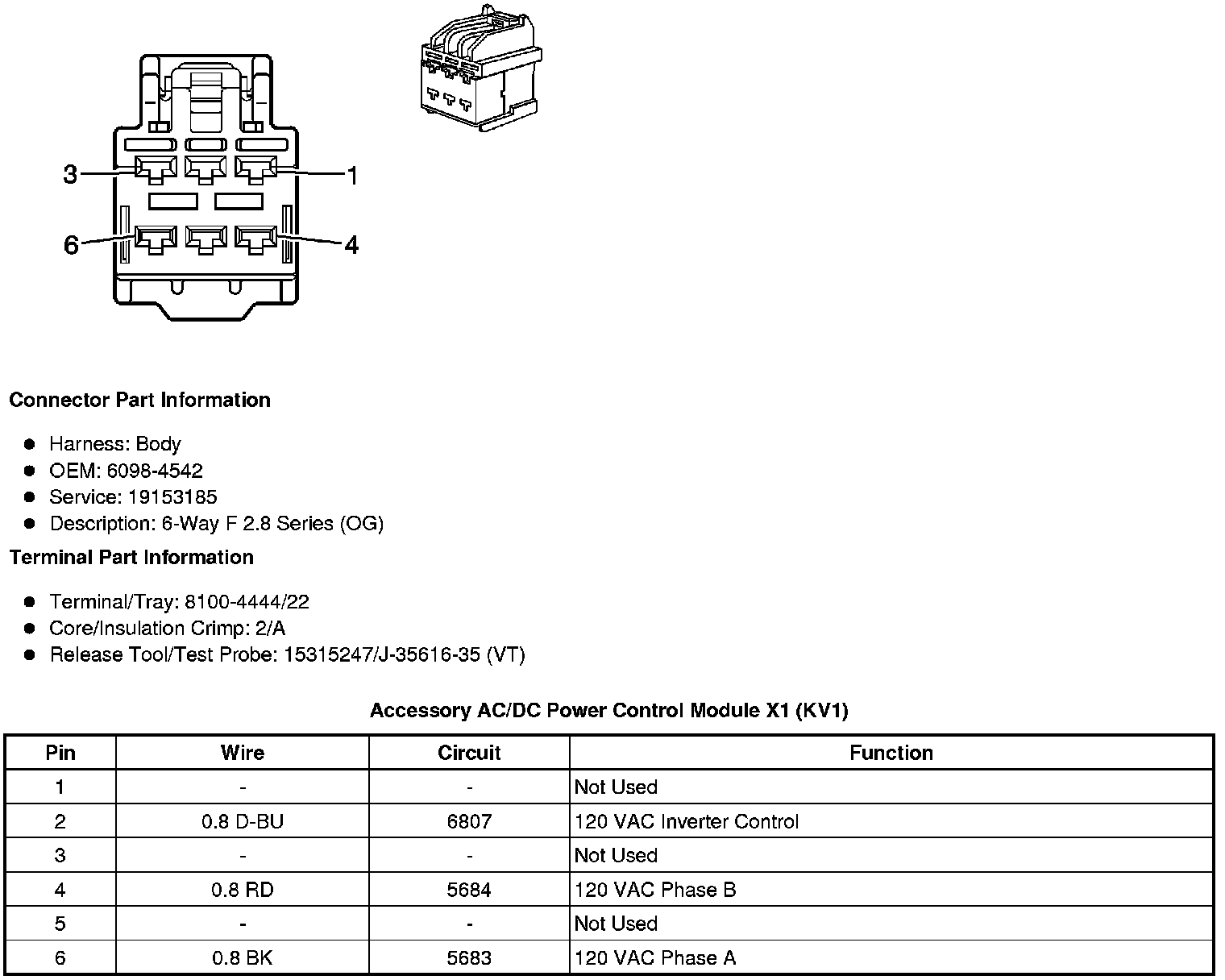

Accessory AC/DC Power Control Module X1 (KV1)

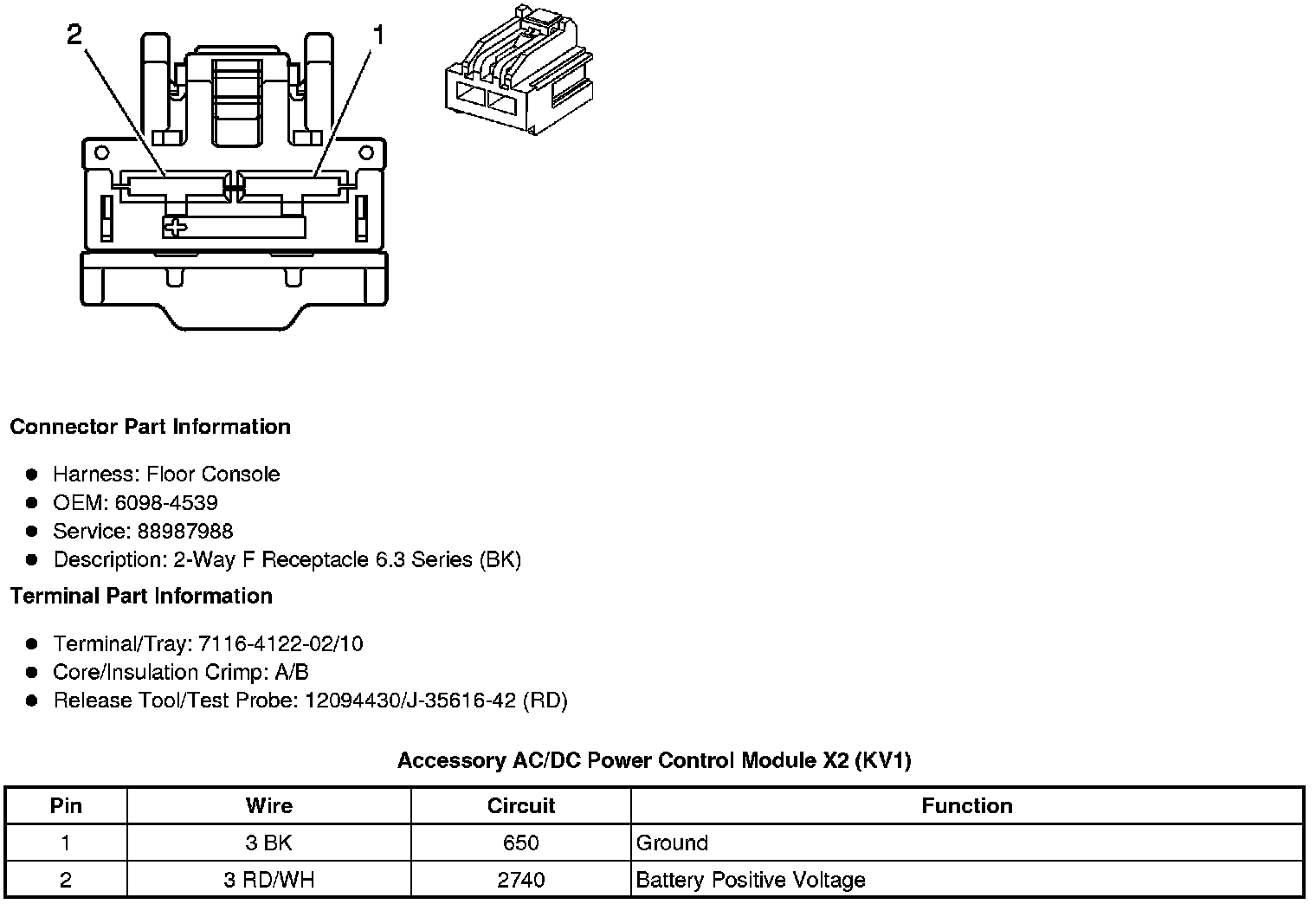

Accessory AC/DC Power Control Module X2 (KV1)
