Control Module HVAC

Component Connector End Views

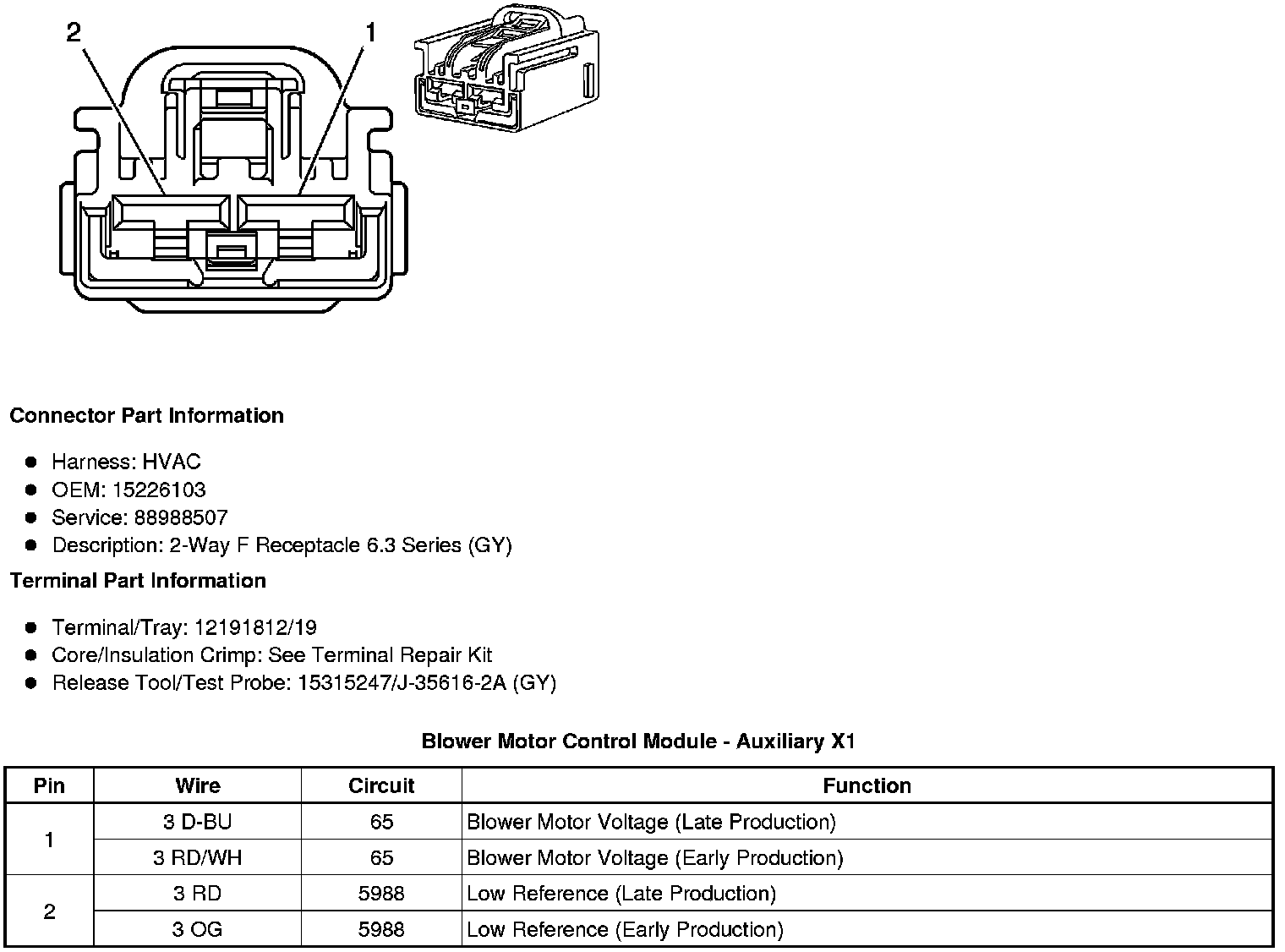

Blower Motor Control Module - Auxiliary X1

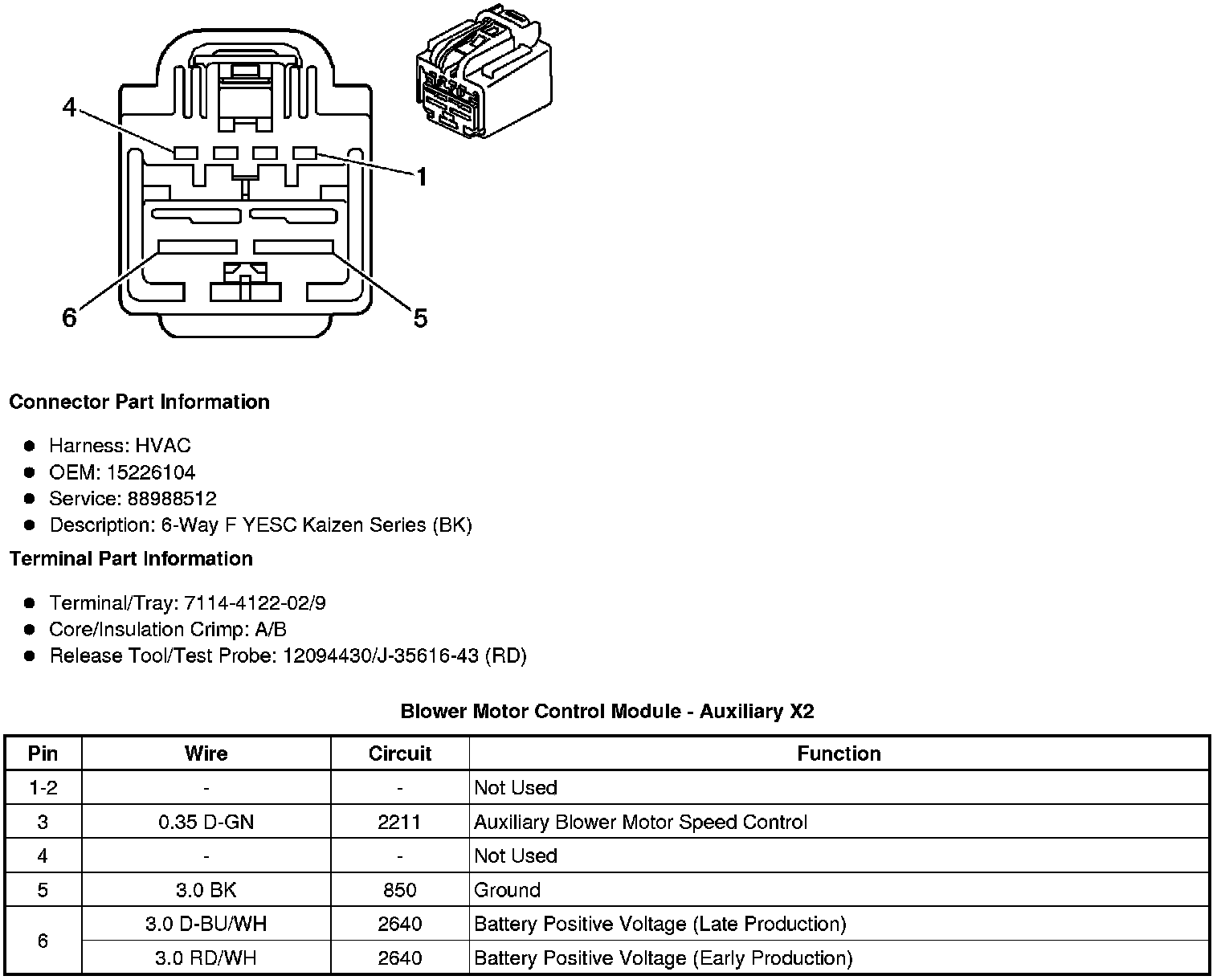

Blower Motor Control Module - Auxiliary X2
