Memory Positioning Module: Diagrams
Component Connector End Views

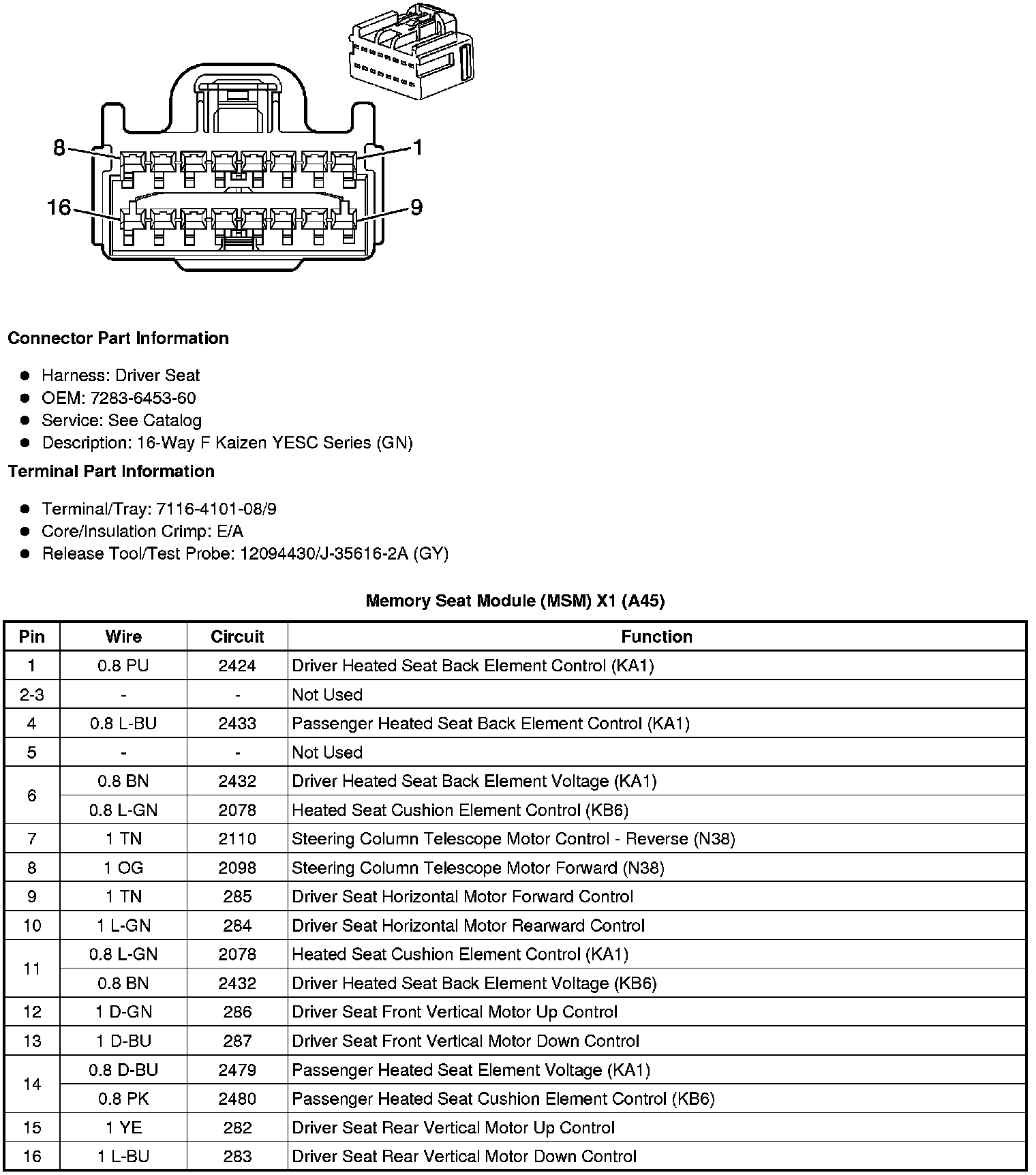

Memory Seat Module (MSM) X1 (A45)

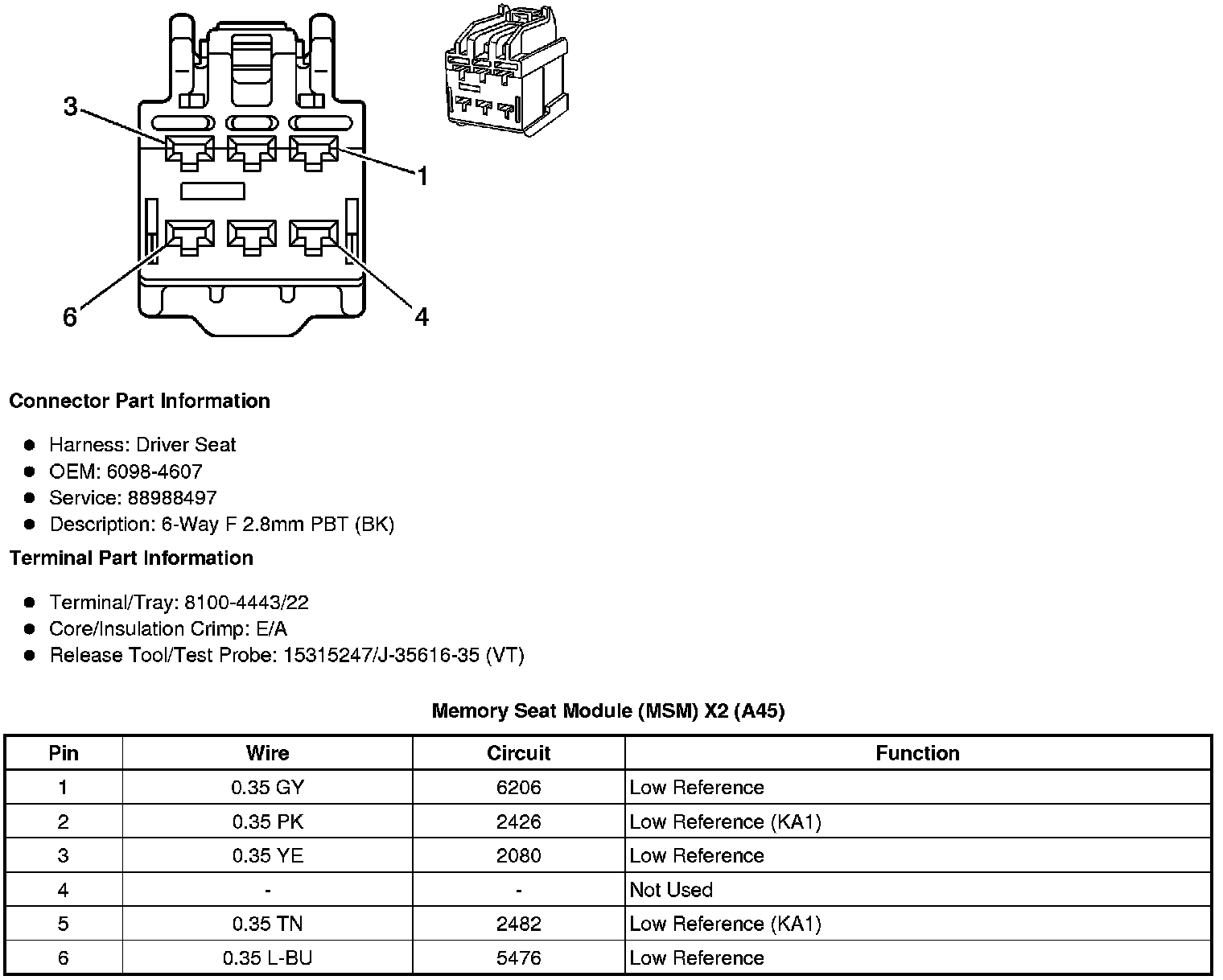

Memory Seat Module (MSM) X2 (A45)

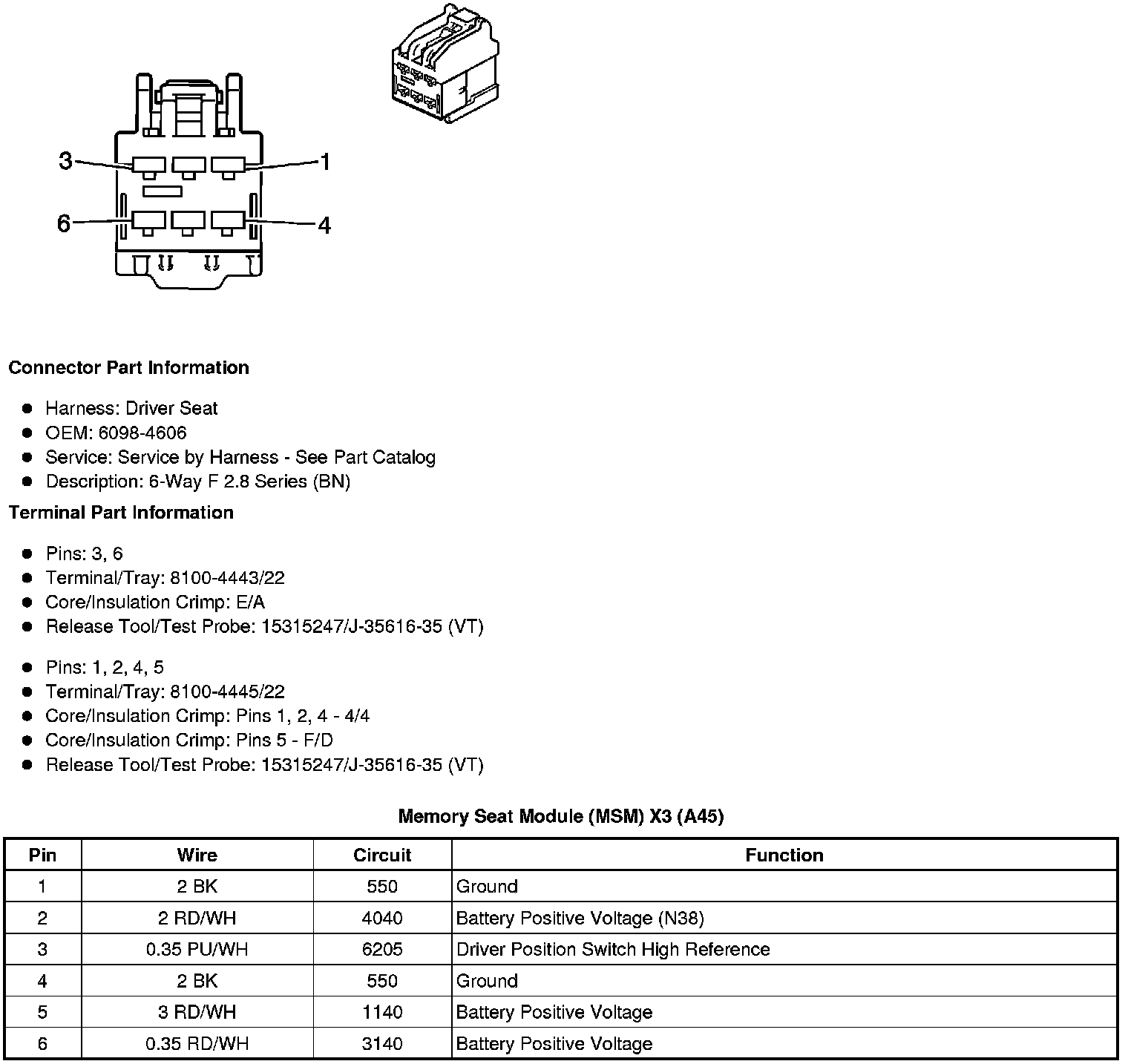

Memory Seat Module X3 (MSM) (A45)

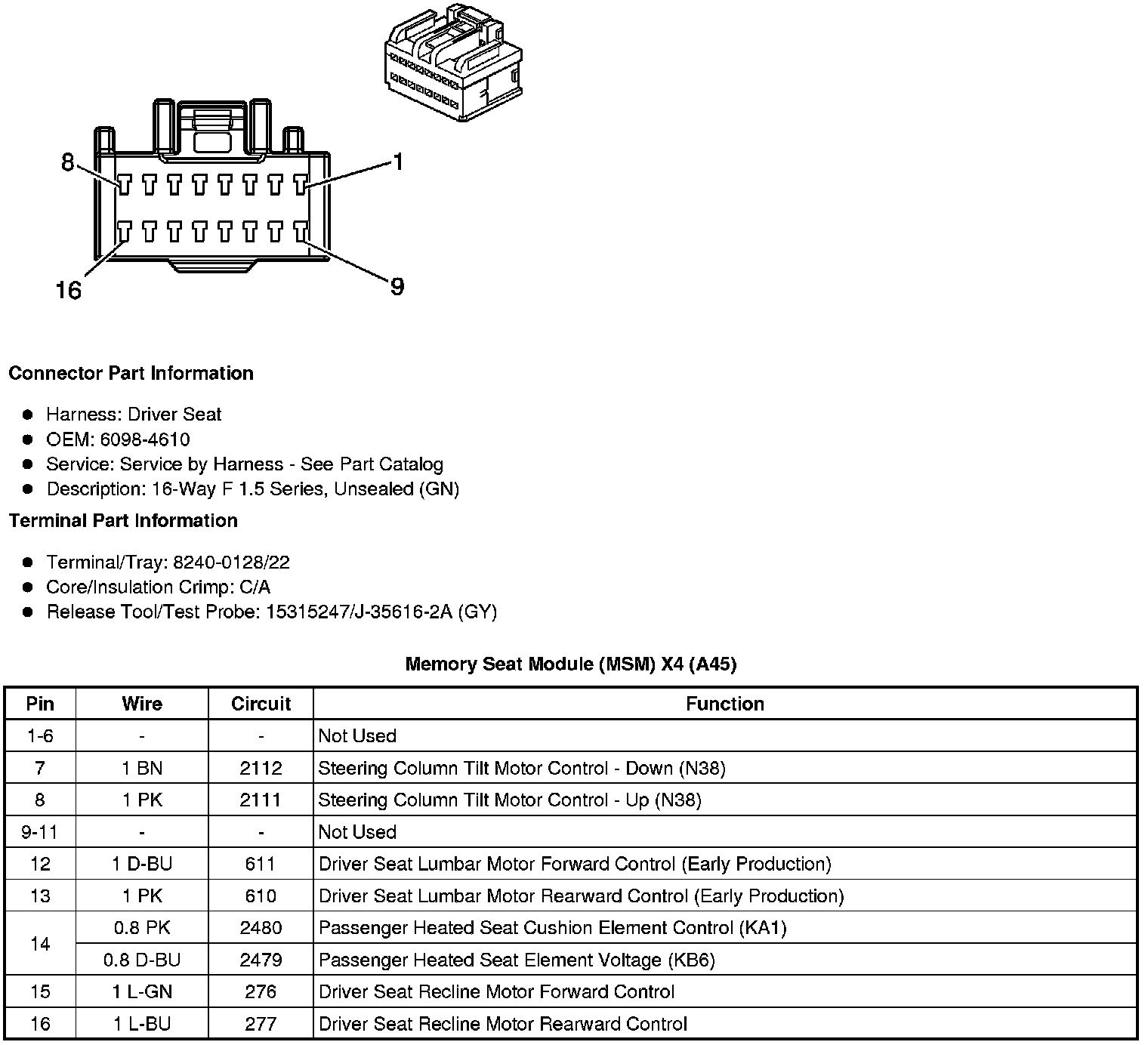

Memory Seat Module (MSM) X4 (A45)

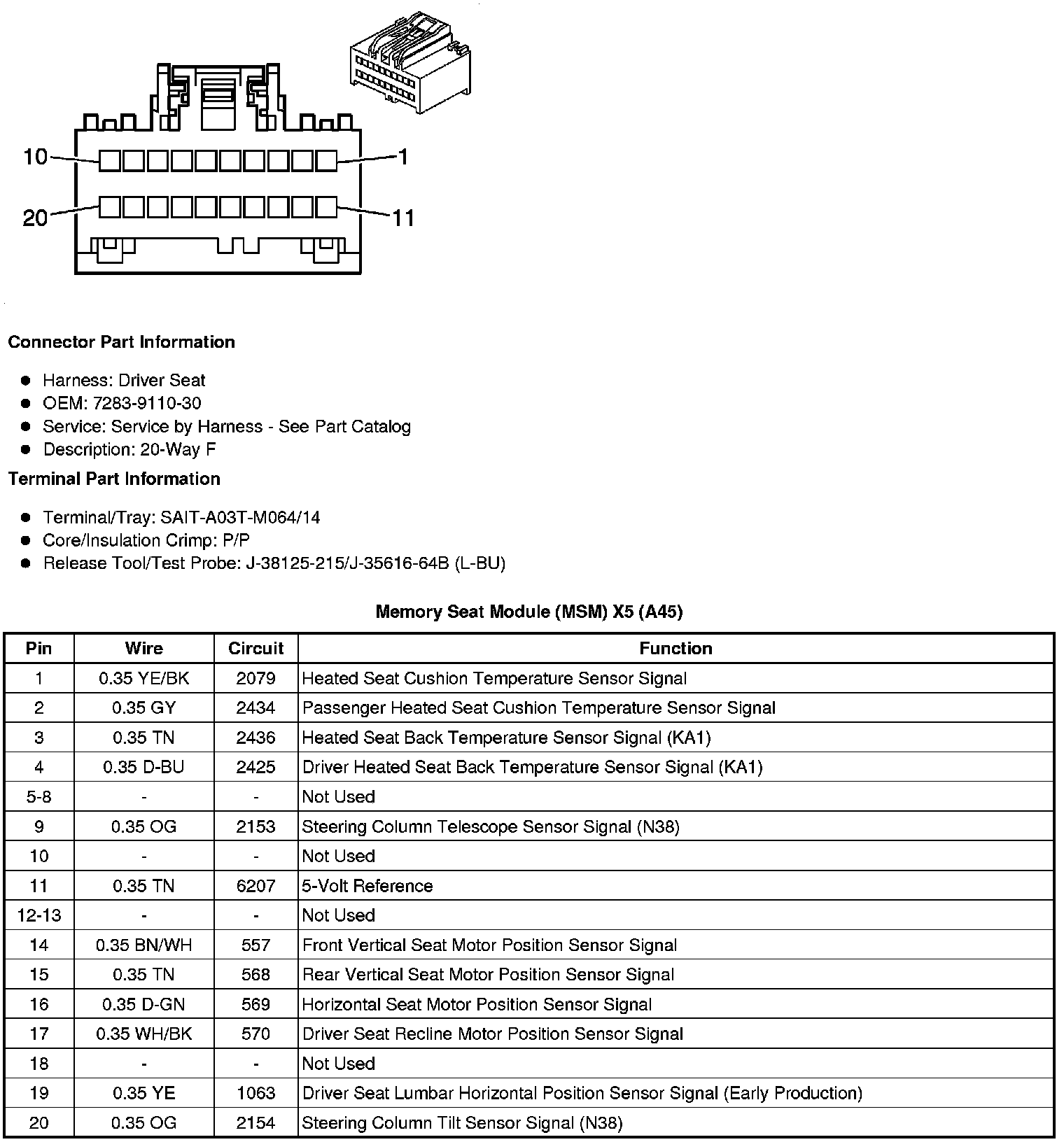

Memory Seat Module (MSM) X5 (A45)

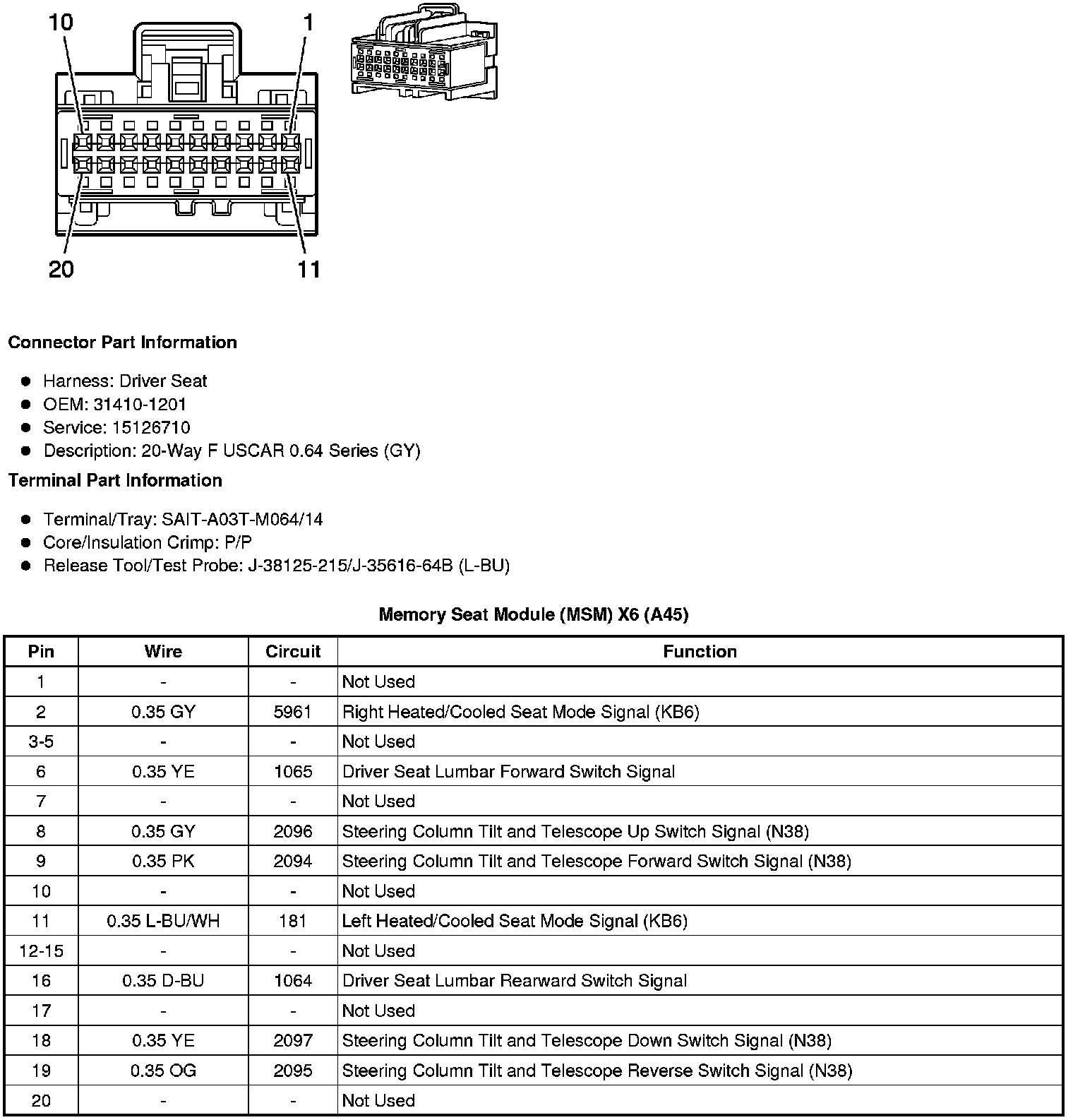

Memory Seat Module (MSM) X6 (A45)

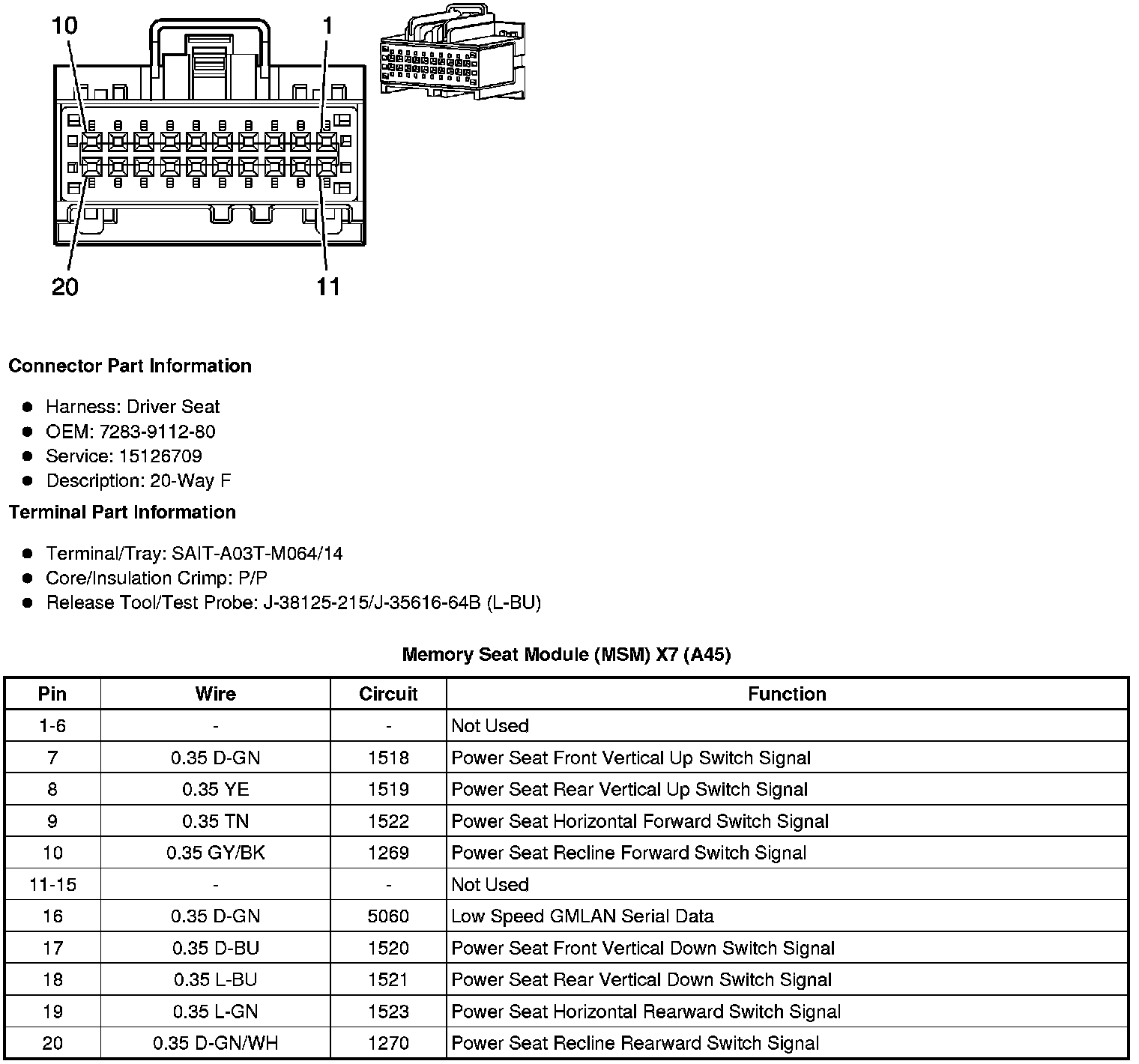

Memory Seat Module (MSM) X7 (A45)
