Home >> Buick >> 1983 >> Electra V6-252 4.1L >> Repair and Diagnosis >> Starting and Charging >> Specifications

Starting and Charging: Specifications

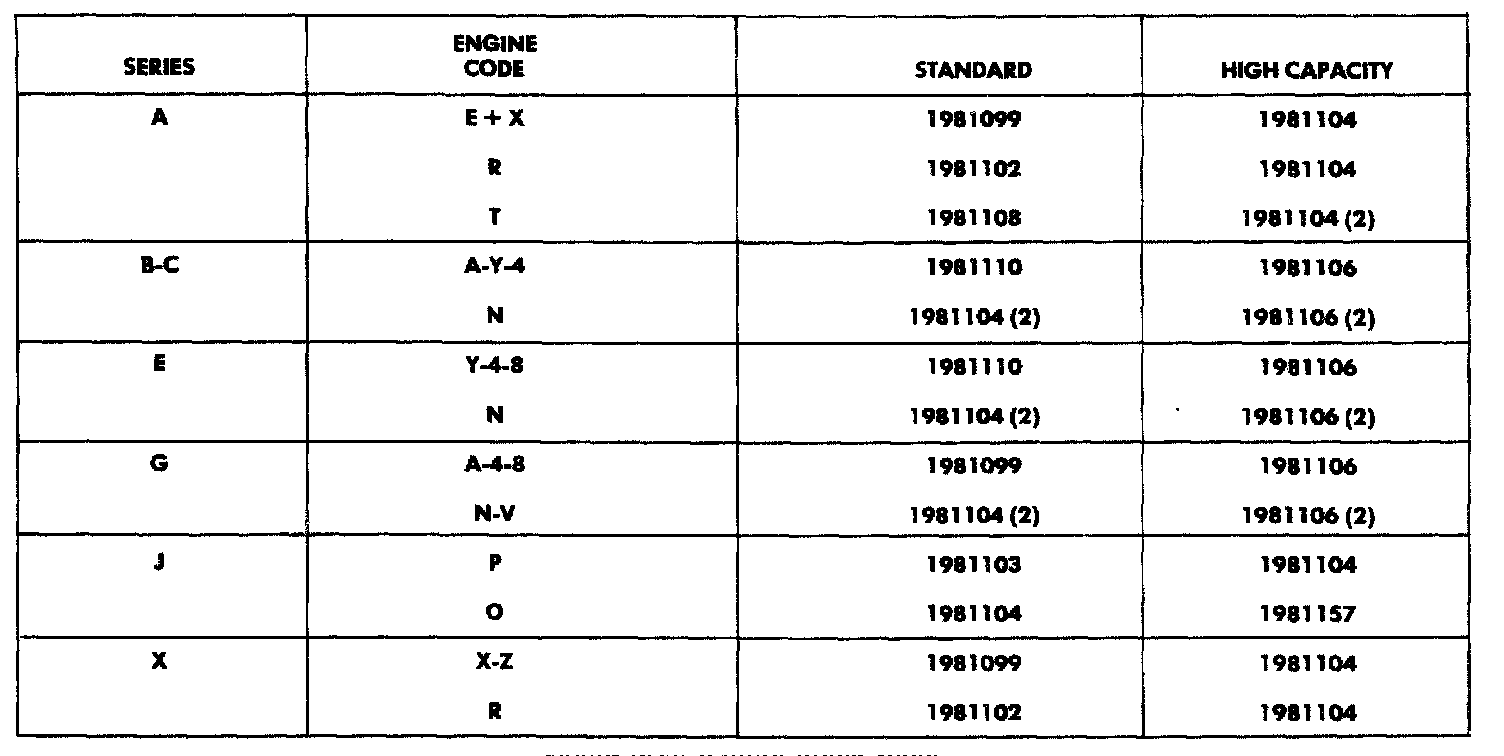

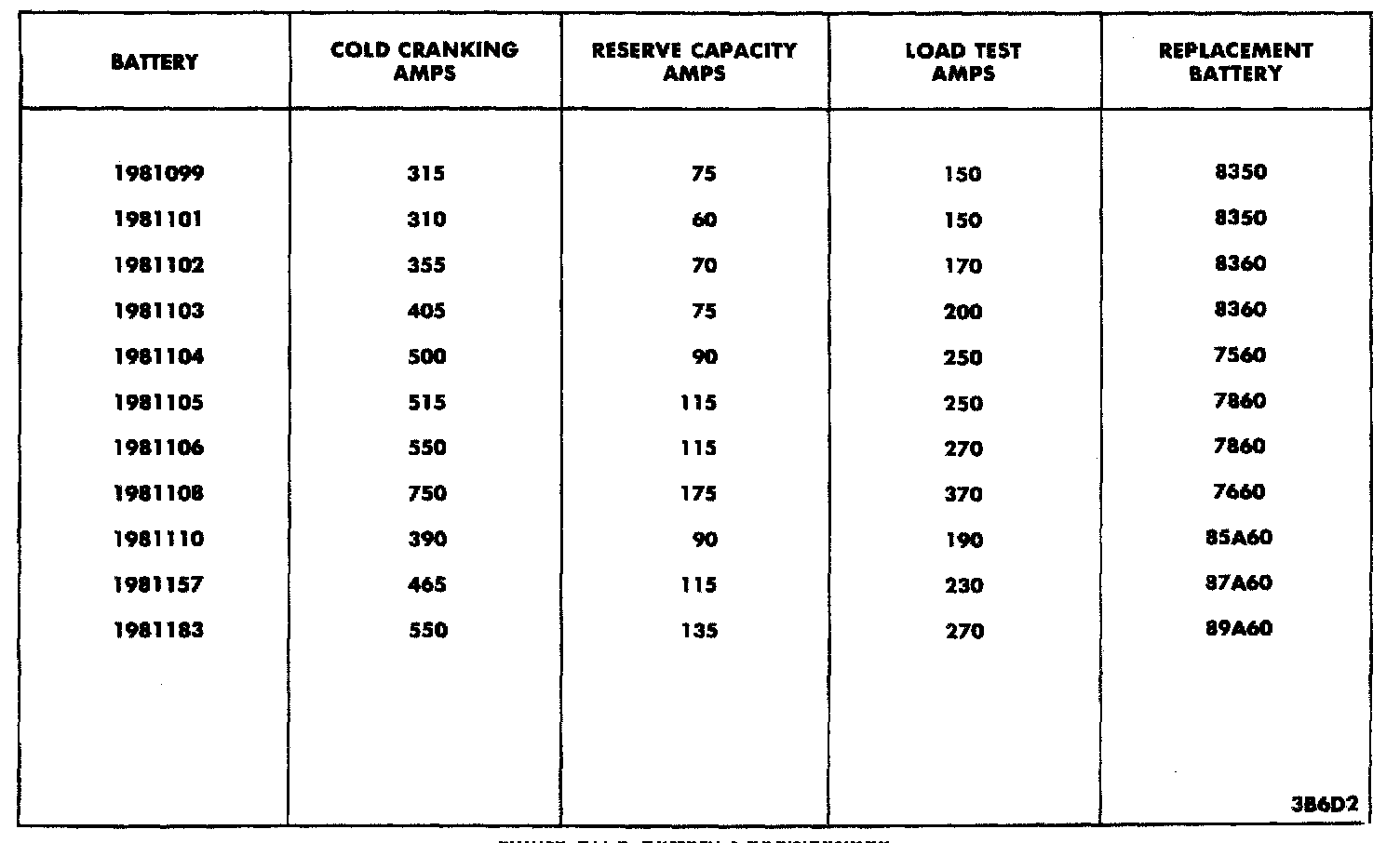

BATTERY SPECIFICATIONS

I Of II:





II Of II:

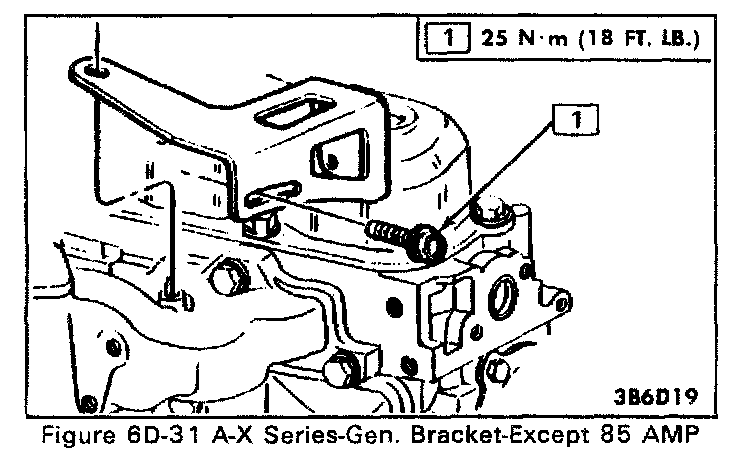

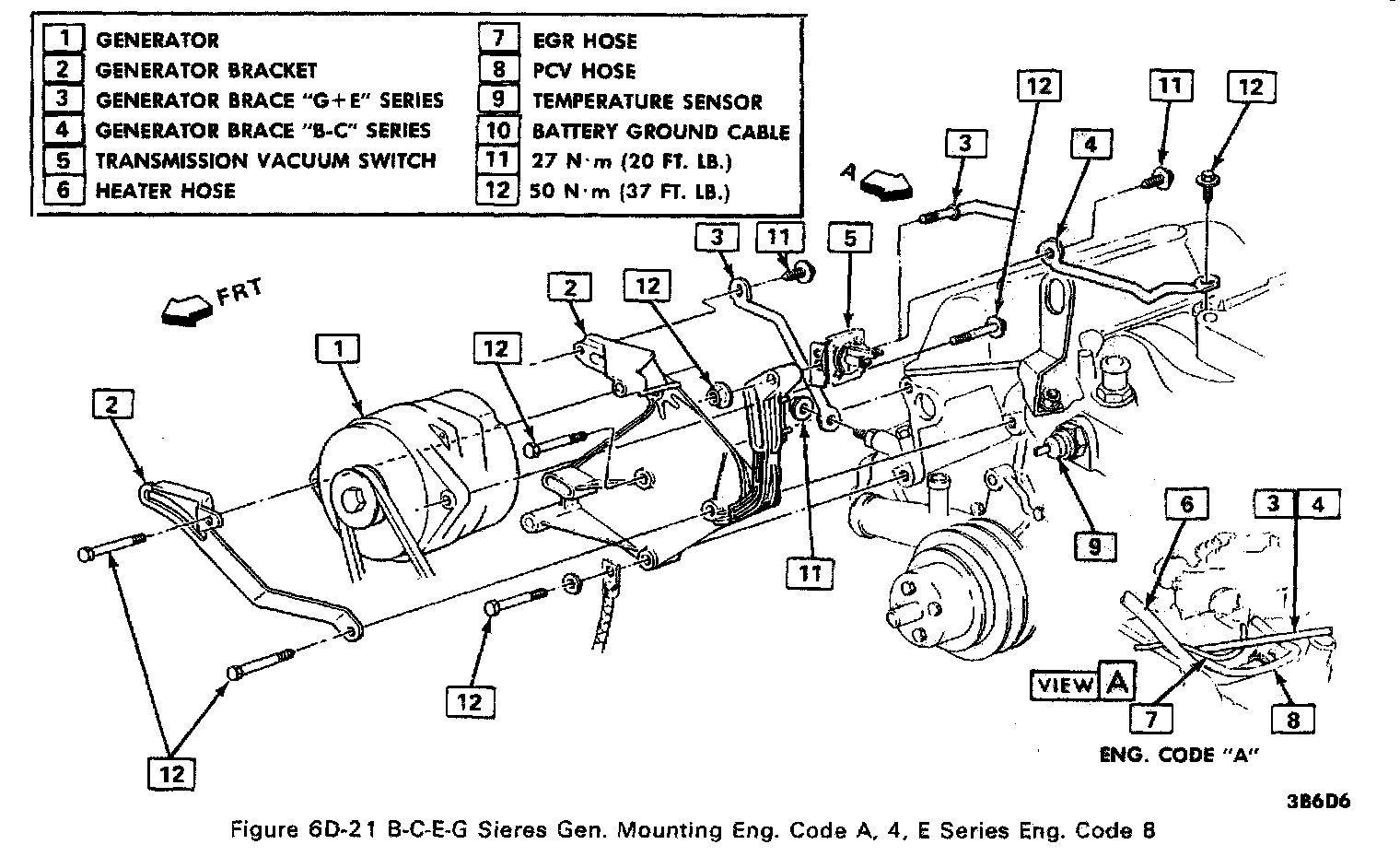

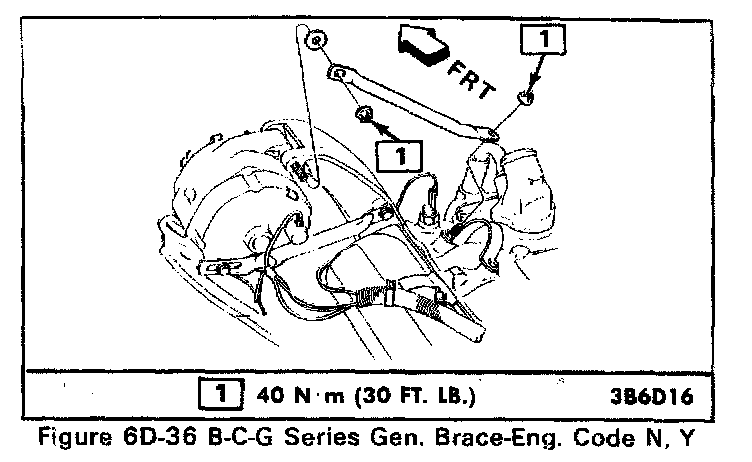

ALTERNATOR TORQUE SPECIFICATIONS

Engine A, 4, & 8:





Engine Code A, X:





Engine Code N & Y:

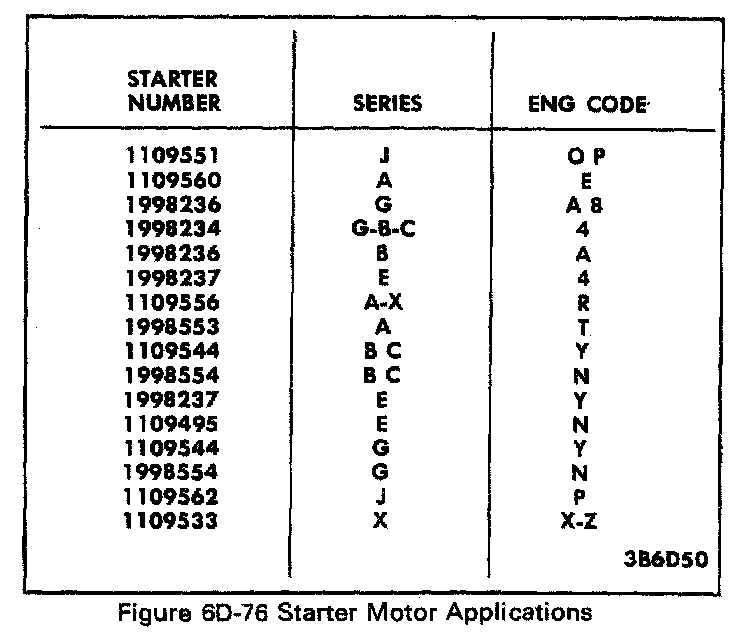

STARTER SPECIFICATIONS

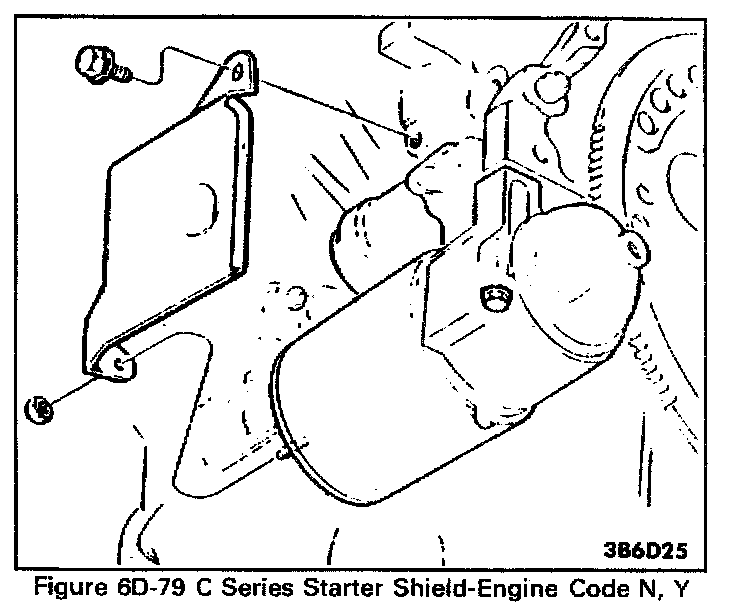

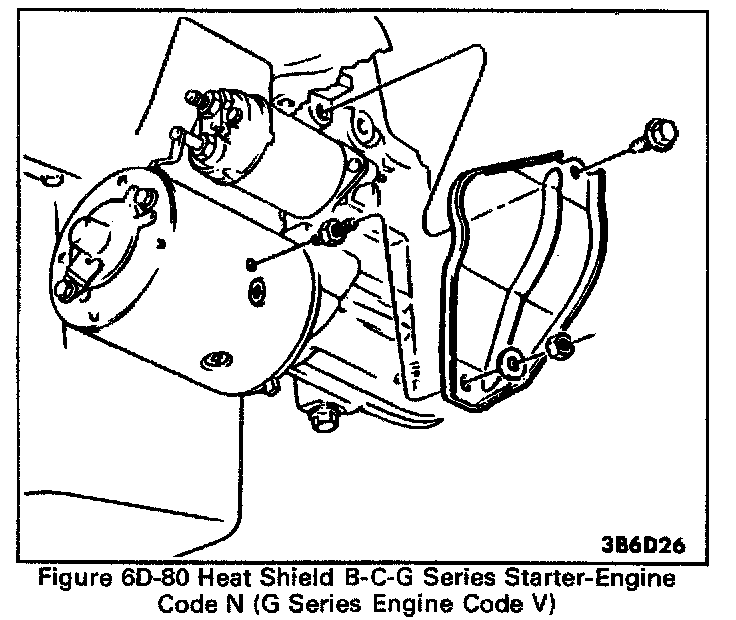

STARTER TORQUE SPECIFICATIONS

Engine Code N & V:





Engine Code N & Y:
