Home >> Buick >> 1983 >> Electra V6-252 4.1L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

Fig. 064 - ECM CONNECTOR TERMINAL I.D. & WIRING DIAGRAMS:

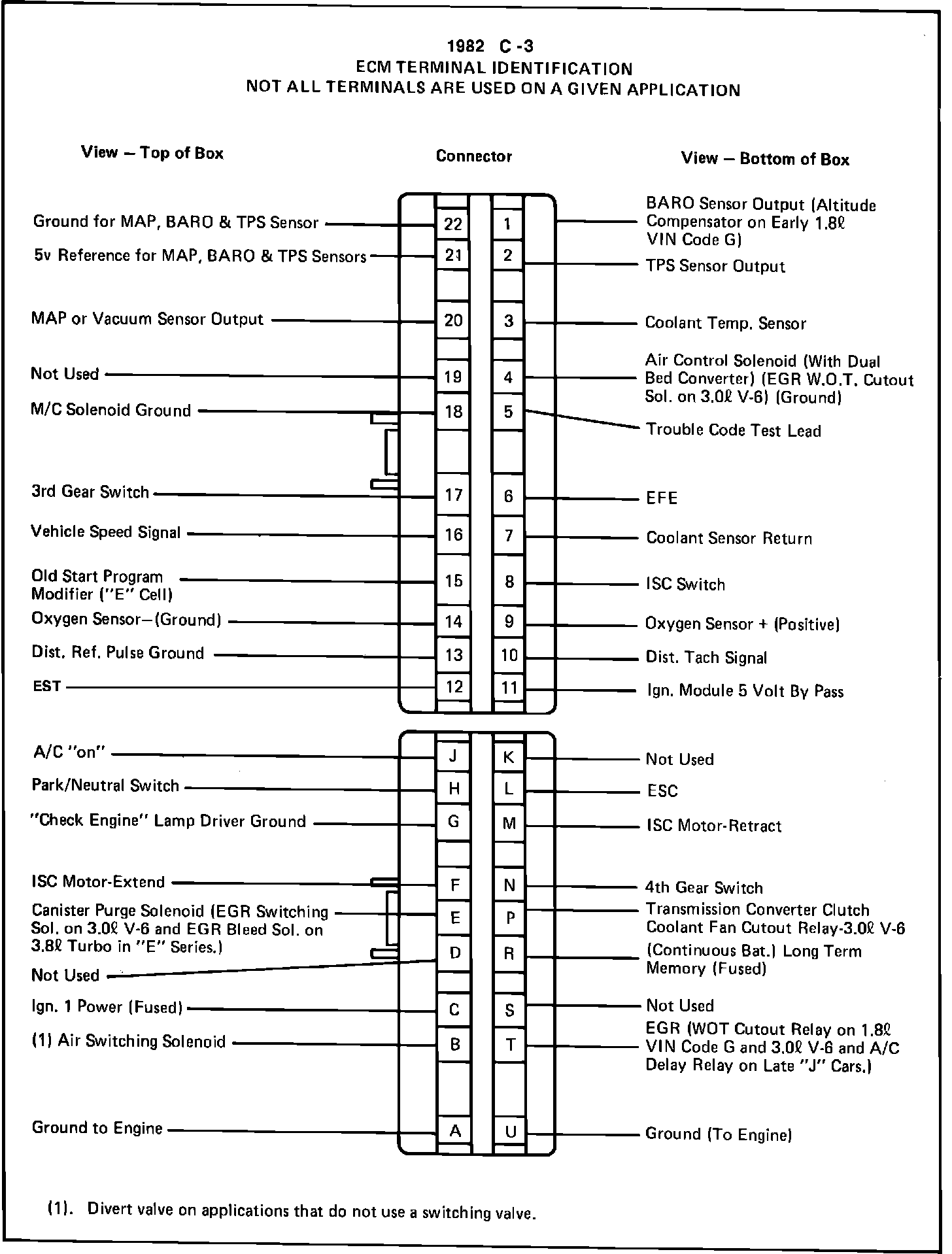

Fig. 013 1982 ECM WIRING TERMINAL IDENTIFICATION:

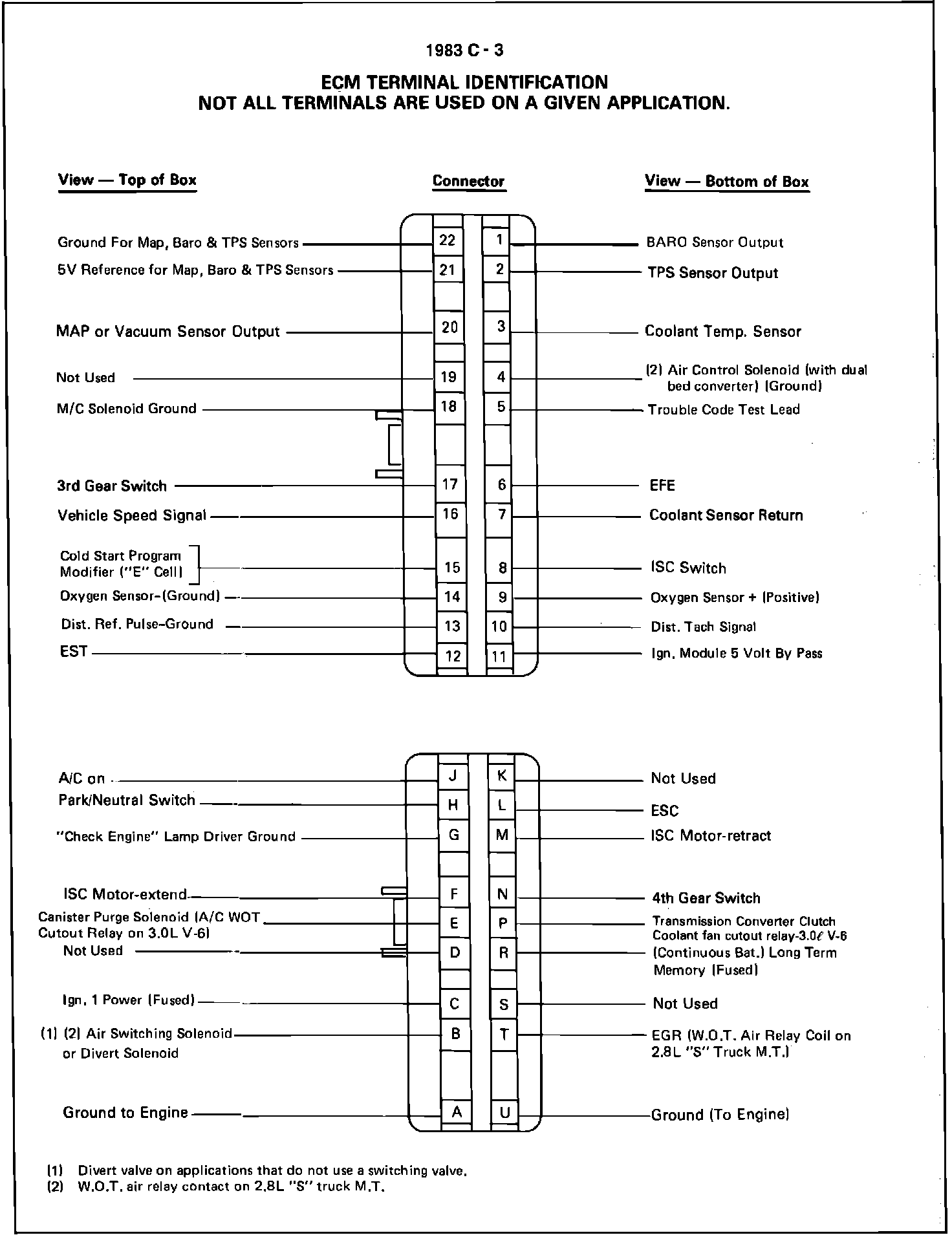

Fig. 014 1983 ECM WIRING TERMINAL IDENTIFICATION:
