Parking Assist Control Module
Parking Assist Control Module

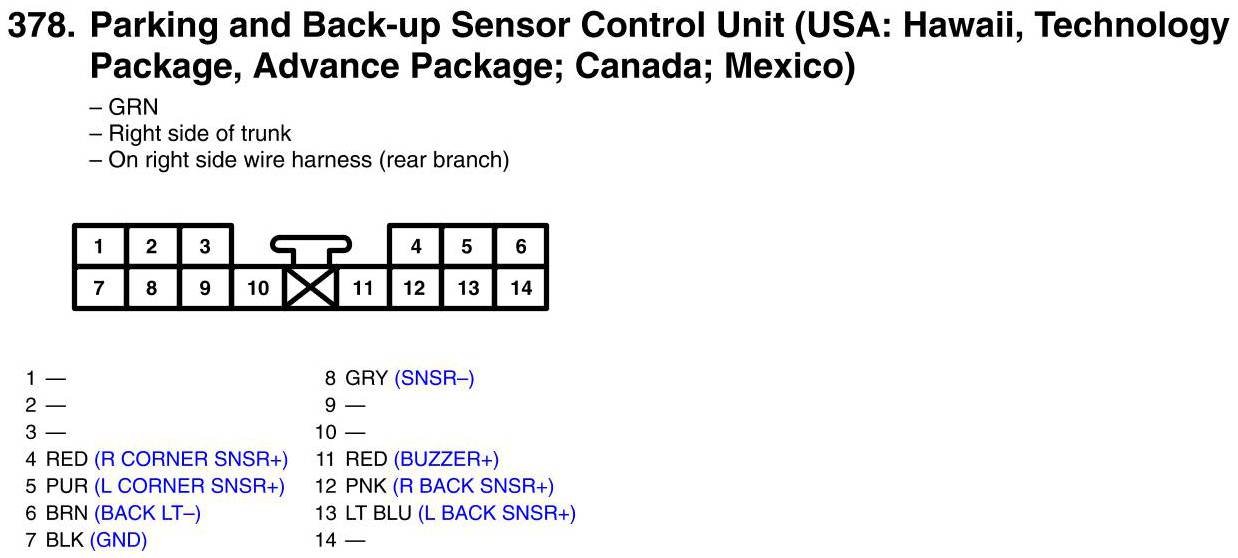

View 378 - Parking and Back-Up Sensor
Control Unit
Connector View (USA: Hawaii, Technology Package, Advance Package; Canada; Mexico)
