Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> System Specifications

System Specifications

Crankshaft Pulley
Tightening Torque 65 Nm (6.5 kgf-m, 47 lbf-ft) + 60°

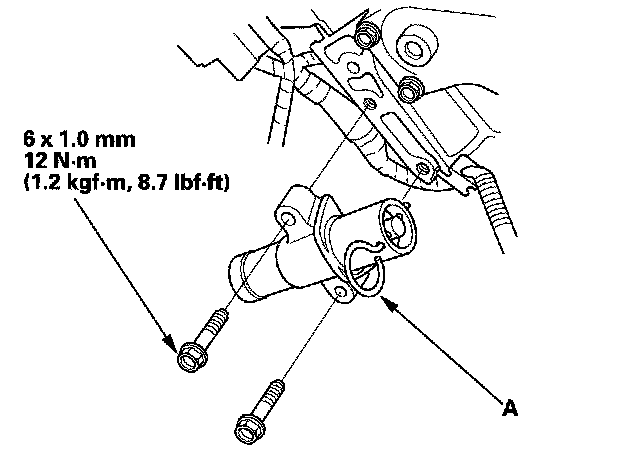

Auto-Tensioner

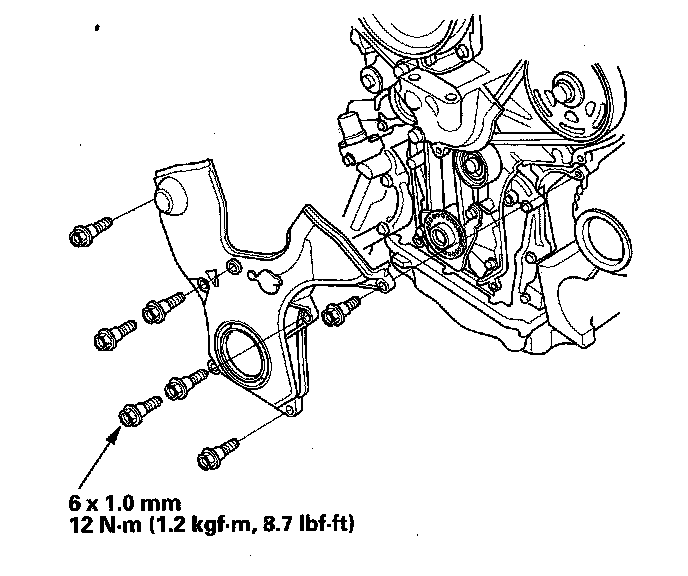

Lower Cover

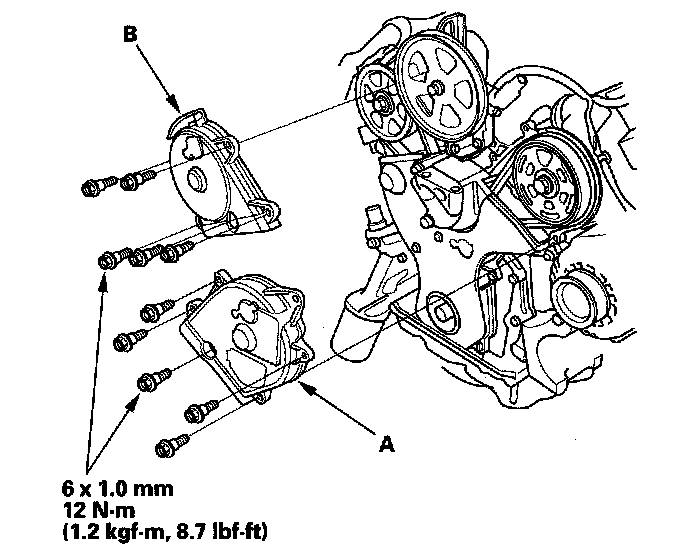

Front Upper Cover (A) and Rear Upper Cover (B)
