Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

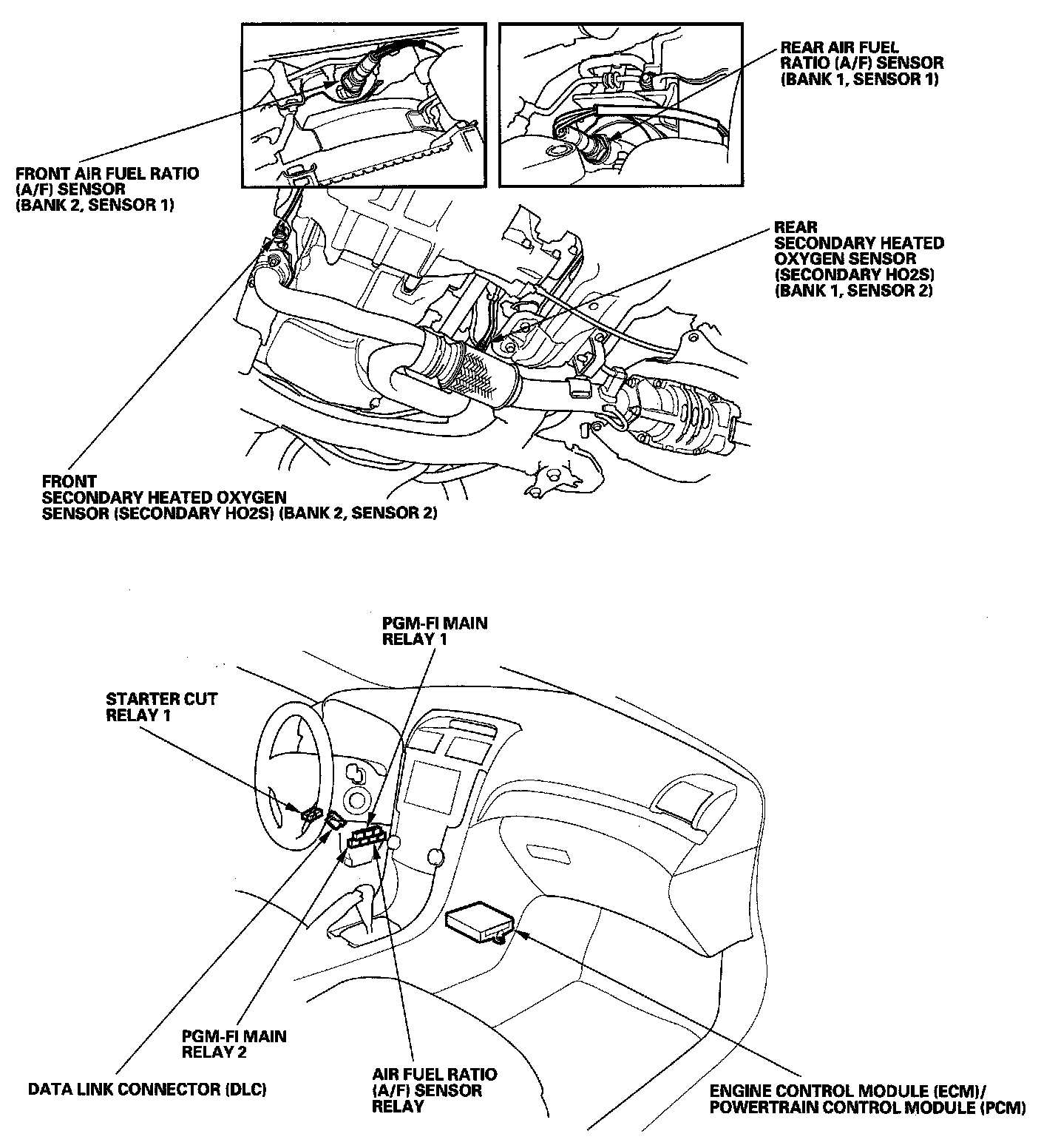

PGM-FI System Component Location Index:

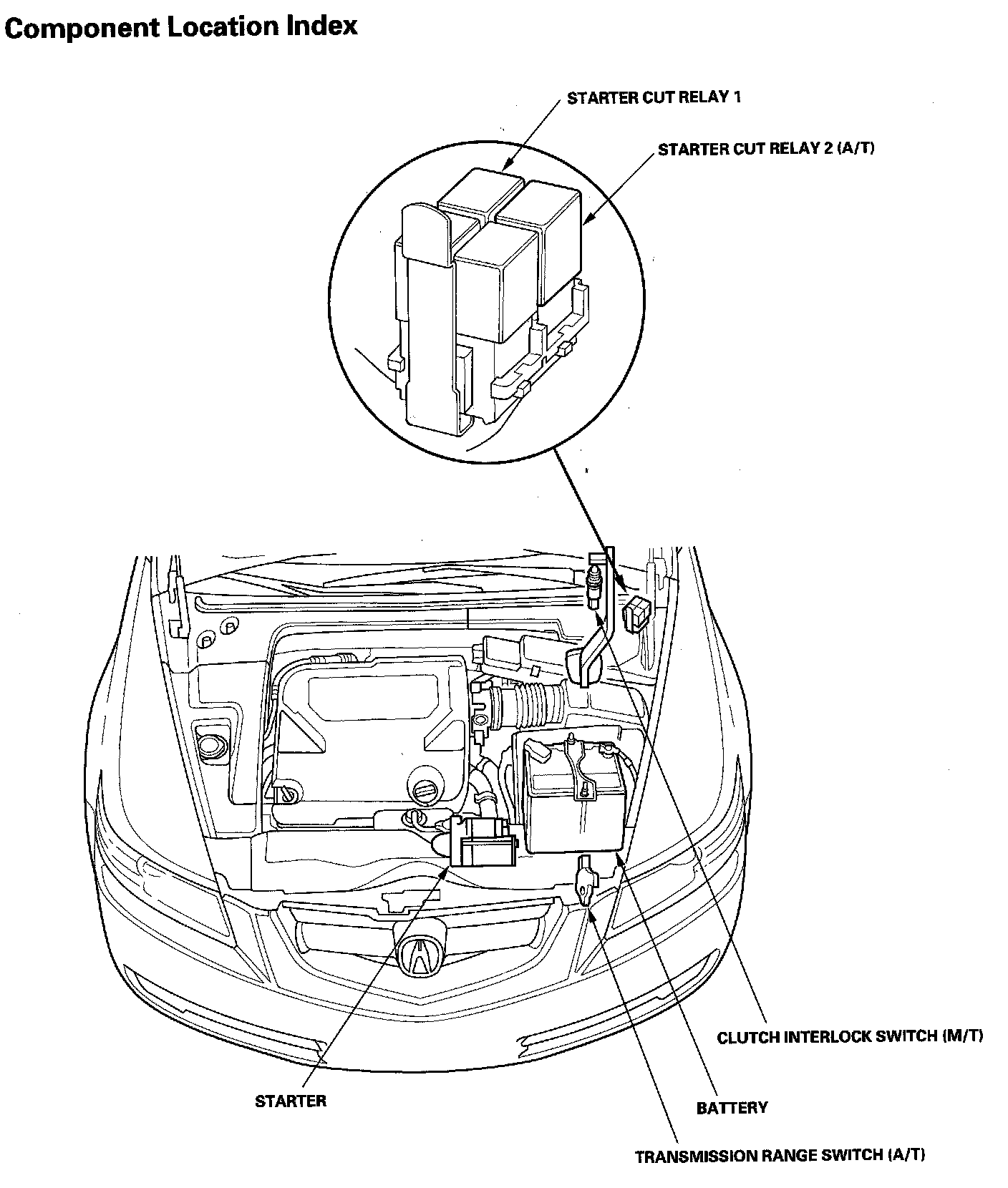

Starting System Component Location Index:

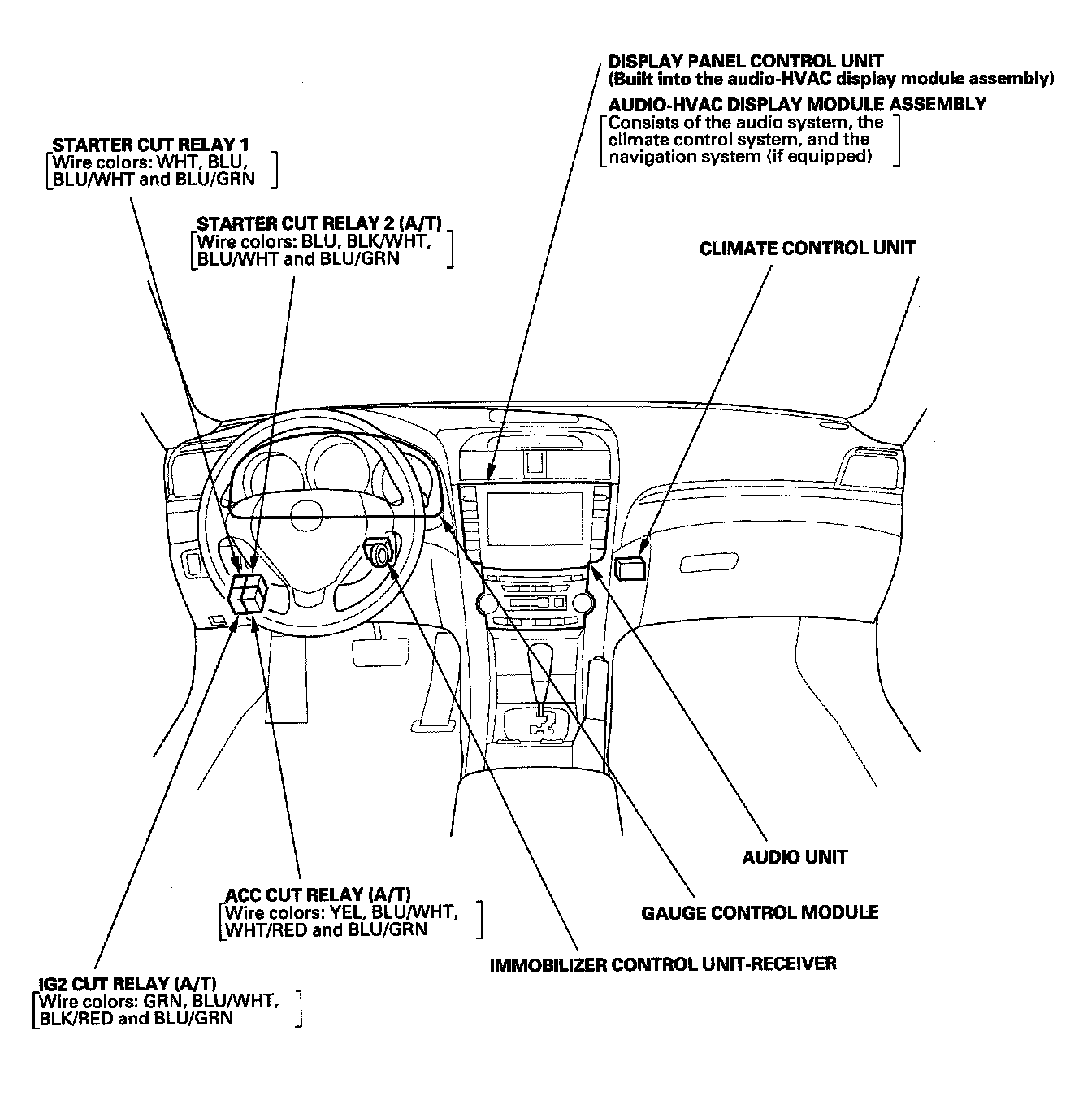

Relay and Control Unit Locations Dashboard:

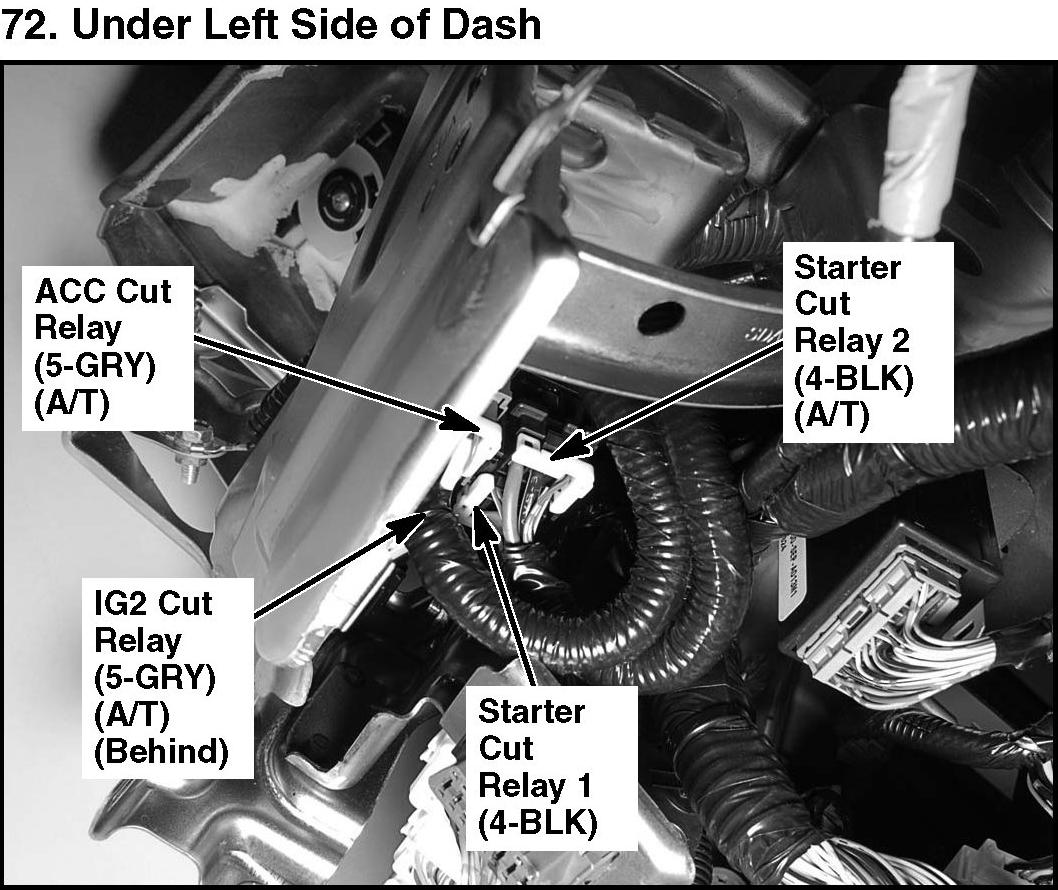

72. Under Left Side Of Dash:
