Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Locations >> Harness Locations >> Left TPMS Sub-harness

Left TPMS Sub-harness

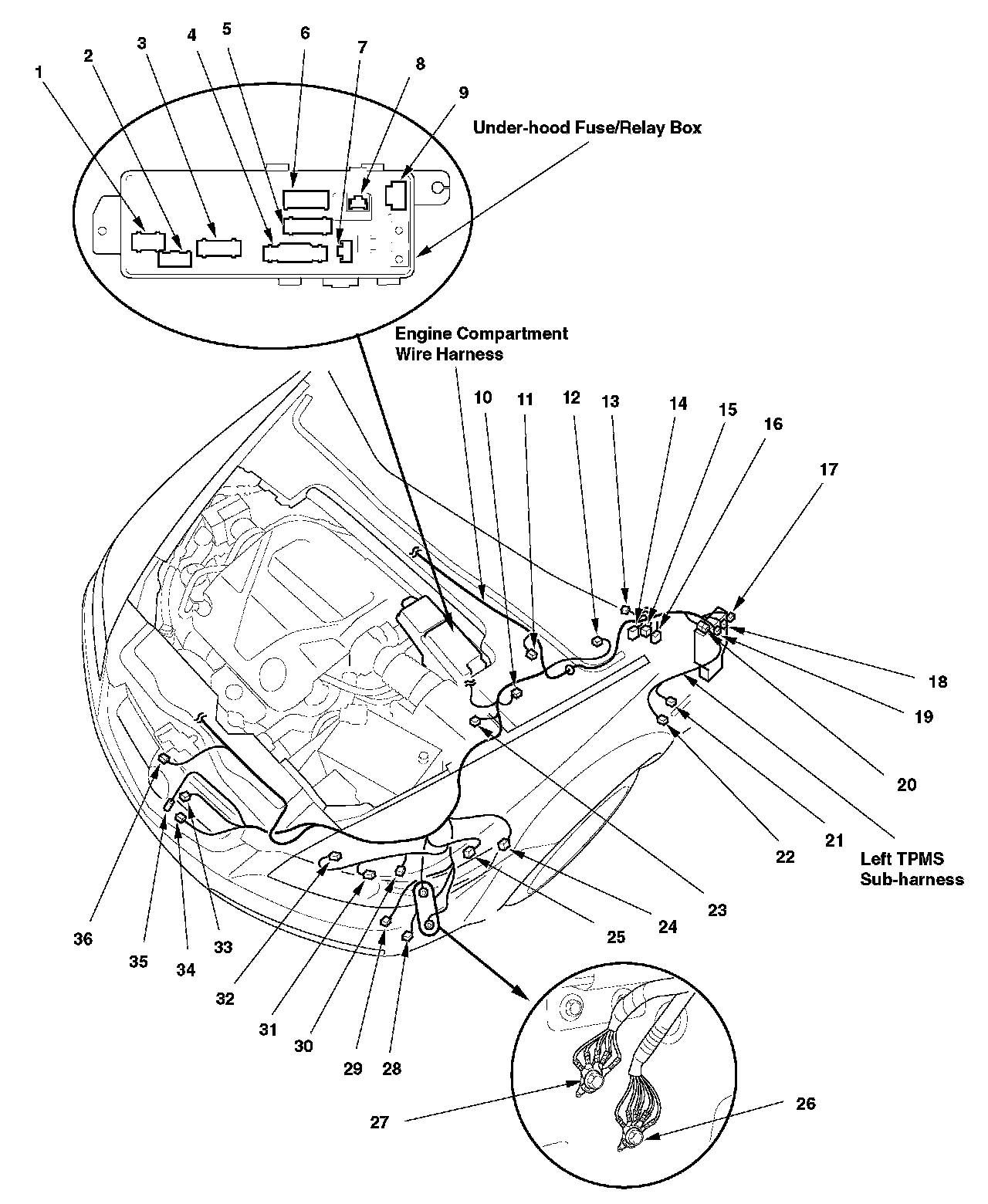

Harness Location View:

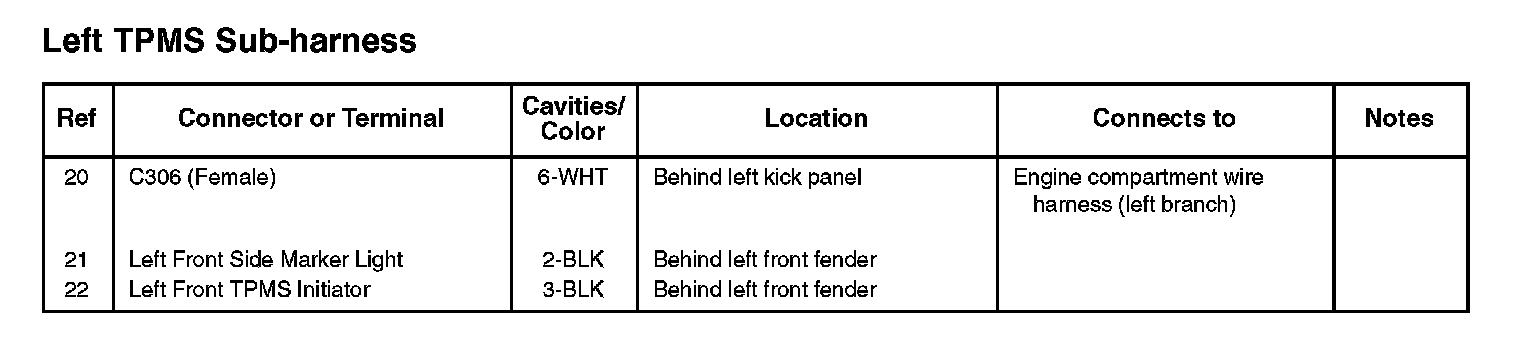

Left TPMS Sub-harness:
