Driving Position Memory System (DPMS) Circuit Diagram

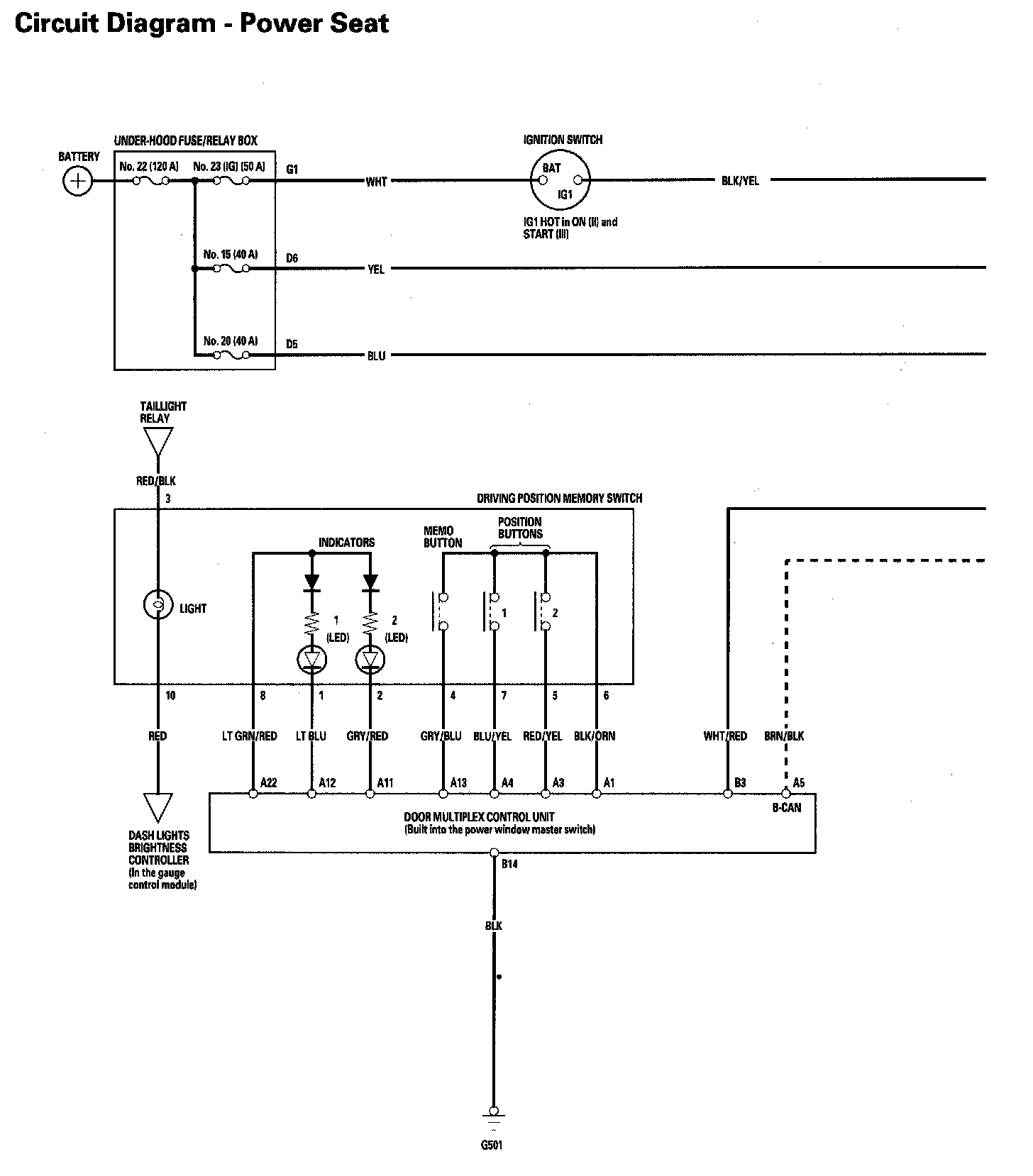

Driving Position Memory System (DPMS) Circuit Diagram - Power Seat Part 1:

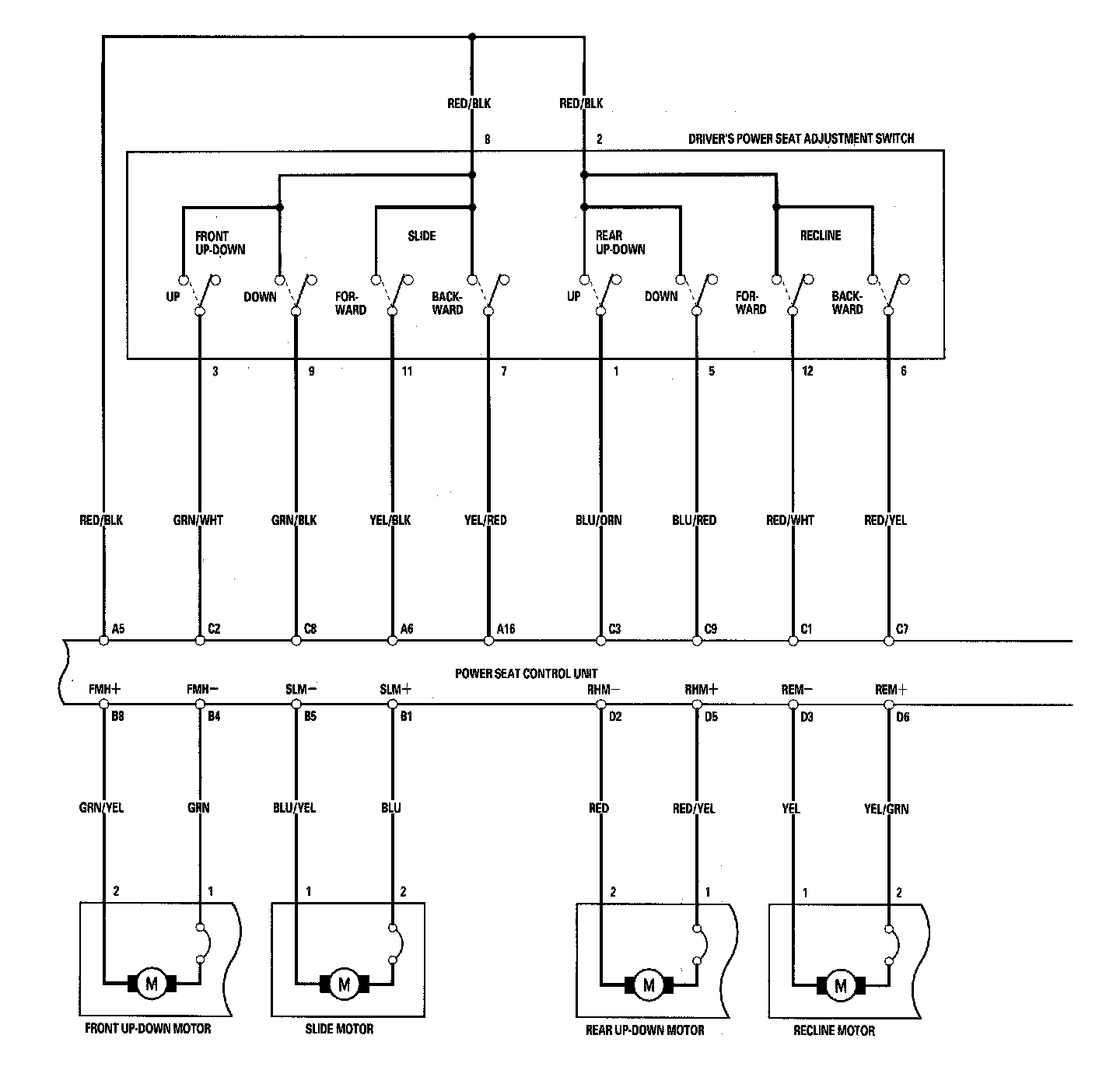

Driving Position Memory System (DPMS) Circuit Diagram - Power Seat Part 2:

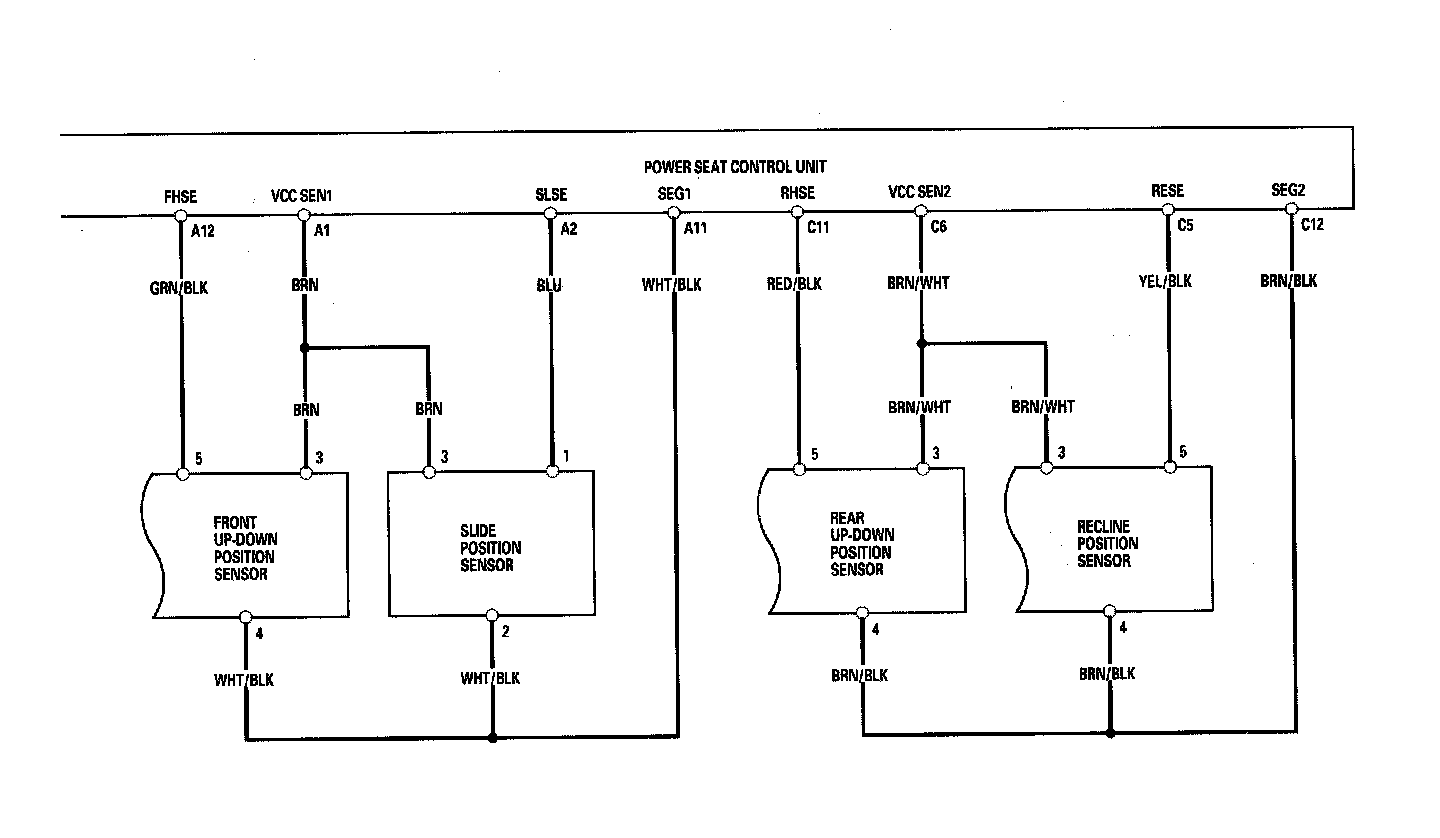

Driving Position Memory System (DPMS) Circuit Diagram - Power Seat Part 3:

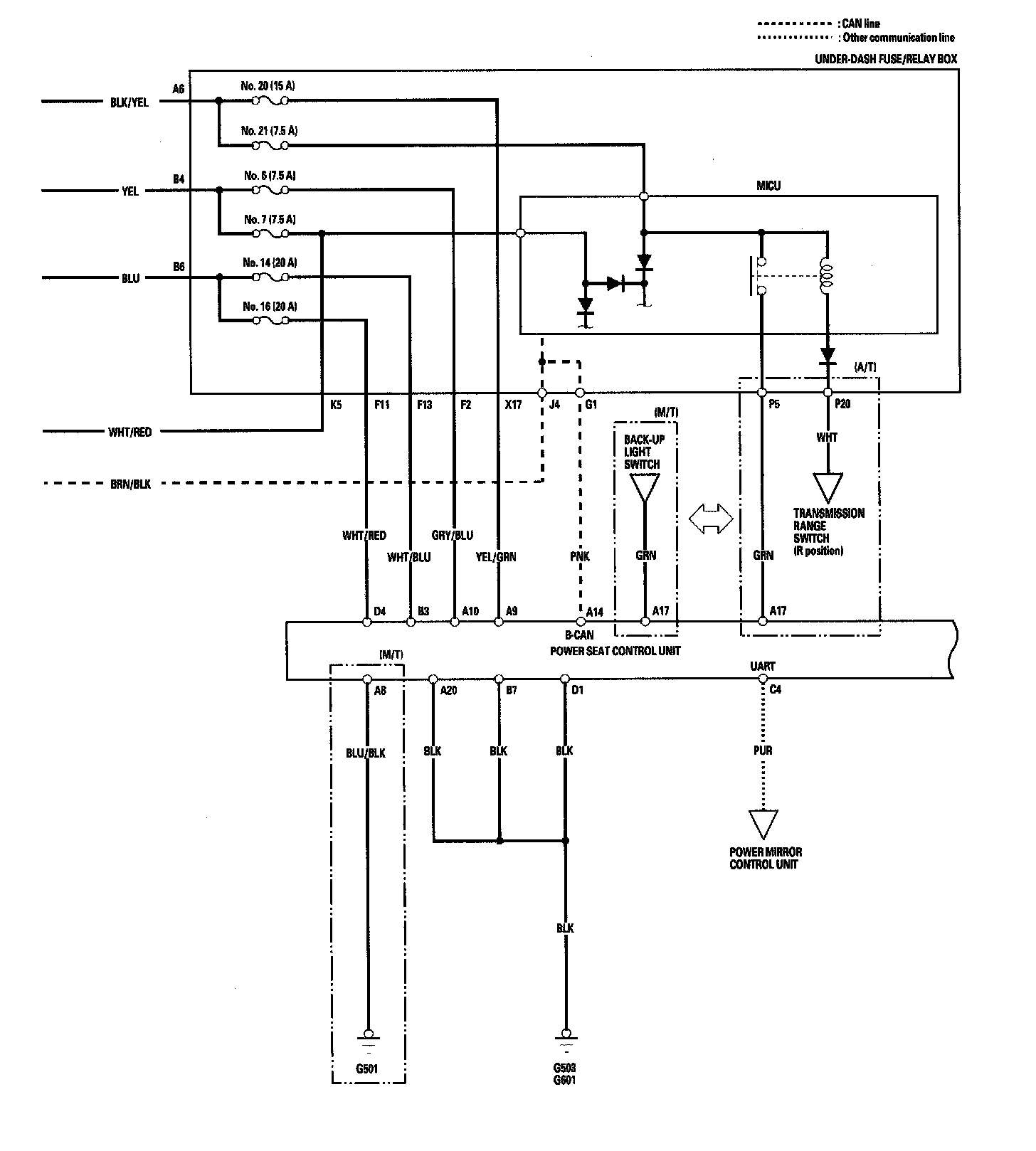

Driving Position Memory System (DPMS) Circuit Diagram - Power Seat Part 4:

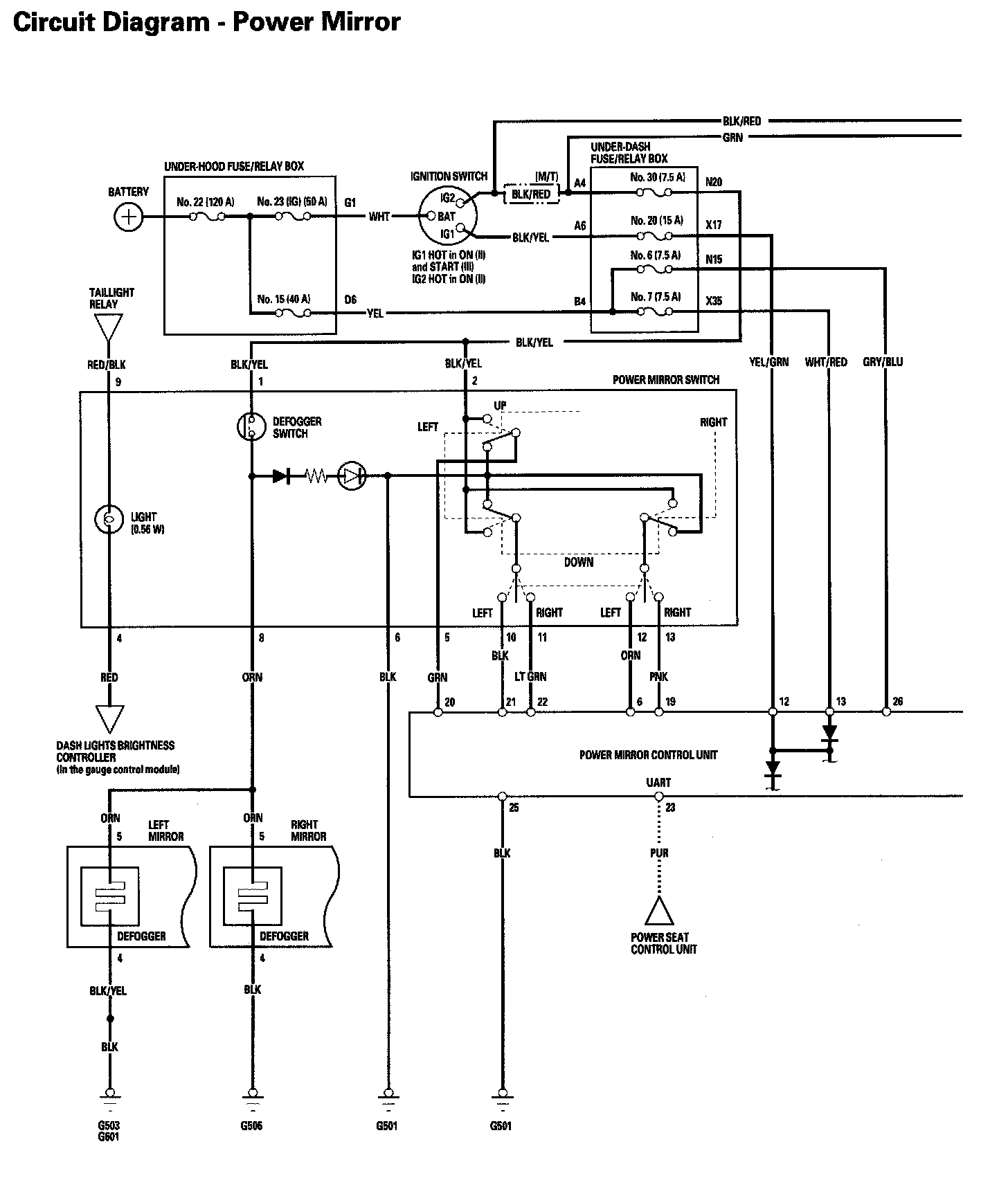

Driving Position Memory System (DPMS) Circuit Diagram - Power Mirror Part 1:

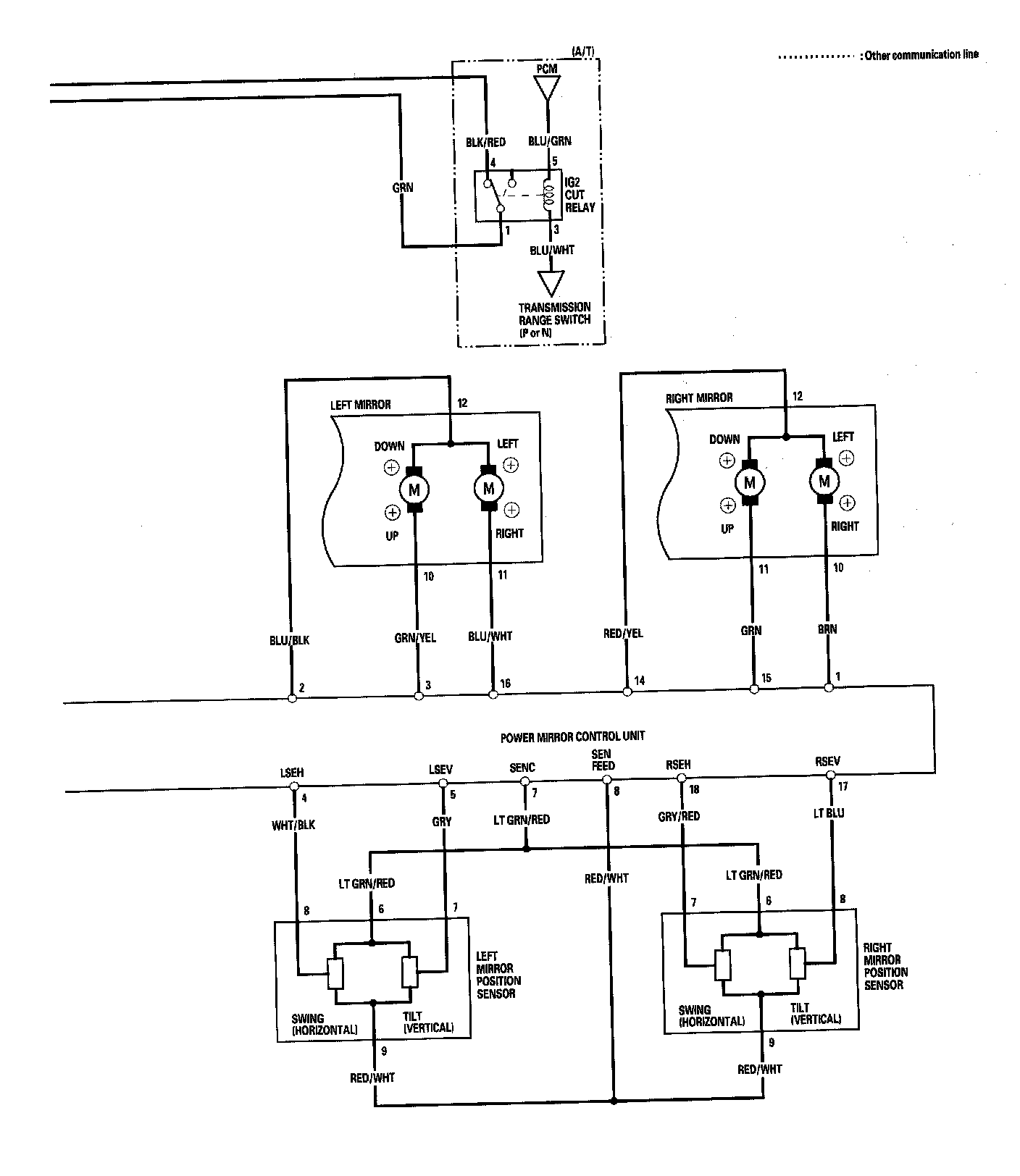

Driving Position Memory System (DPMS) Circuit Diagram - Power Mirror Part 2:
