Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Module

Traction Control Module

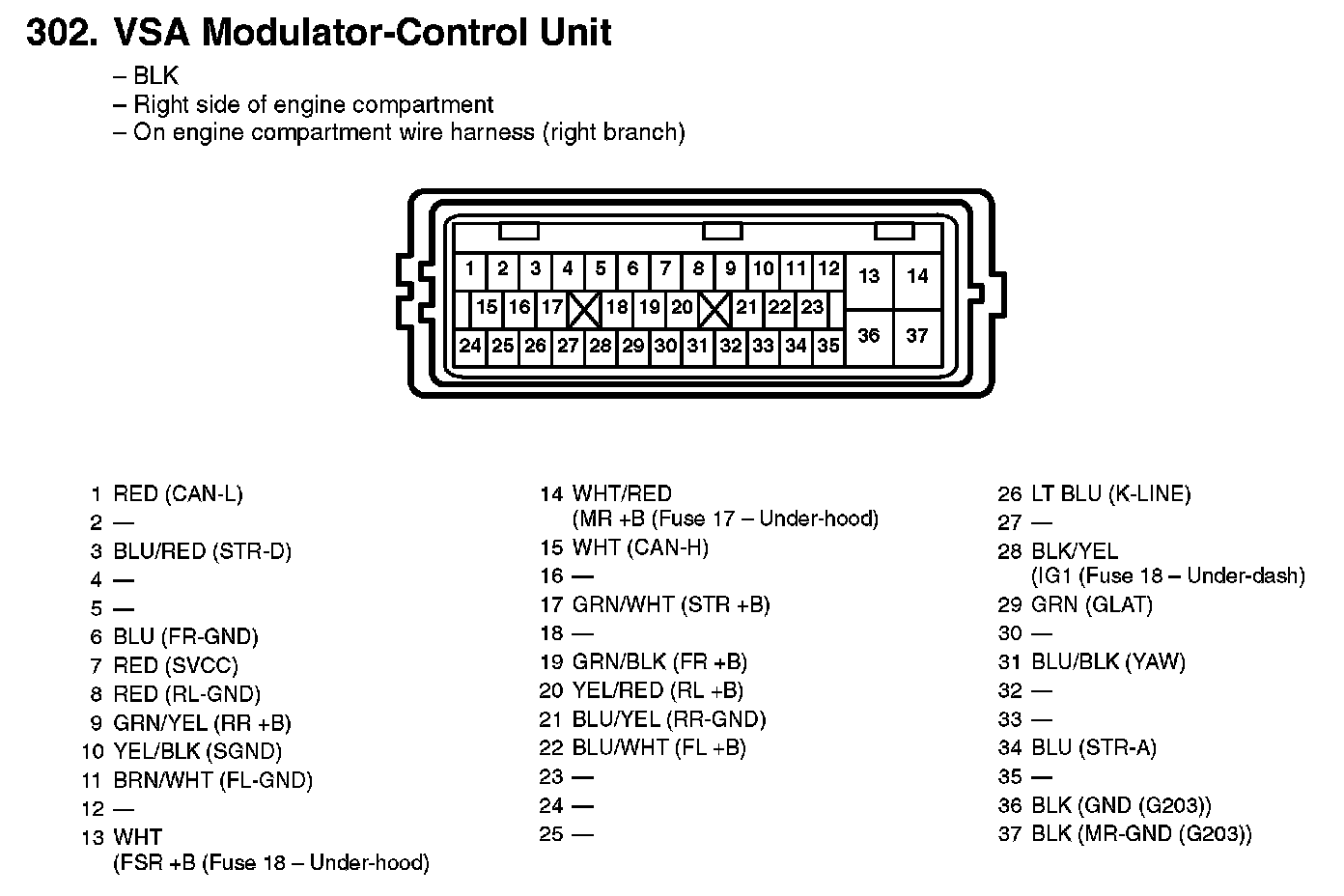

302. VSA Modulator-Control Unit:
