Tire Pressure Module
Tire Pressure Module

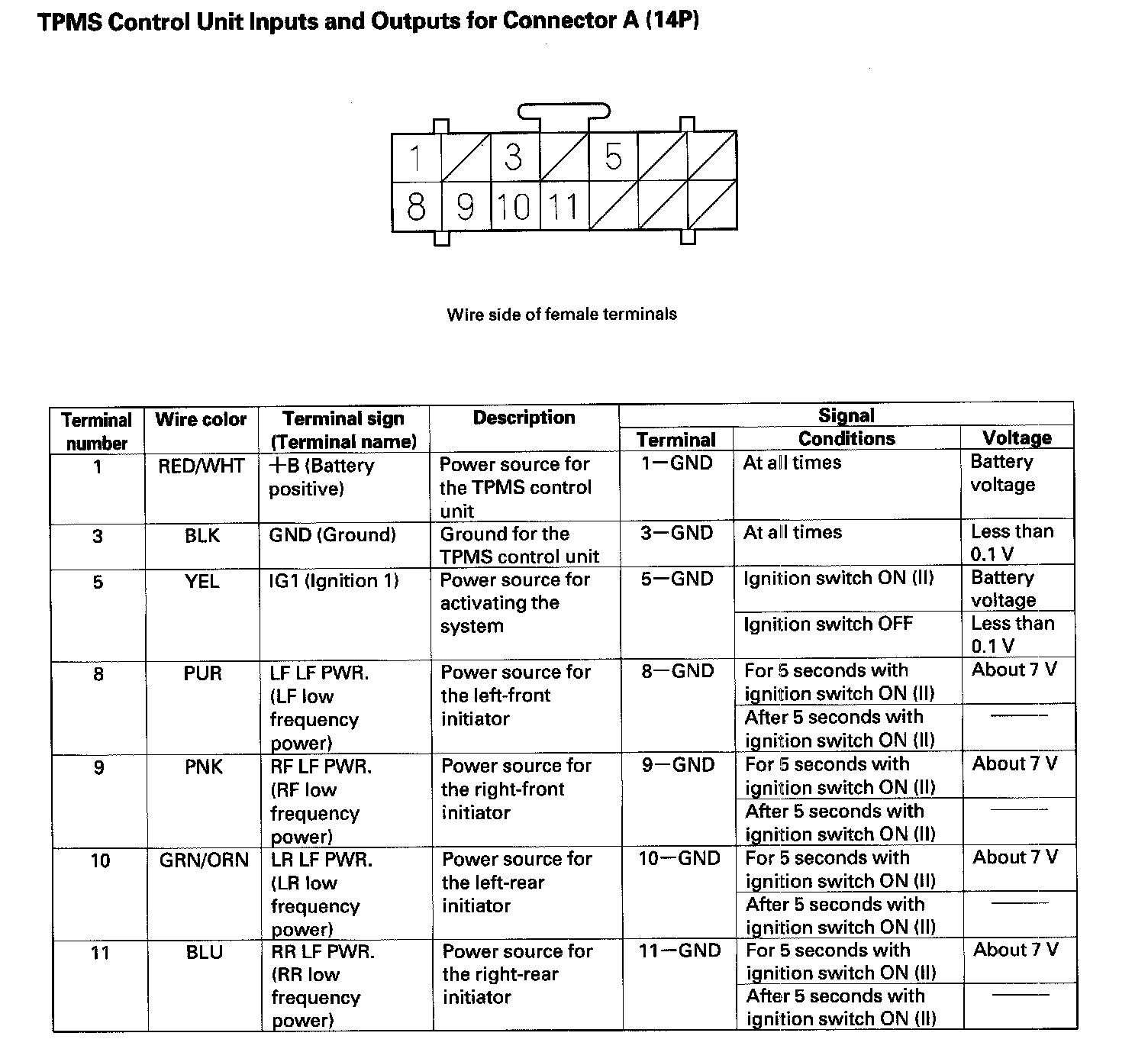

TPMS Control Unit Inputs and Outputs (Part 1):

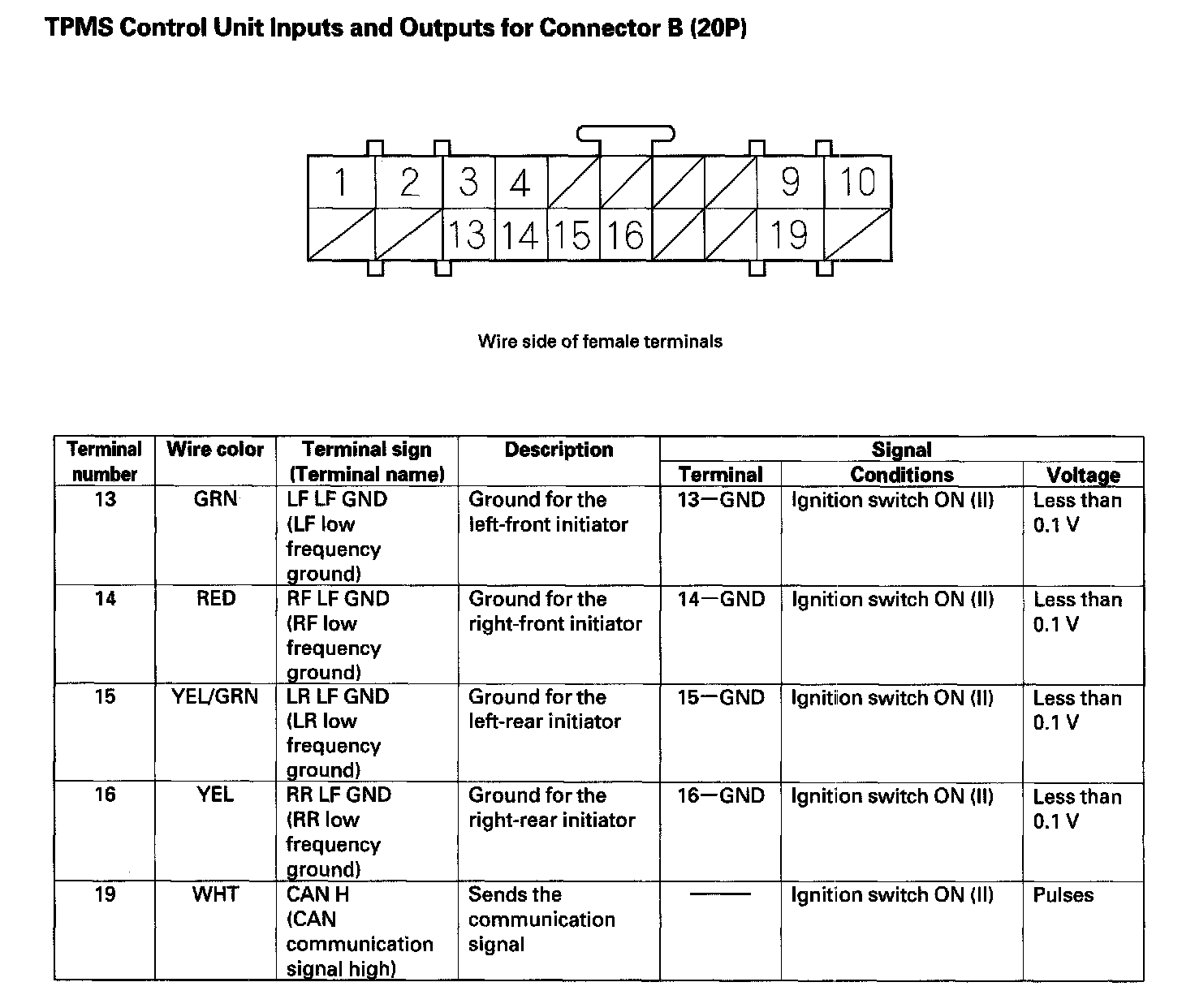

TPMS Control Unit Inputs and Outputs (Part 2):

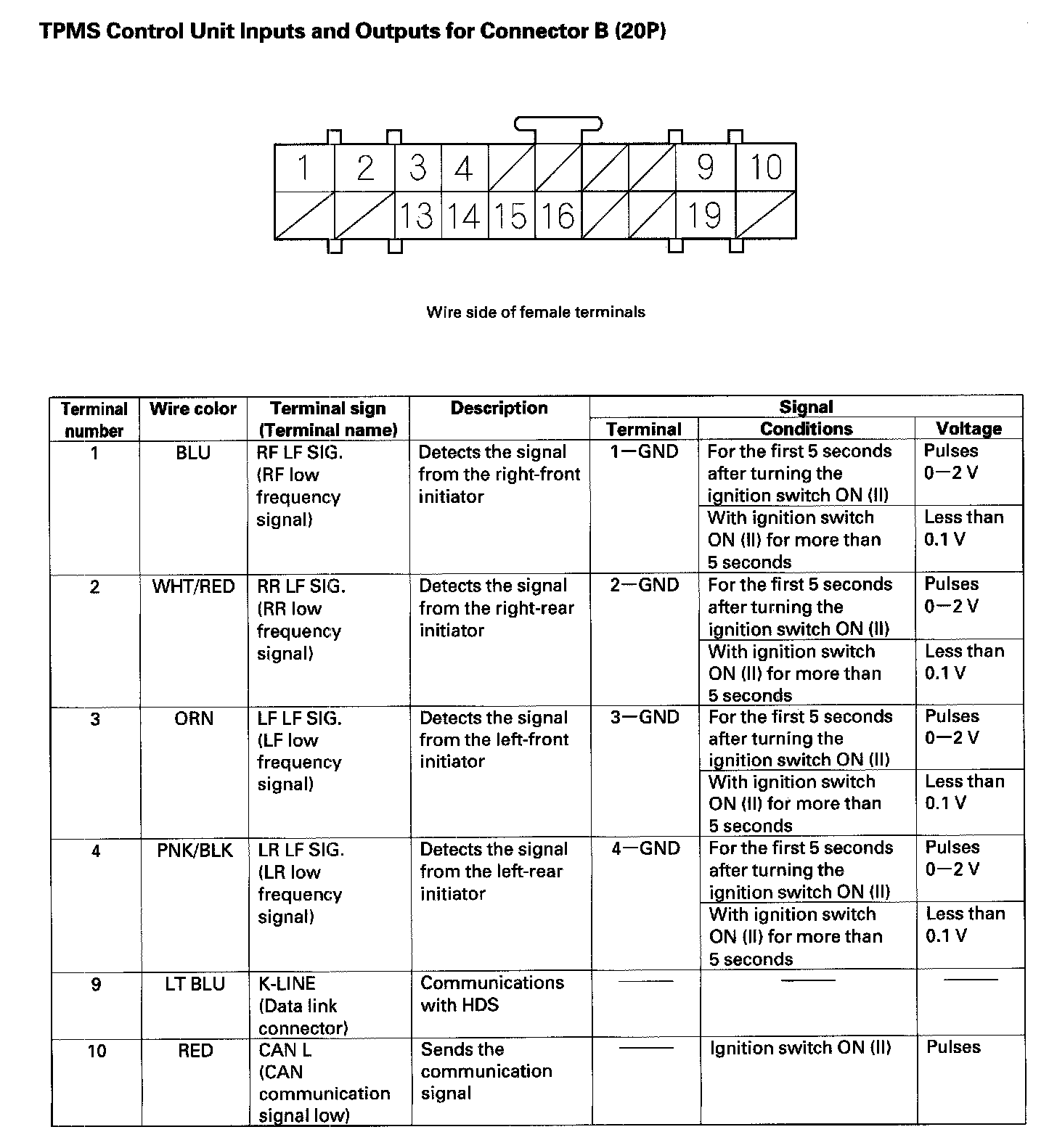

TPMS Control Unit Inputs and Outputs (Part 3):

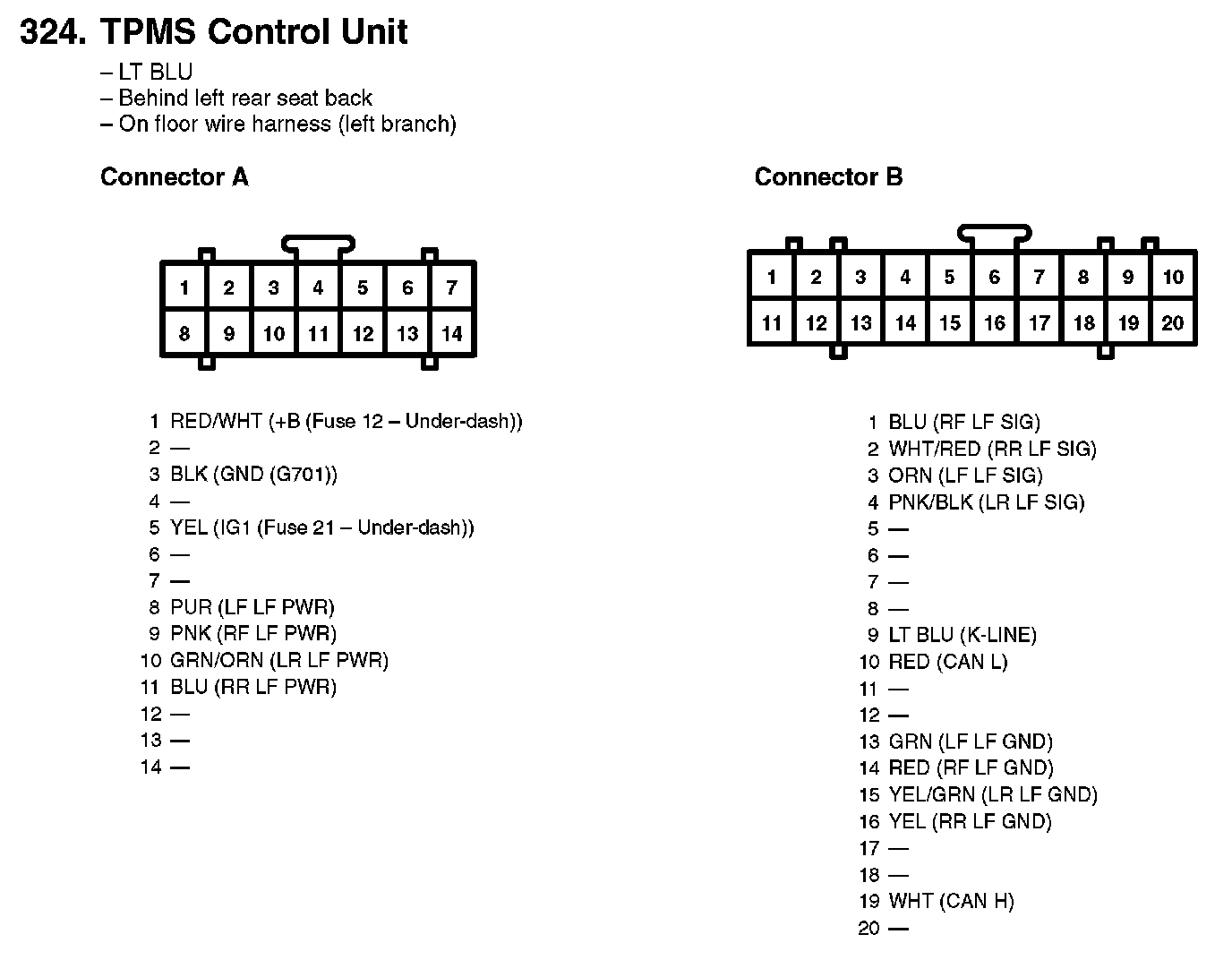

324. TPMS Control Unit:
