Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

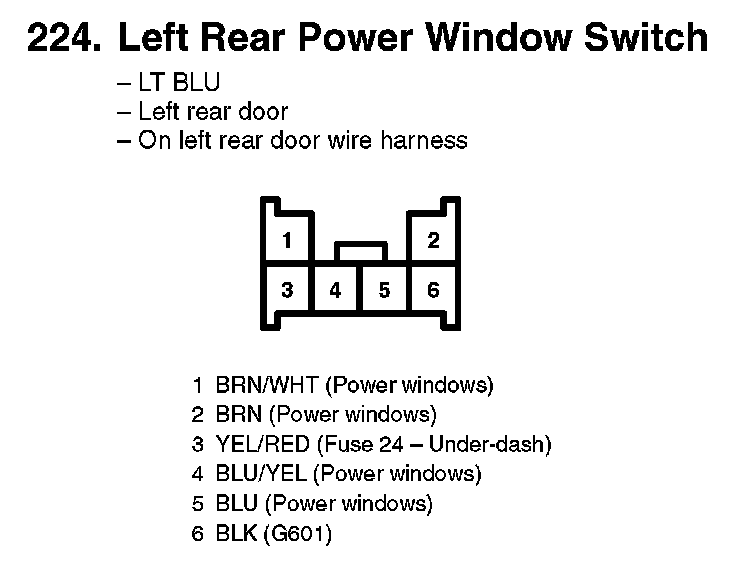

224. Left Rear Power Window Switch:

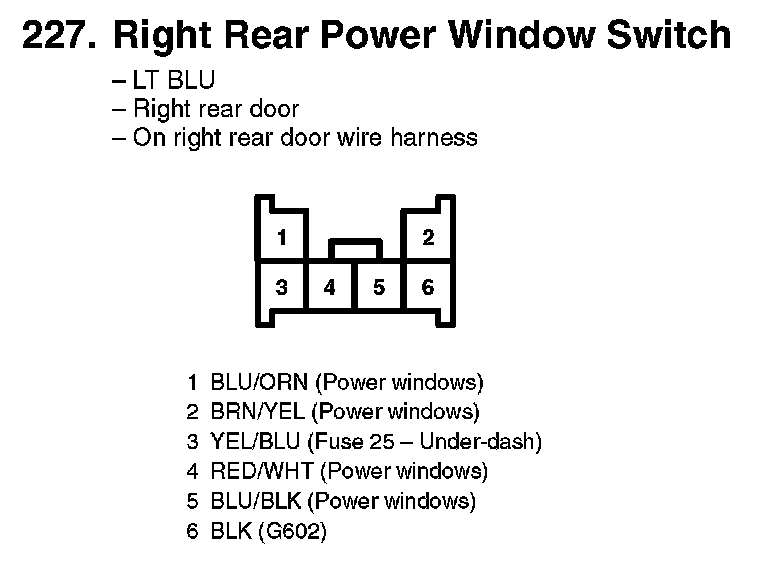

227. Right Rear Power Window Switch:

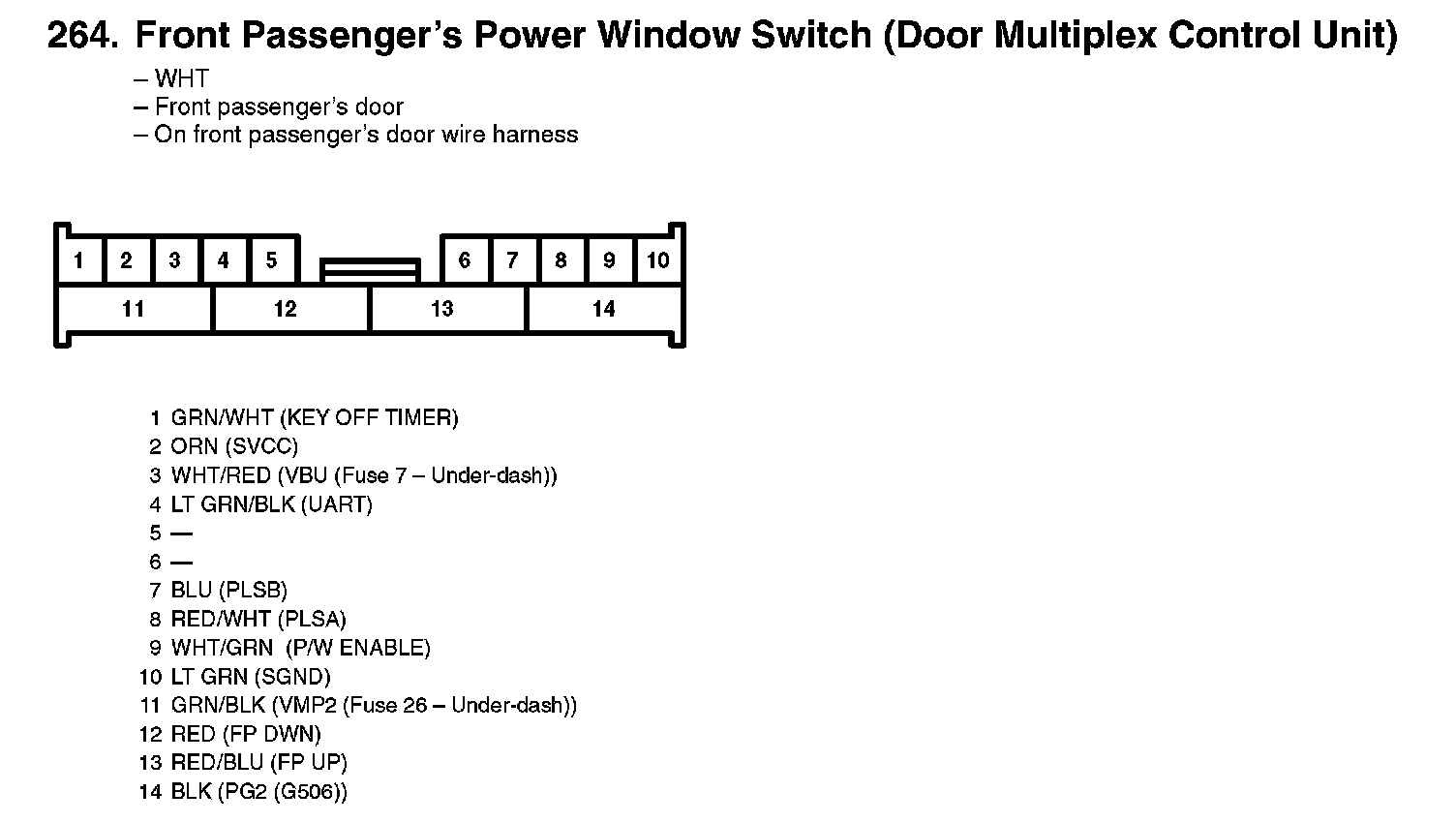

264. Front Passenger's Power Window Switch (Door Multiplex Control Unit):

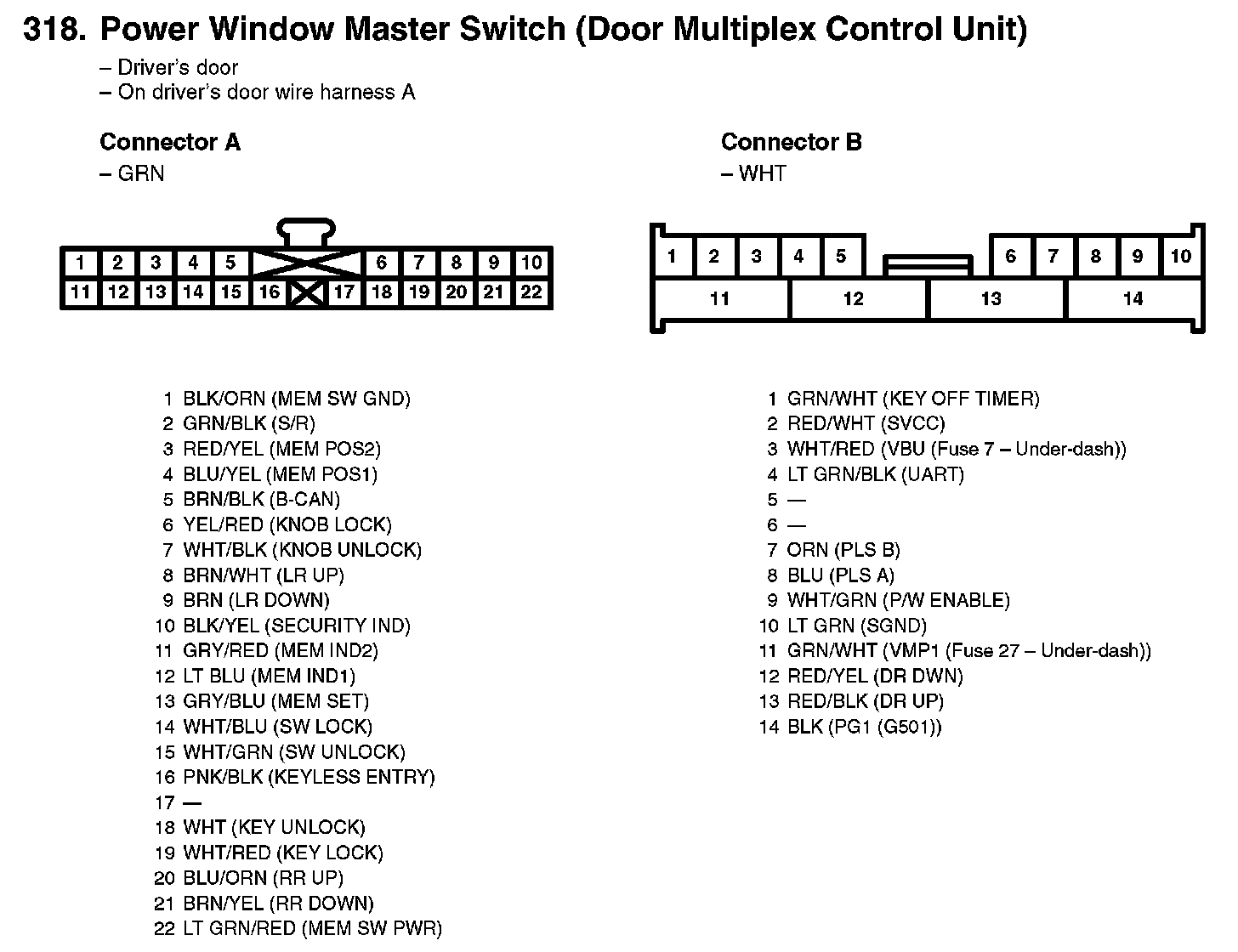

318. Power Window Master Switch (Door Multiplex Control Unit):
