lemon-mirror
:
Home
>>
Acura
>>
2007
>>
TL V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Starting System
Keyless Starting System

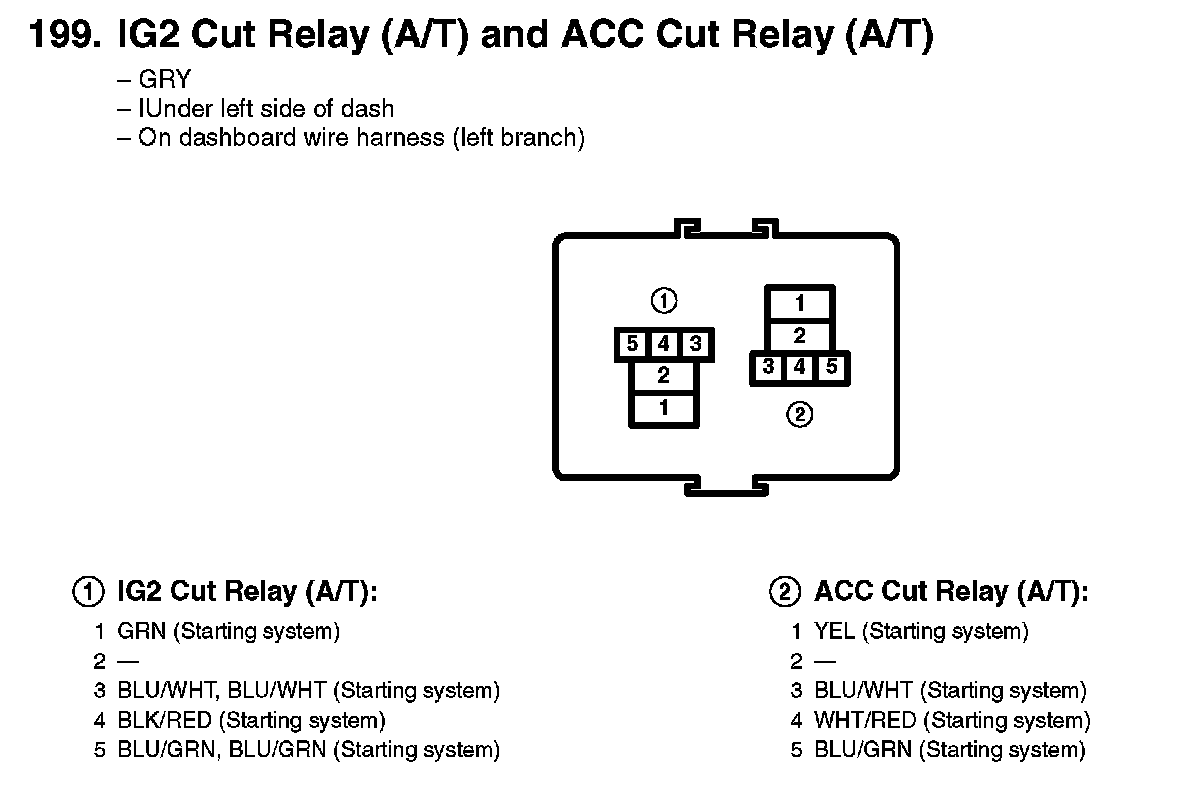

199. IG2 Cut Relay (A/T) And ACC Cut Relay (A/T):
