Connector Views
>>
Instrument Cluster / Carrier
>>
Instrument Panel Control Module
Instrument Panel Control Module

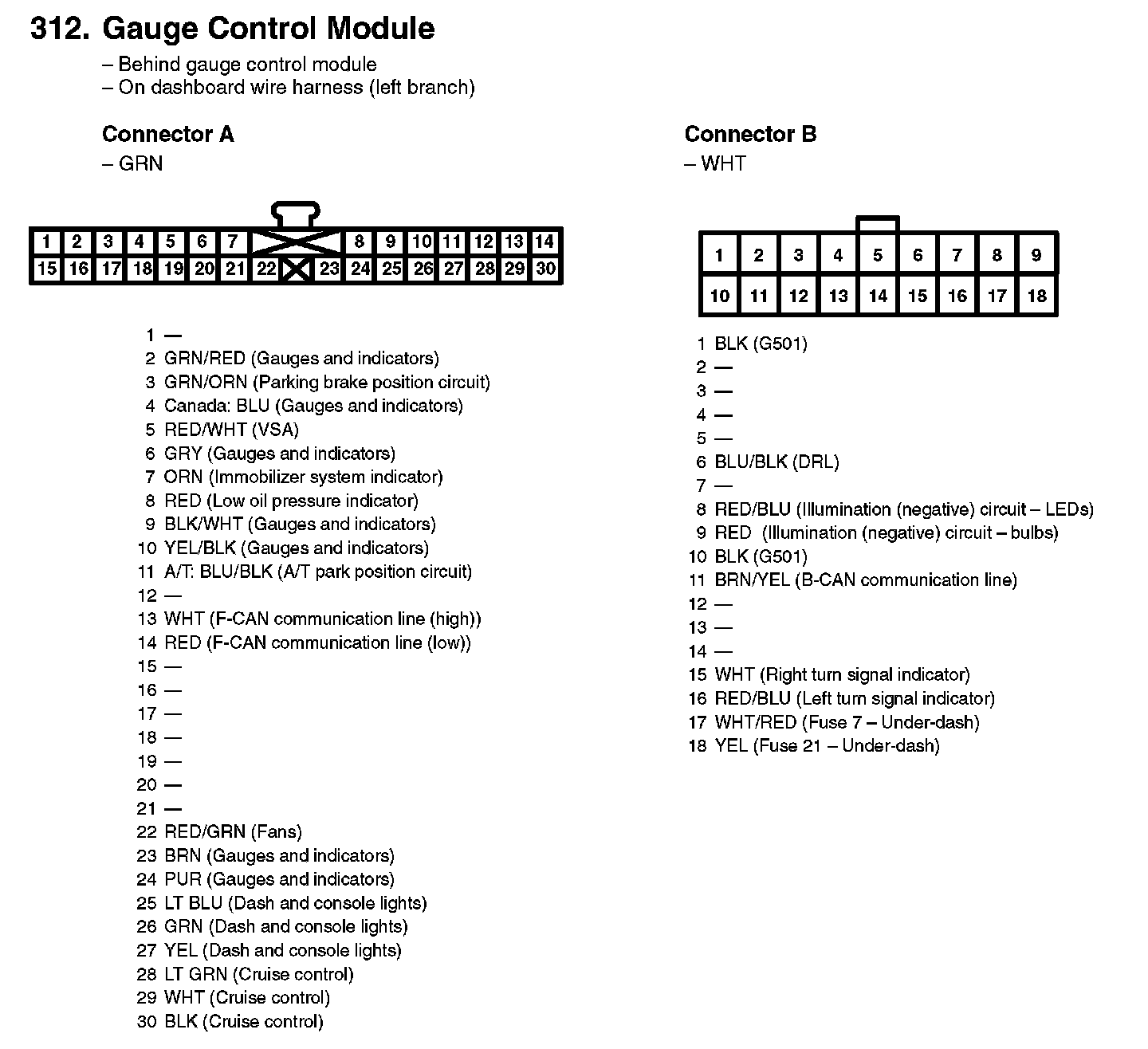

312. Gauge Control Module:
