Electronic Brake Control Module

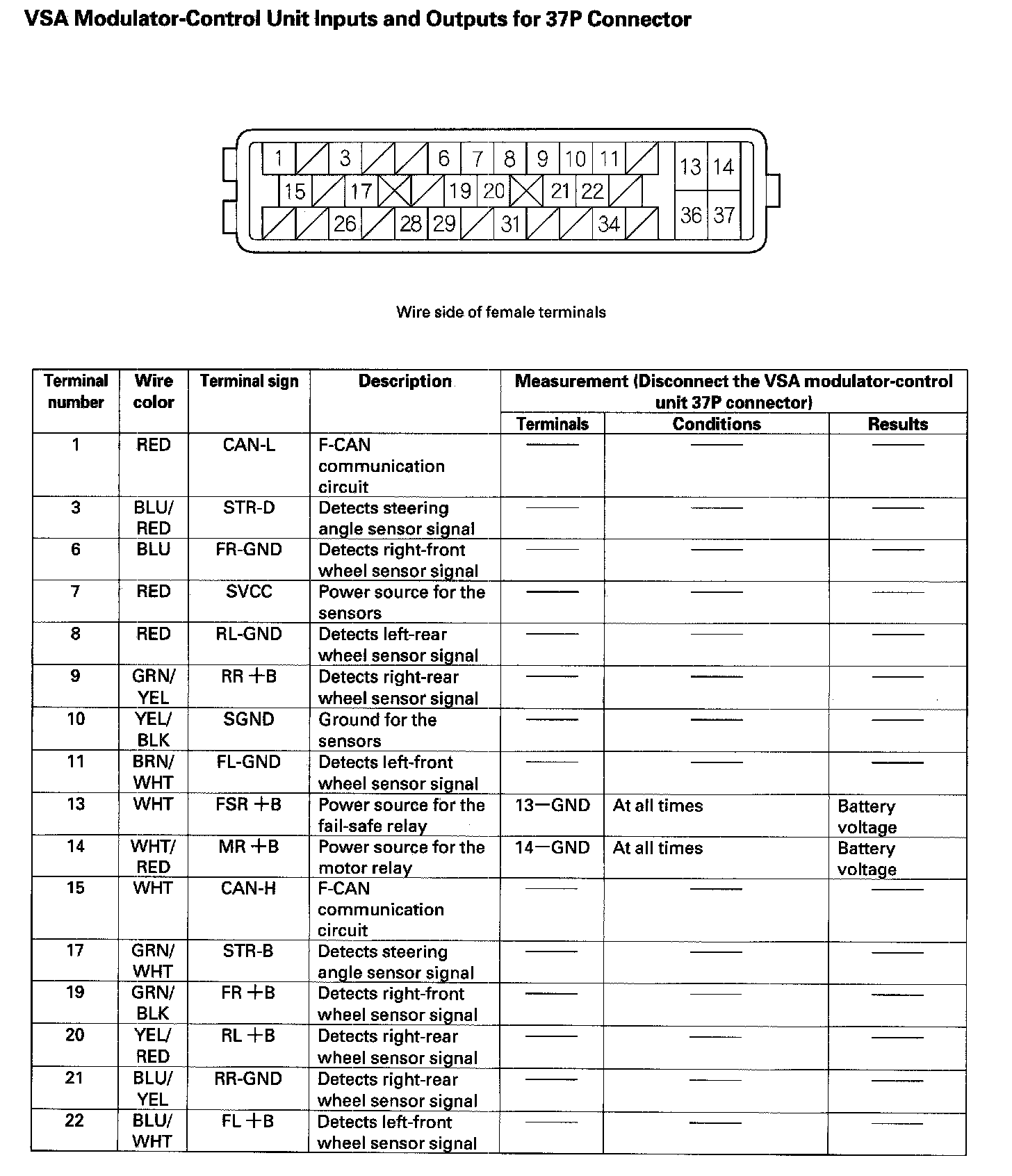

VSA Modulator-Control Unit Inputs and Outputs for 37P Connector (Part 1):

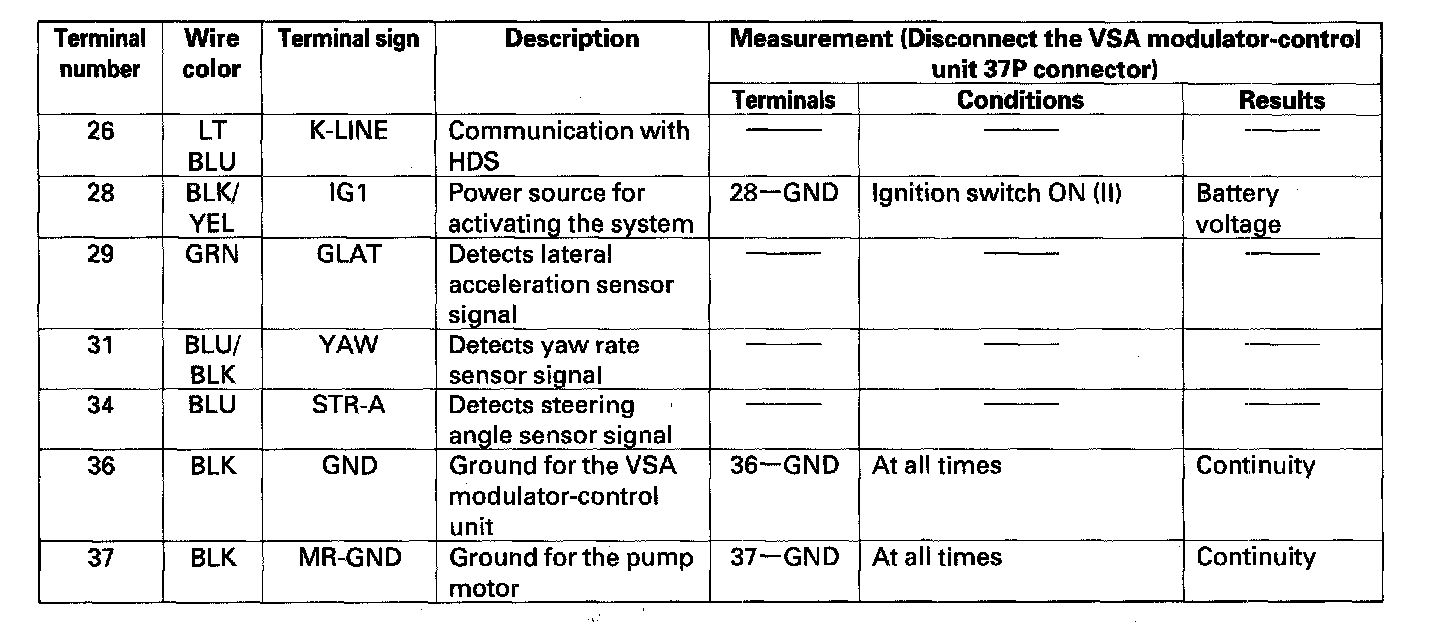

VSA Modulator-Control Unit Inputs and Outputs for 37P Connector (Part 2):
