Collision Avoidance Sensor

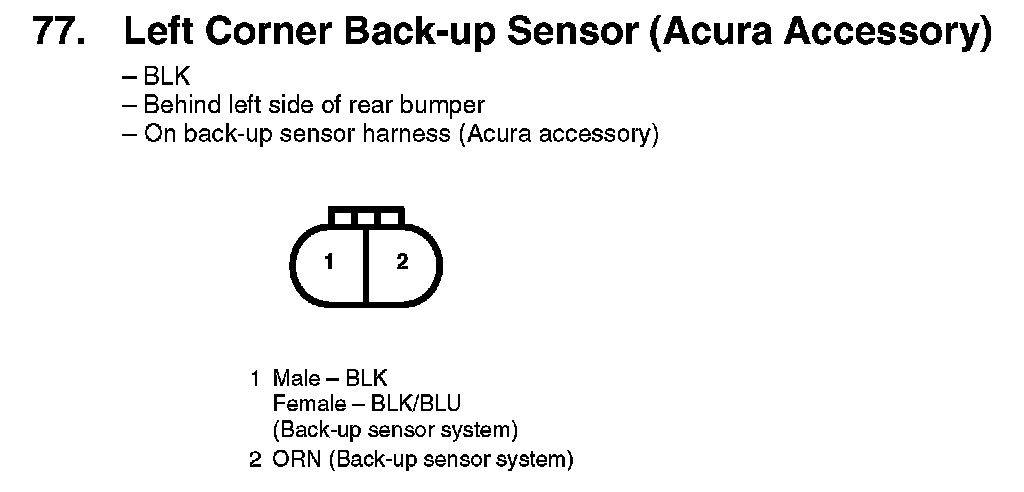

77. Left Corner Back-up Sensor (Acura Accessory):

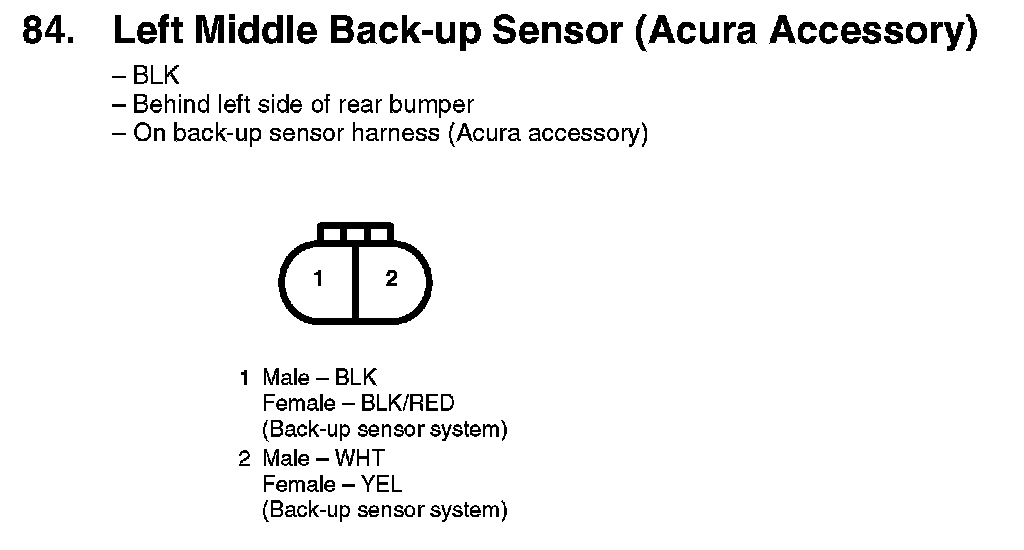

84. Left Middle Back-Up Sensor (Acura Accessory):

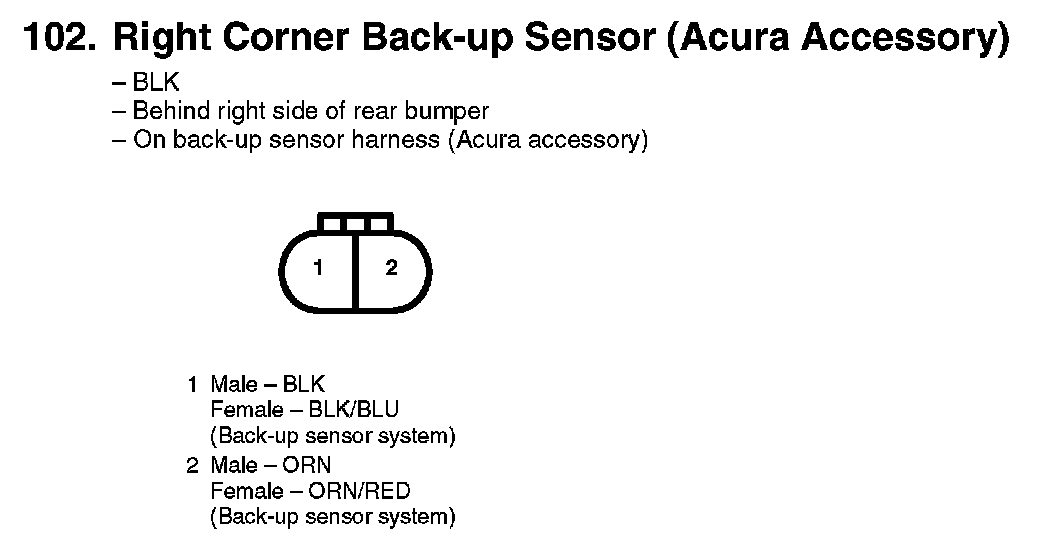

102. Right Corner Back-up Sensor (Acura Accessory):

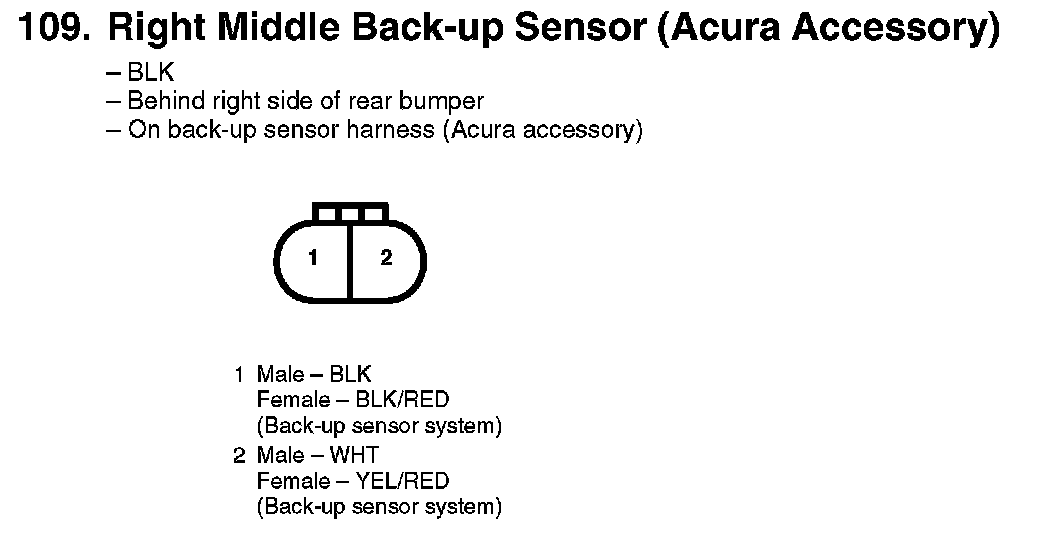

109. Right Middle Back-up Sensor (Acura Accessory):

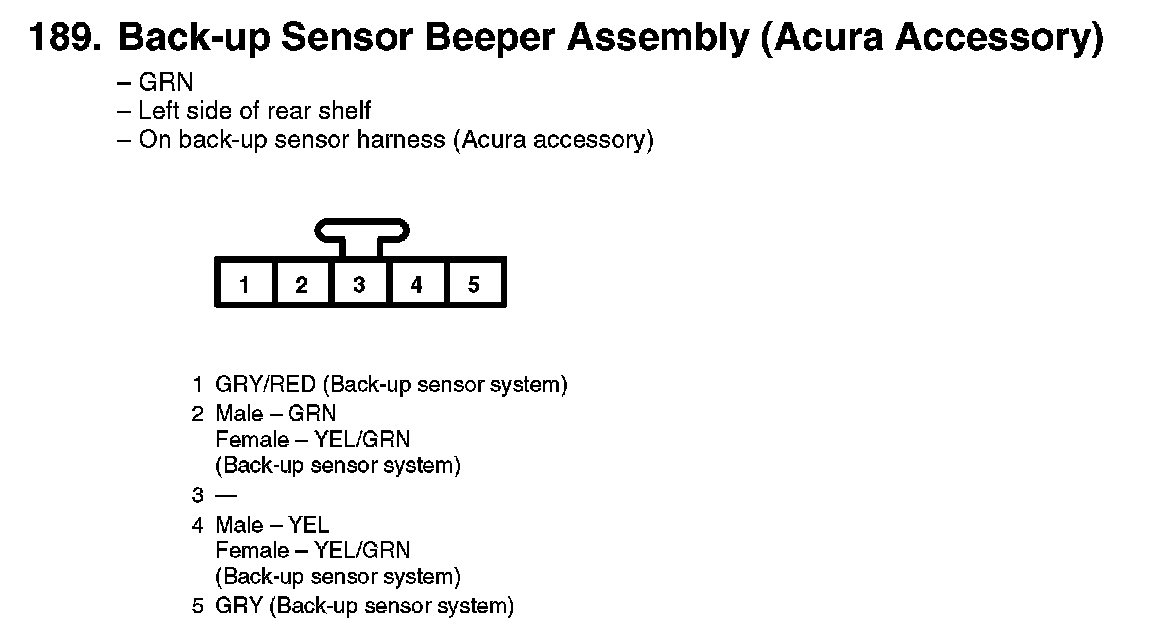

189. Back-up Sensor Beeper Assembly (Acura Accessory):
