Cabin Noise Cancellation Control Module
Cabin Noise Cancellation Control Module

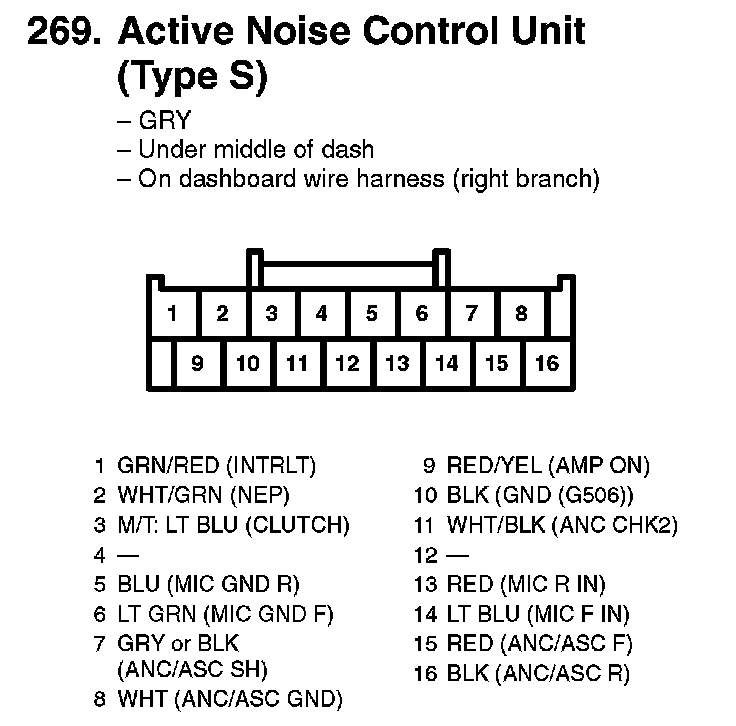

269. Actice Noise Control Unit (Type S):
