Body Control Module
Body Control Module

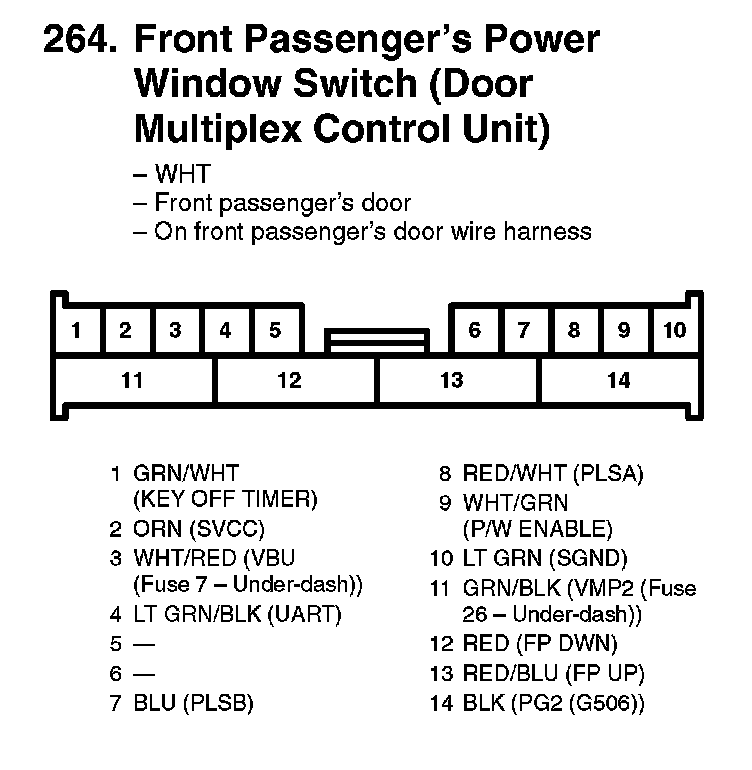

264. Front Passenger's Power Window Switch (Door Multiplex Control Unit):

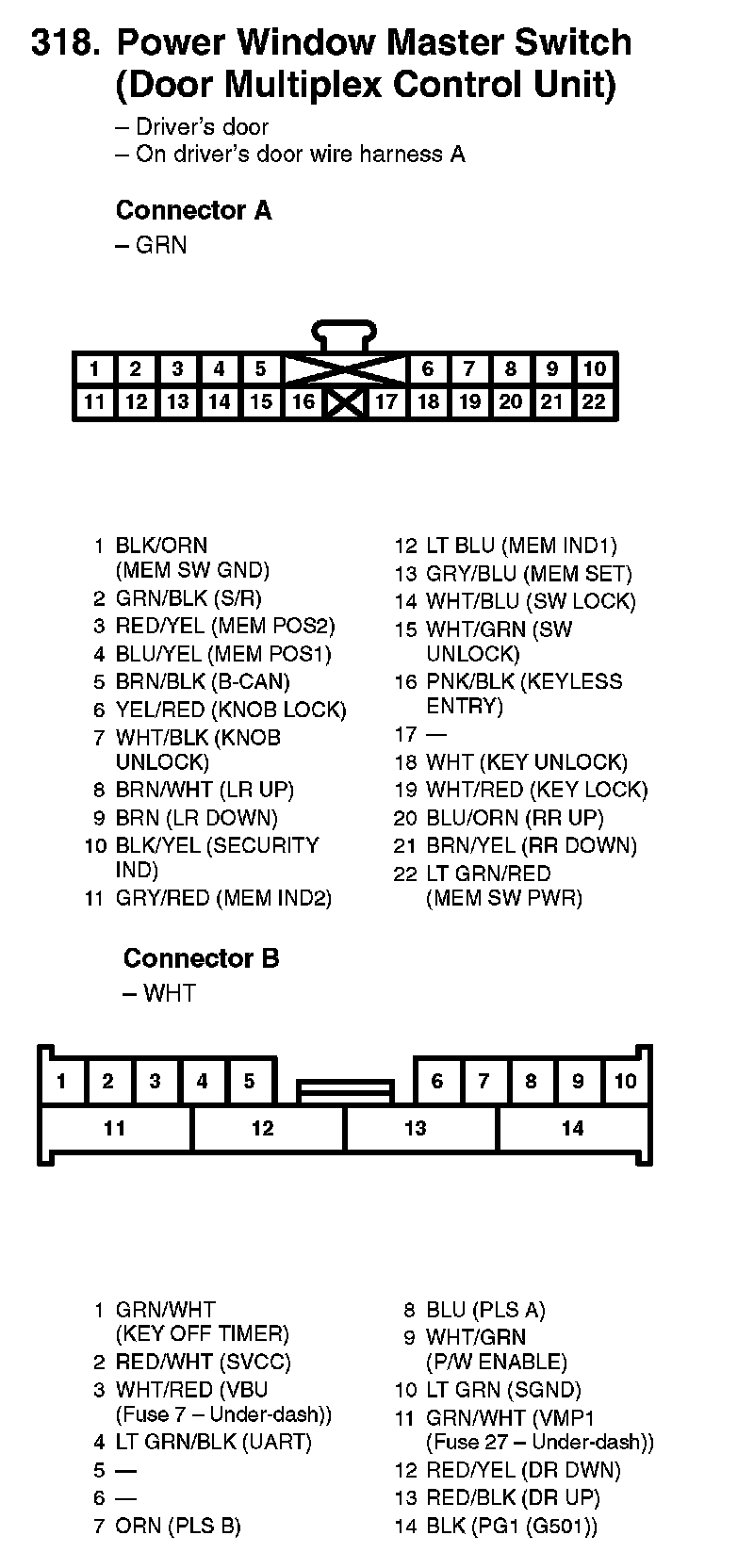

318. Power Window Master Switch (Door Multiplex Control Unit):
