Acura
>>
2007
>>
TL V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

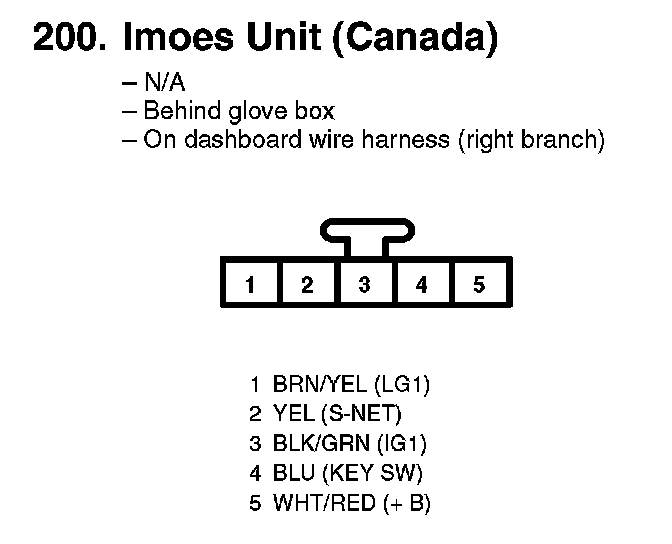

200. Imoes Unit (Canada):

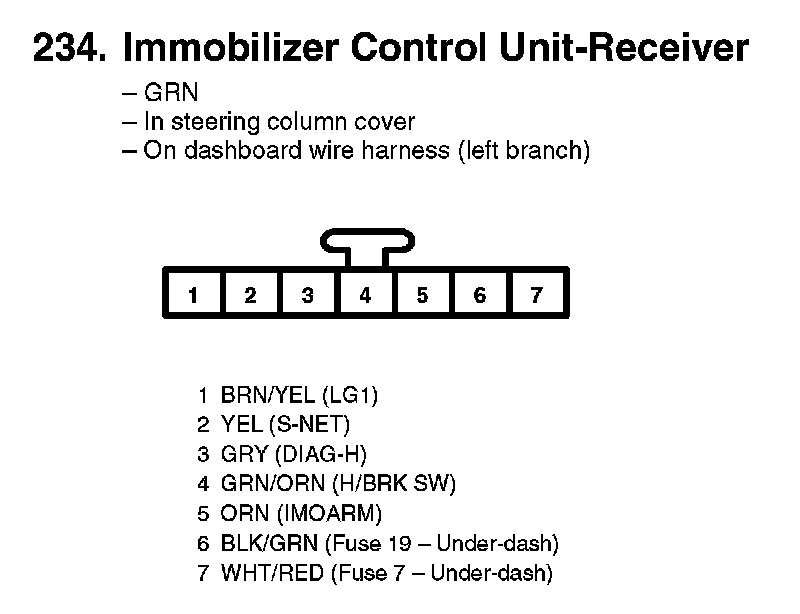

234. Immobilizer Control Unit-Receiver:
