Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

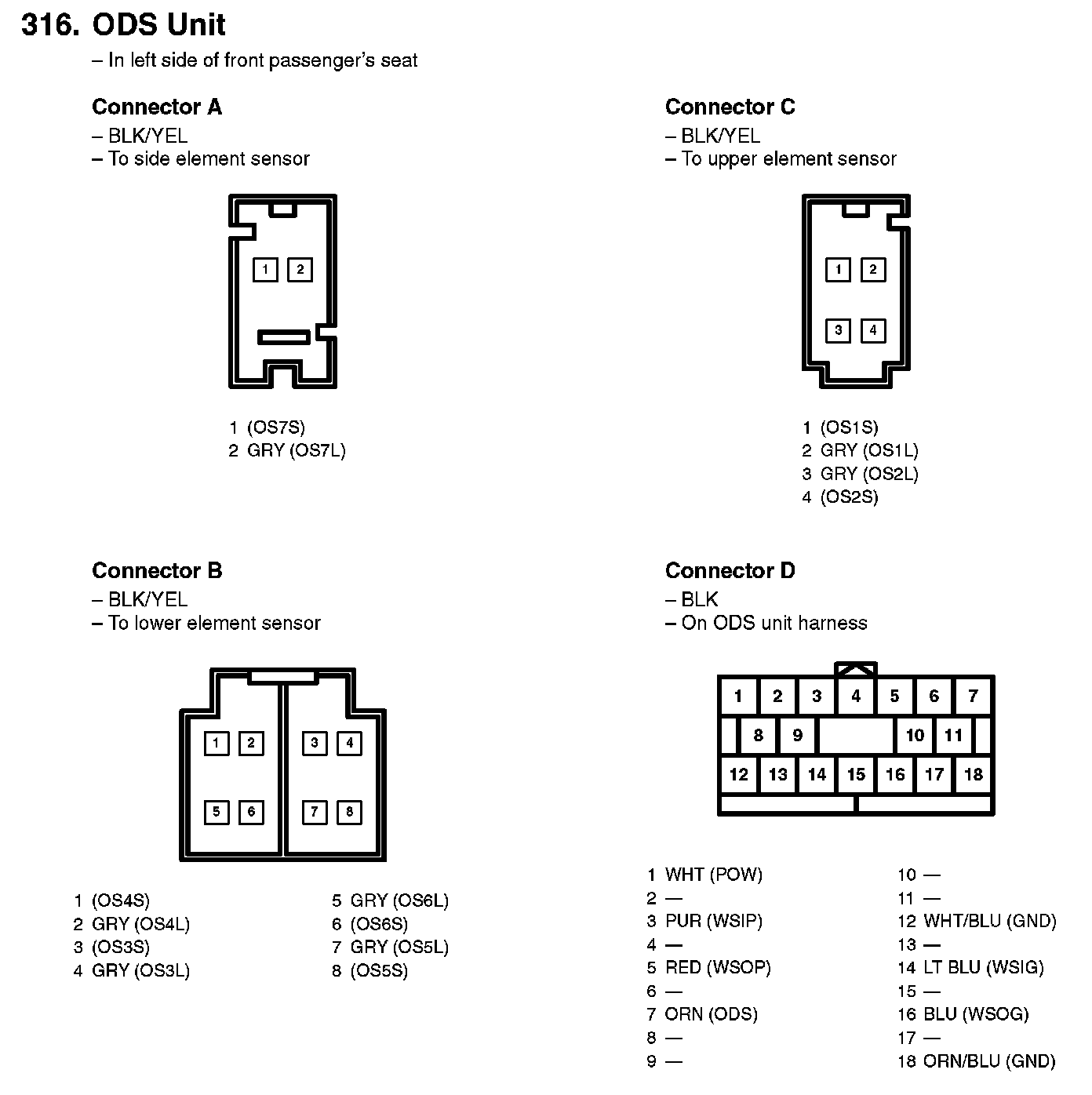

316. ODS Unit:

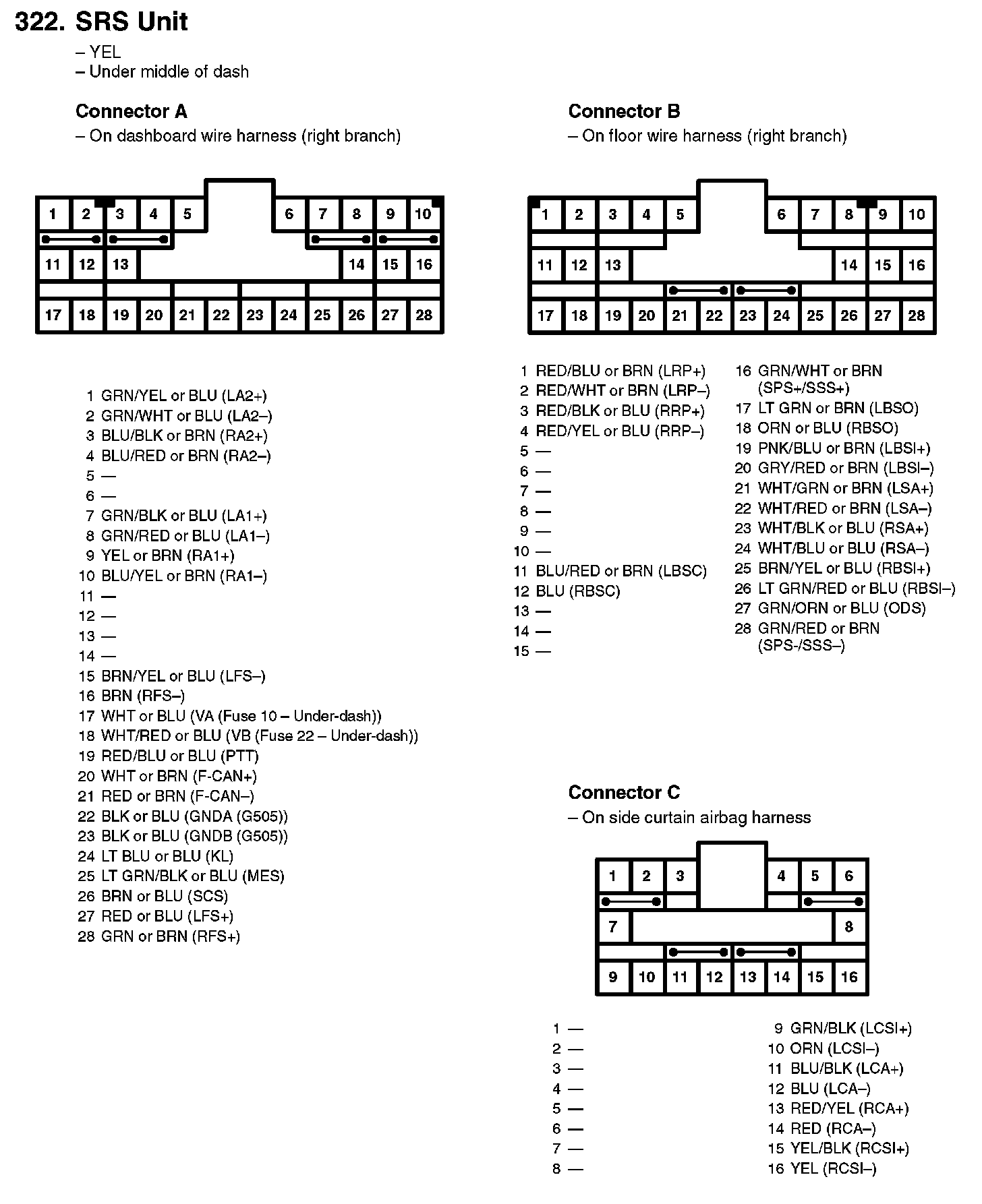

322. SRS Unit:
