Body Control Module: Locations

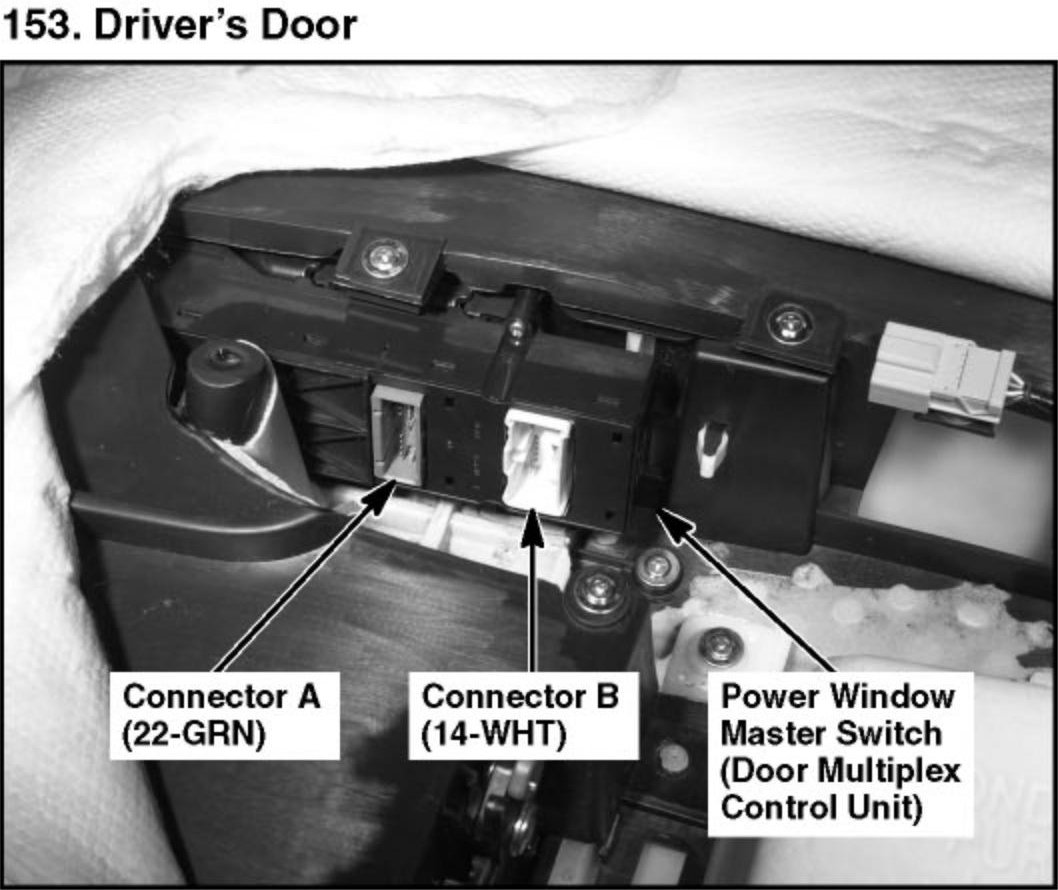

153. Driver's Door:

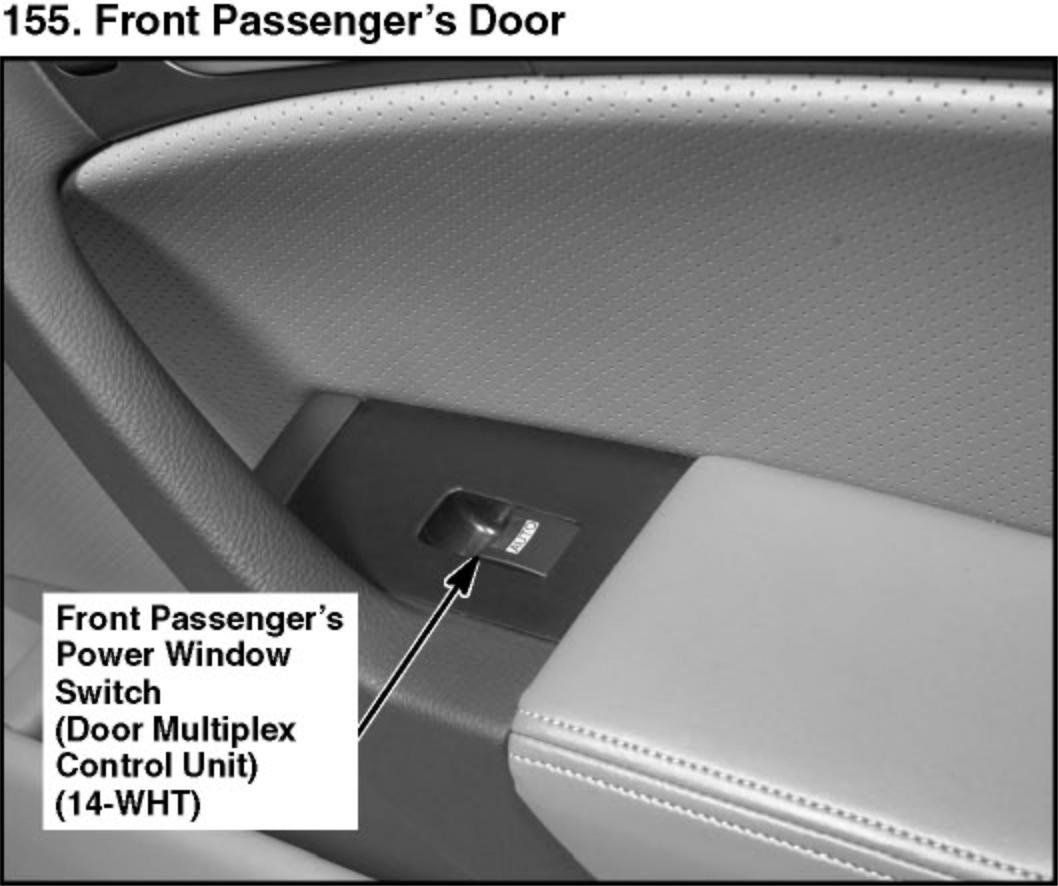

155. Front Passenger's Door:

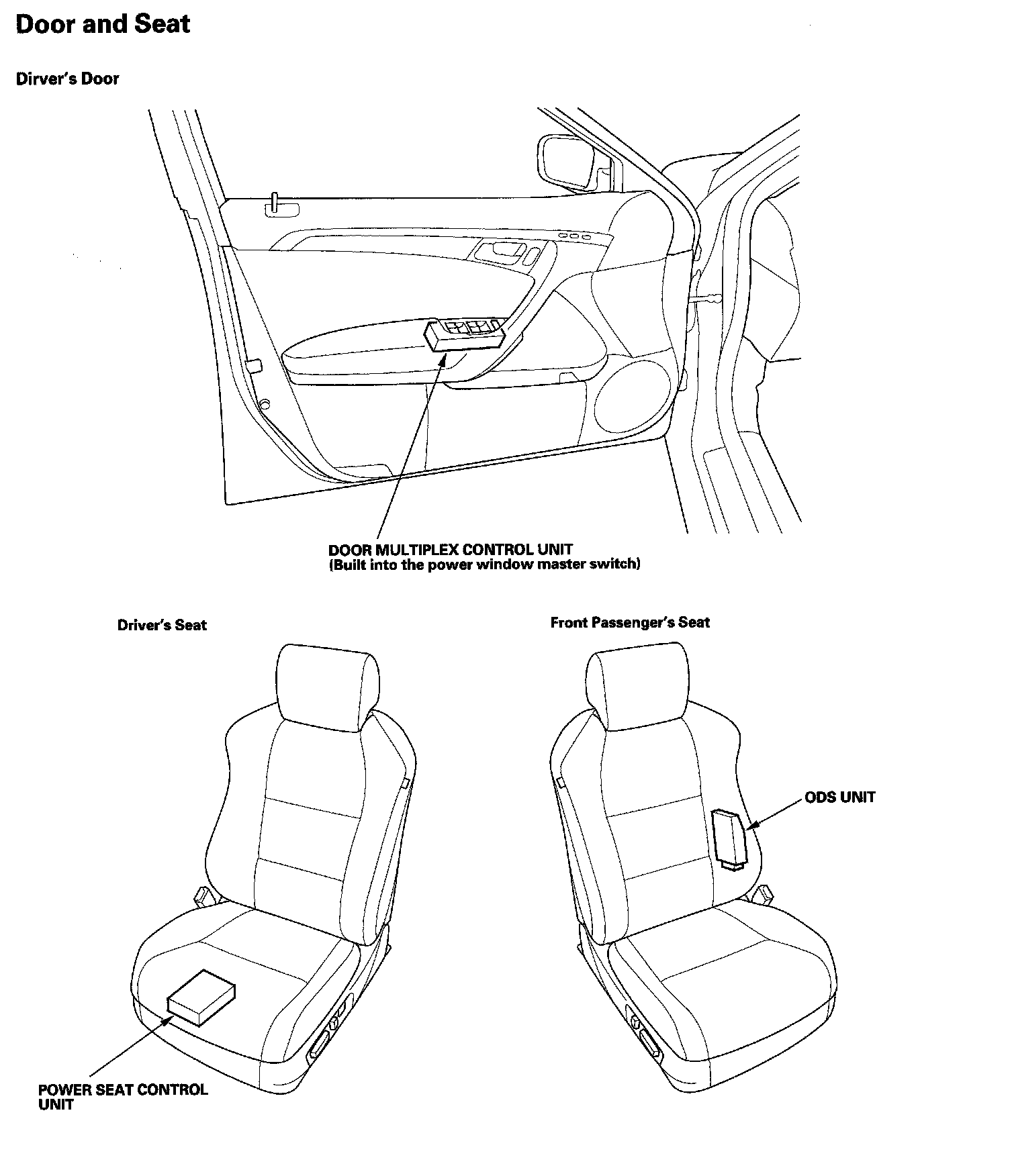

Relay and Control Unit Locations Door And Seat:

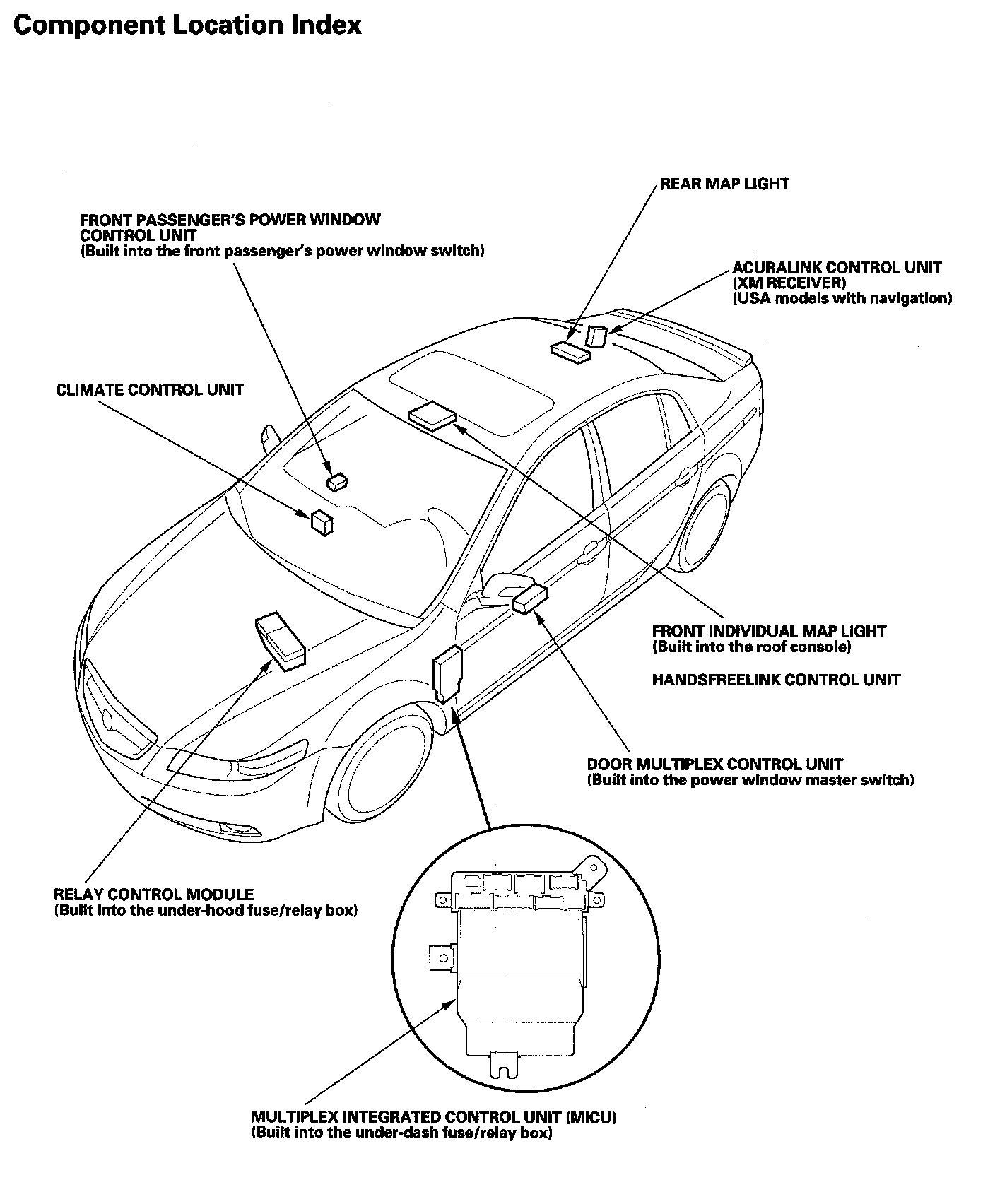

Multiplex Integrated Control System Component Location Index:

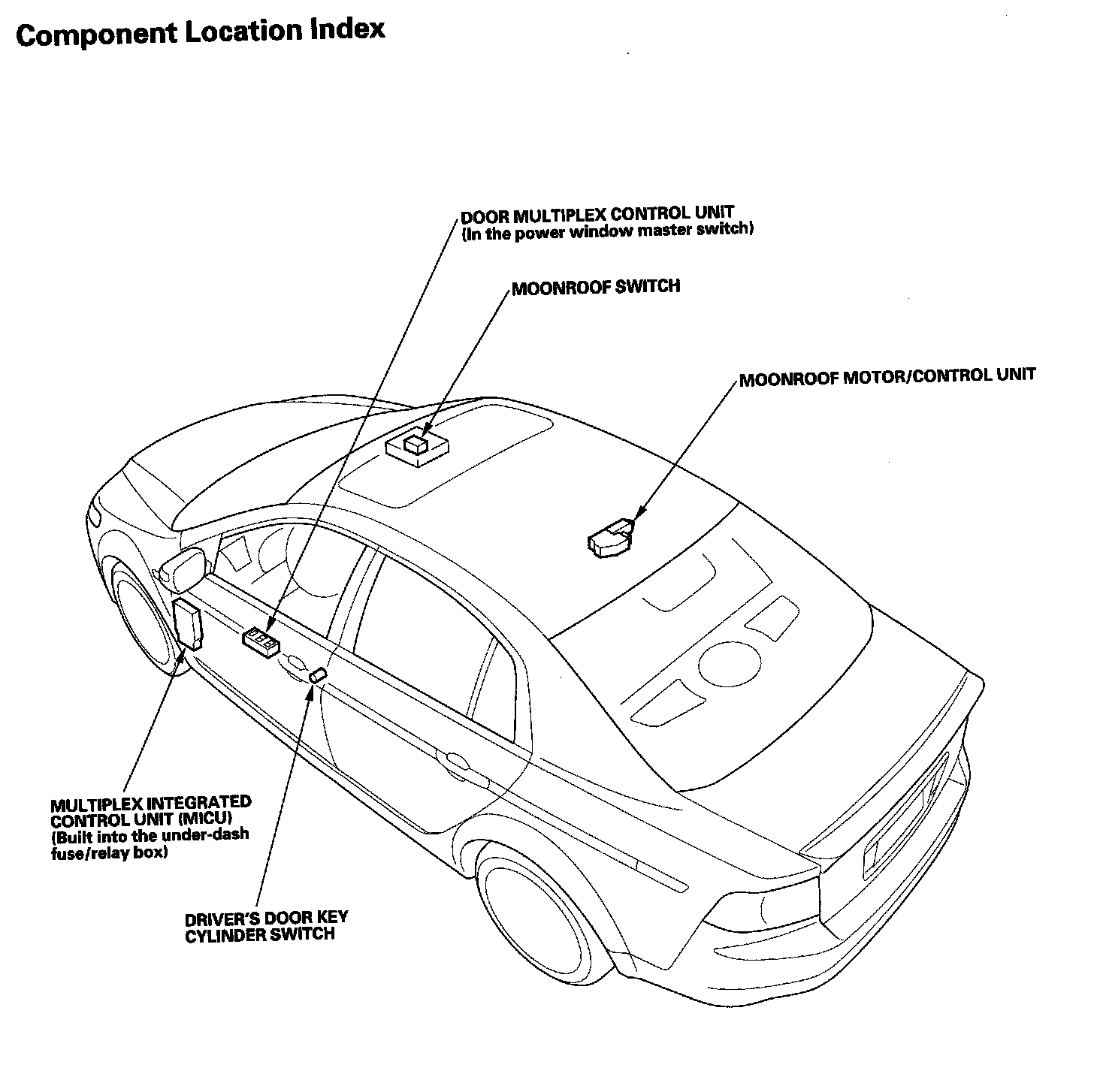

Moonroof Component Location Index:
