Home >> Acura >> 2004 >> TL V6-3.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> ECM/PCM

ECM/PCM

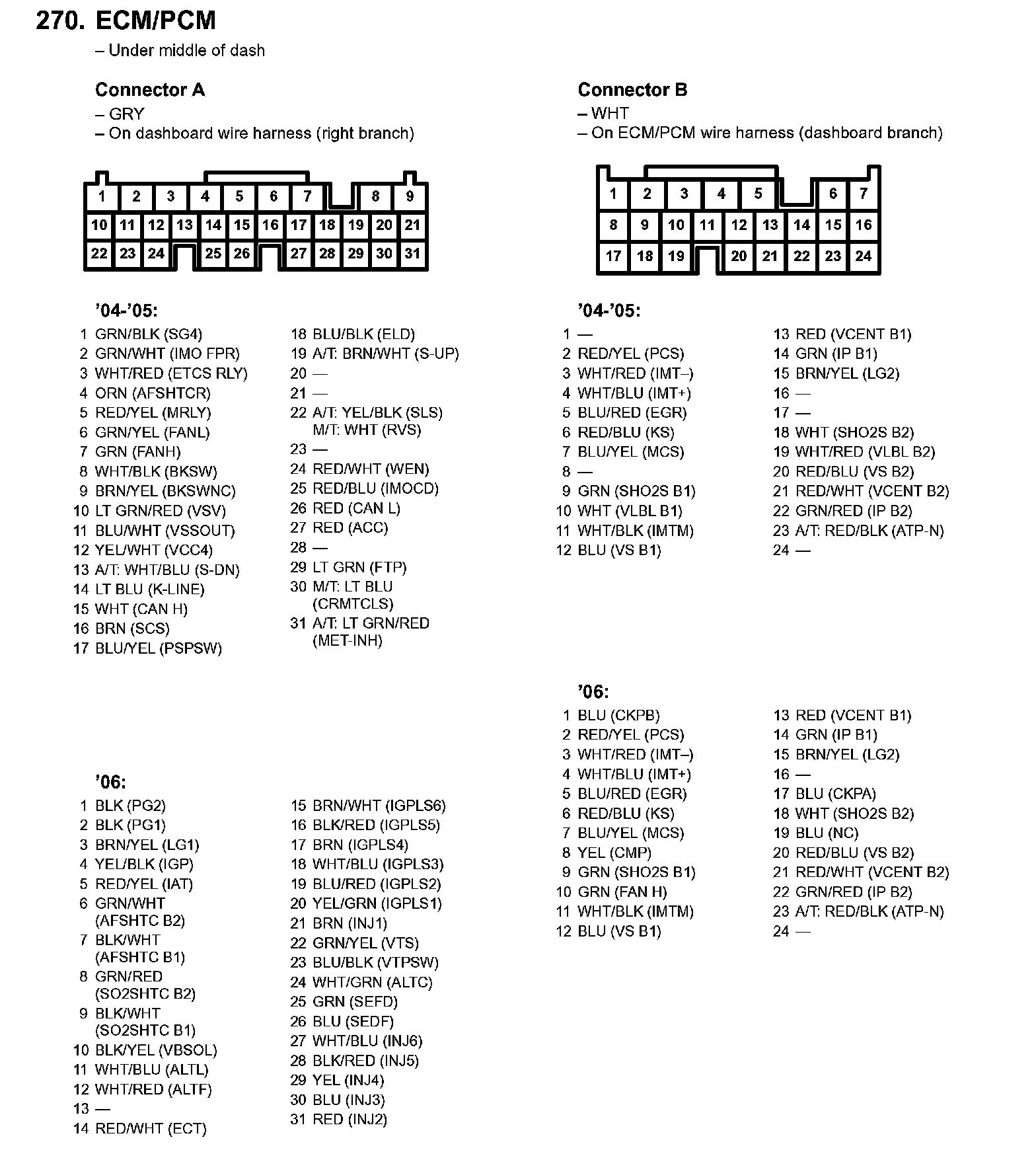

270. ECM/PCM:

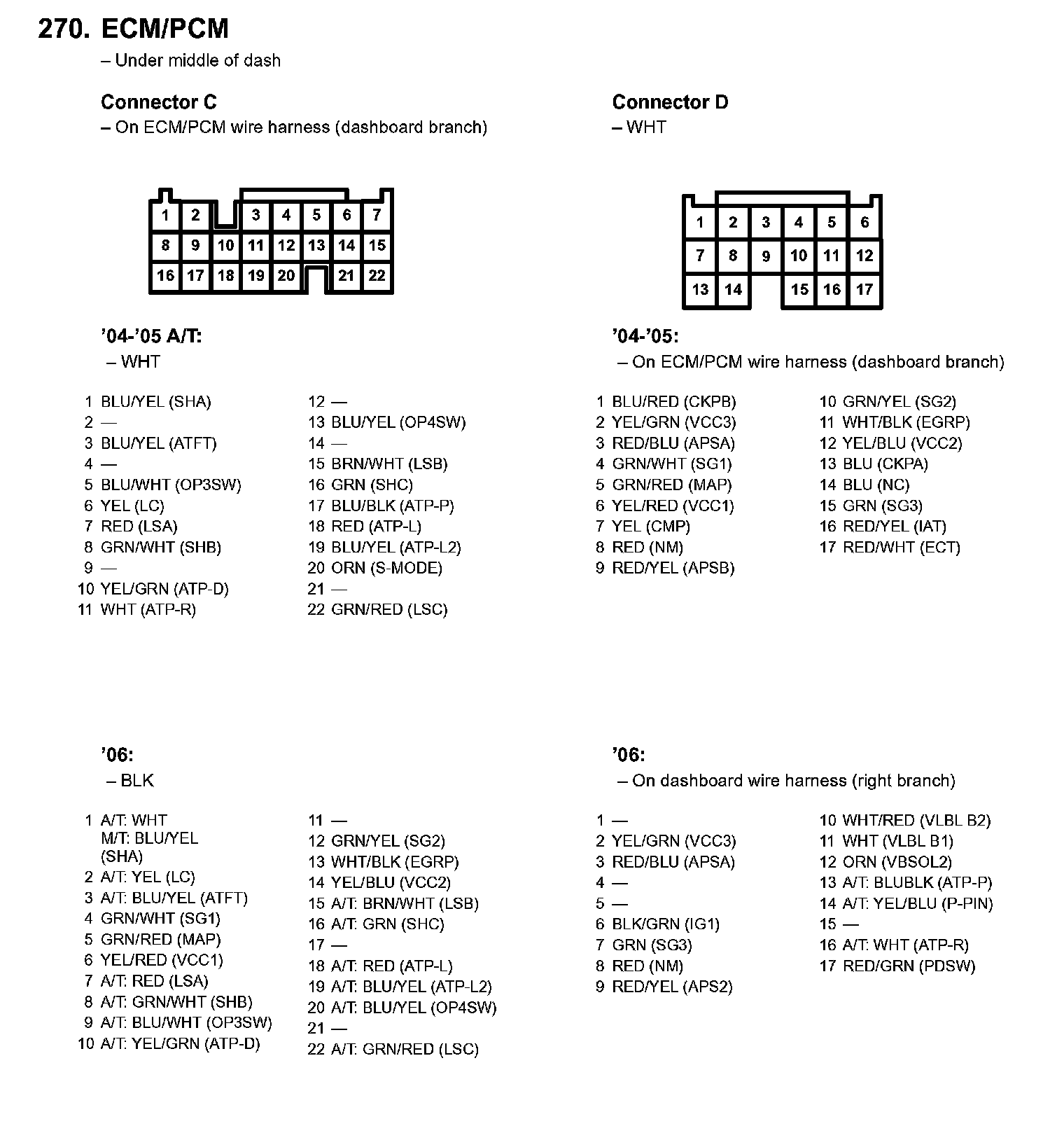

270. ECM/PCM:



270. ECM/PCM:
