Home >> Acura >> 2004 >> TL V6-3.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Control Module >> Diagrams

Electronic Throttle Control Module: Diagrams

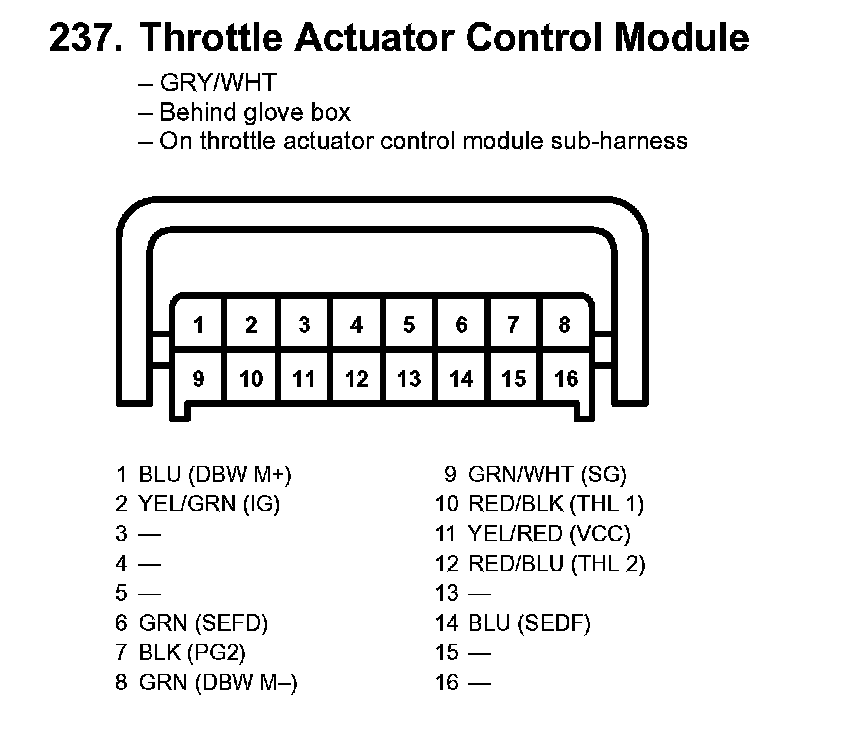

237. Throttle Actuator Control Module:
