Throttle Actuator Control Module Subharness

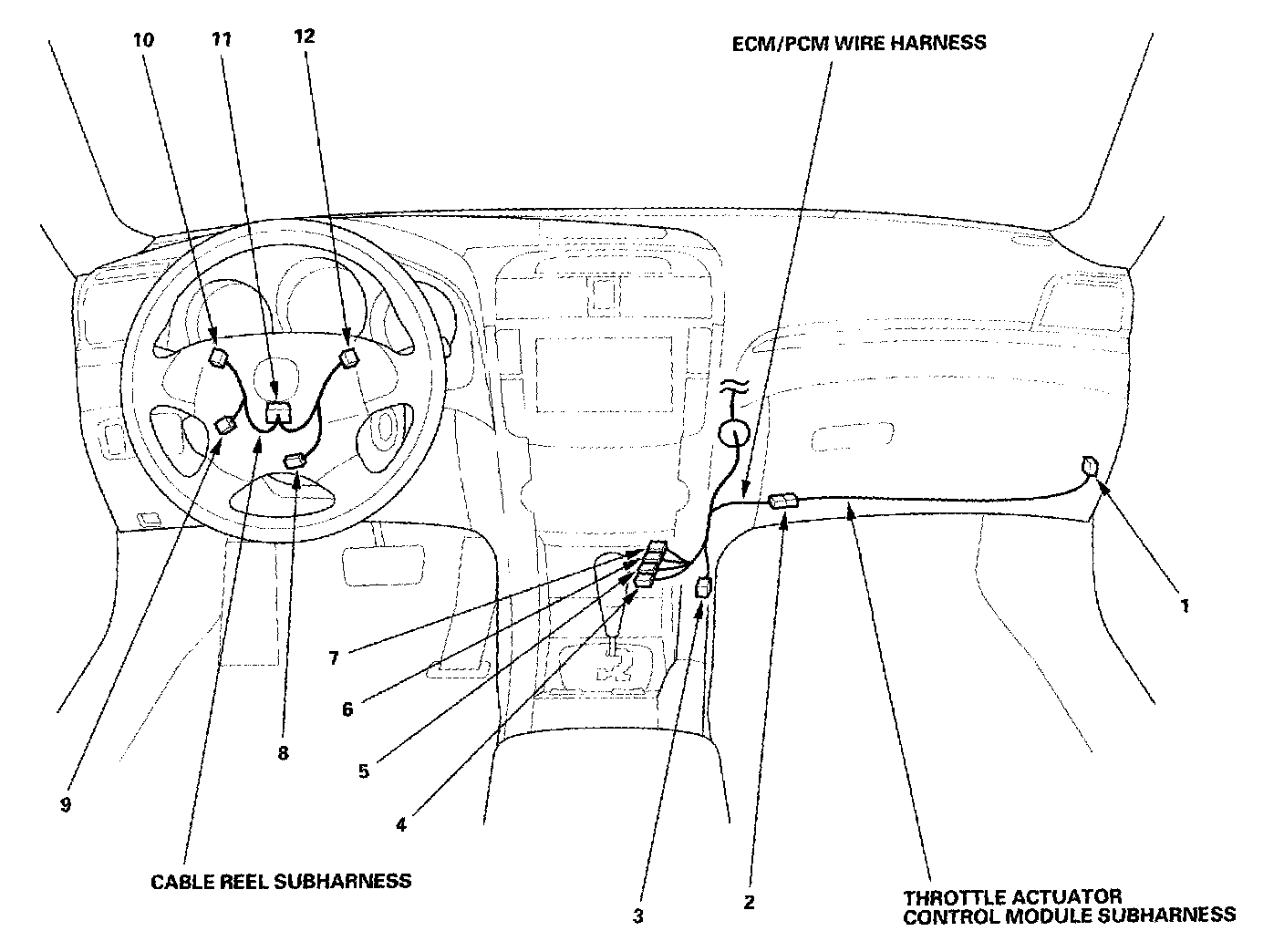

Harness Location View:

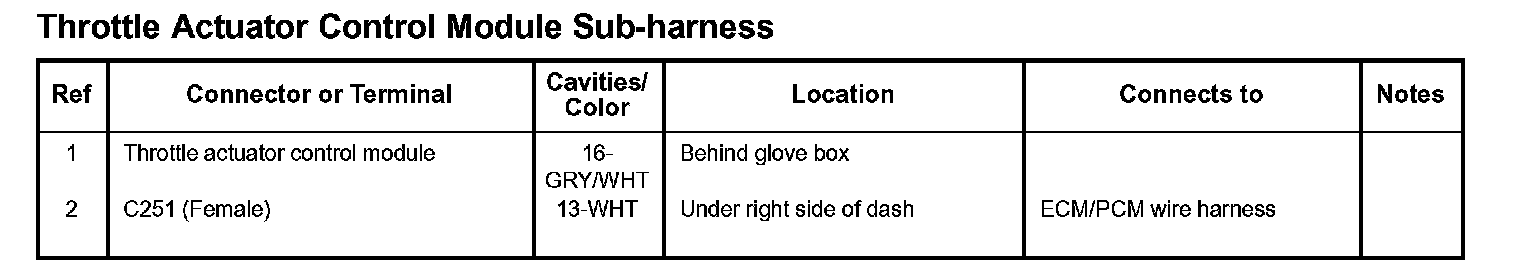

Throttle Actuator Control Module Sub-harness:

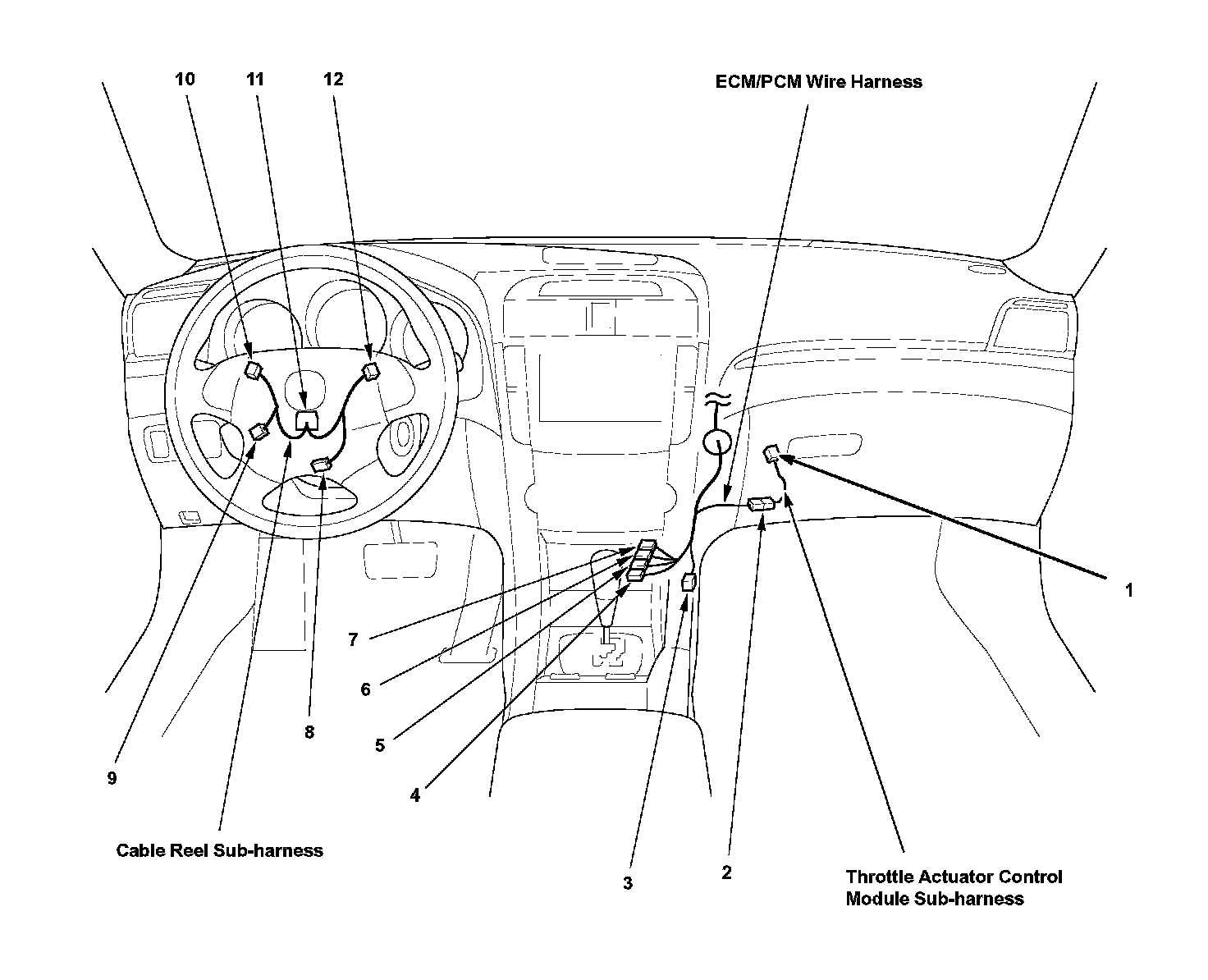

Harness Location View:

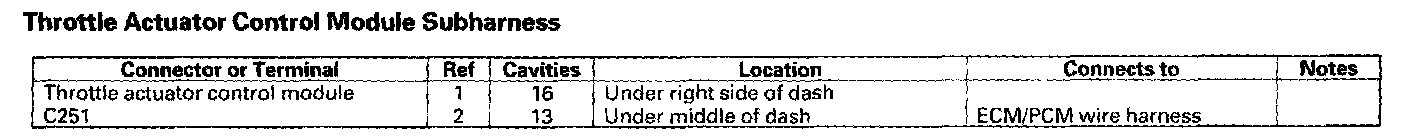

Throttle Actuator Control Module Subharness:
