Wheel Speed Sensor

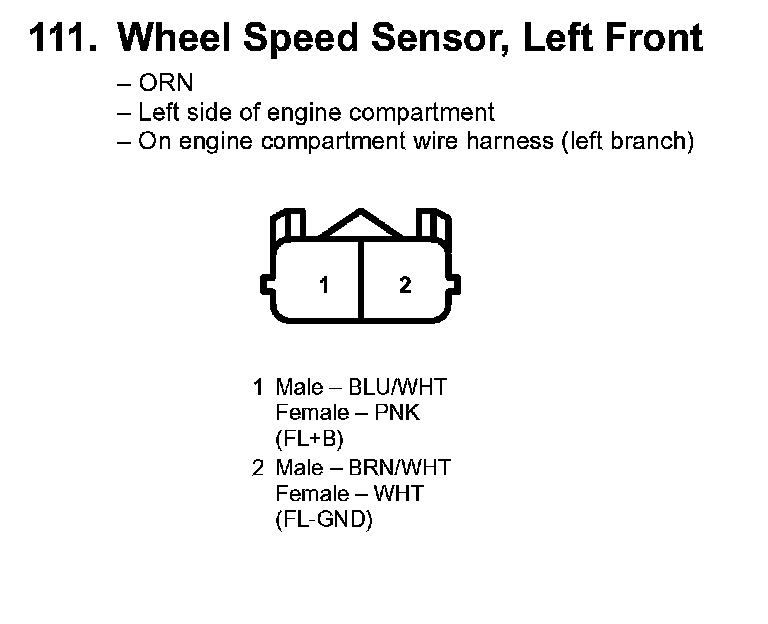

111. Wheel Speed Sensor, Left Front:

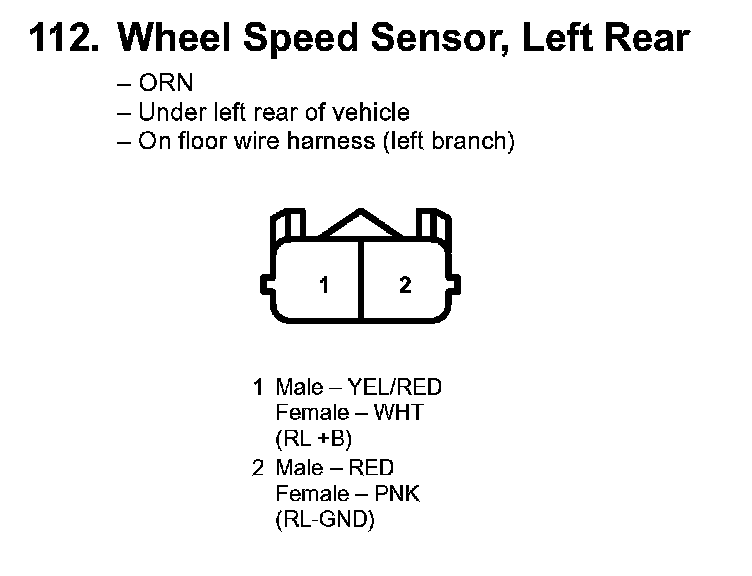

112. Wheel Speed Sensor, Left Rear:

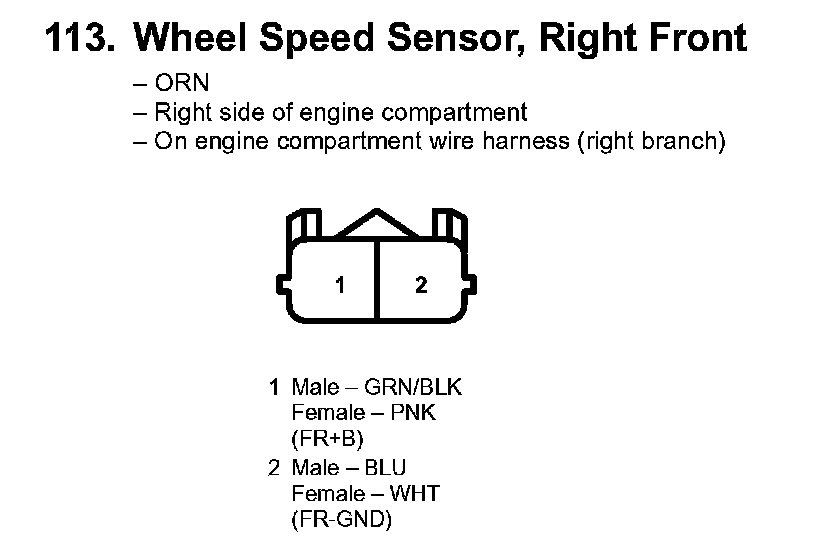

113. Wheel Speed Sensor, Right Front:

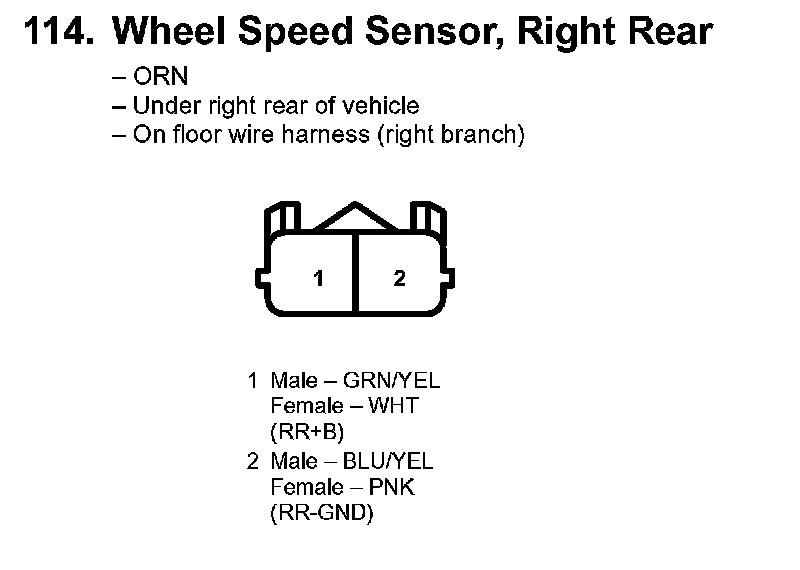

114. Wheel Speed Sensor, Right Rear:
