Relay Box

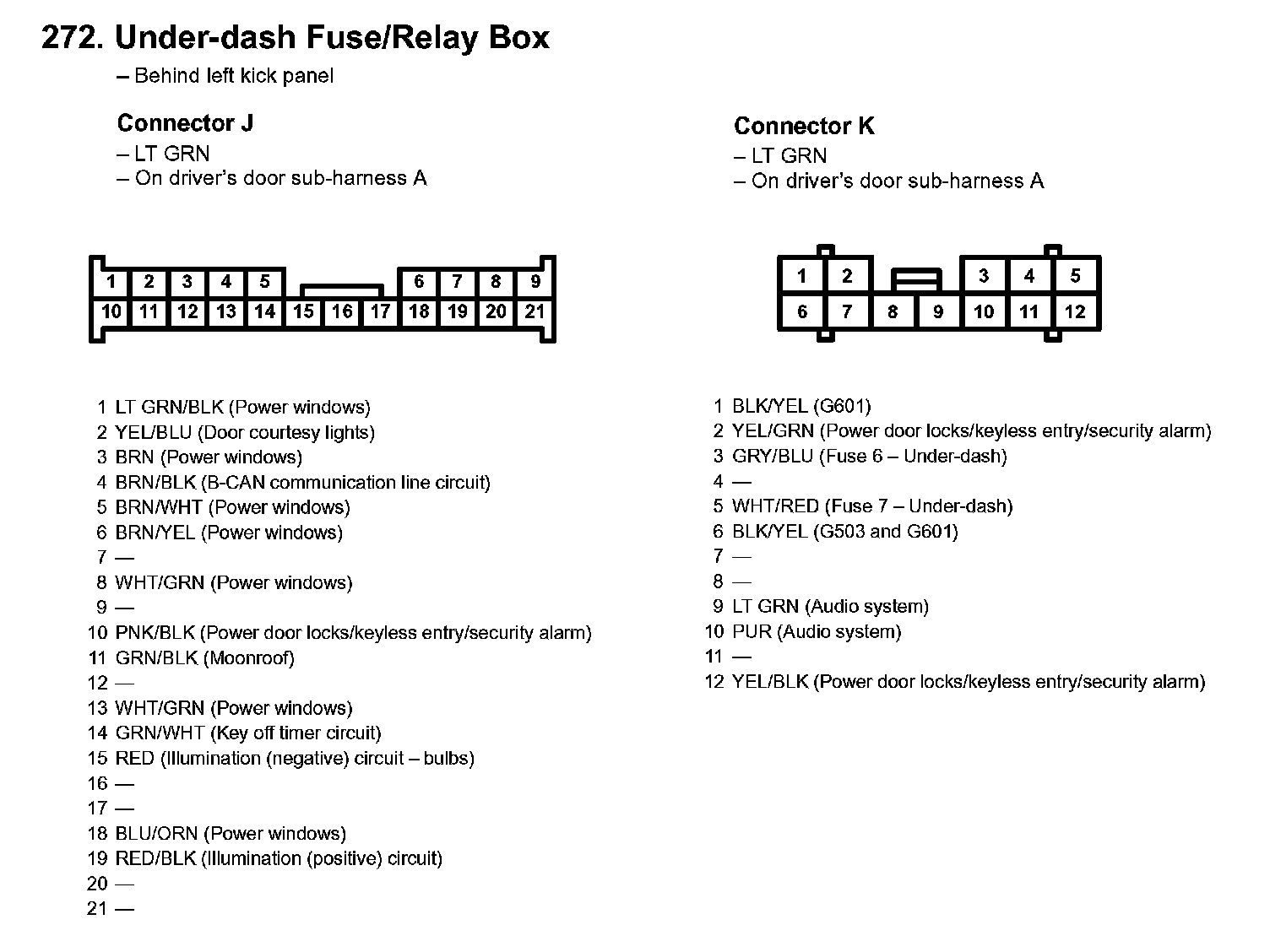

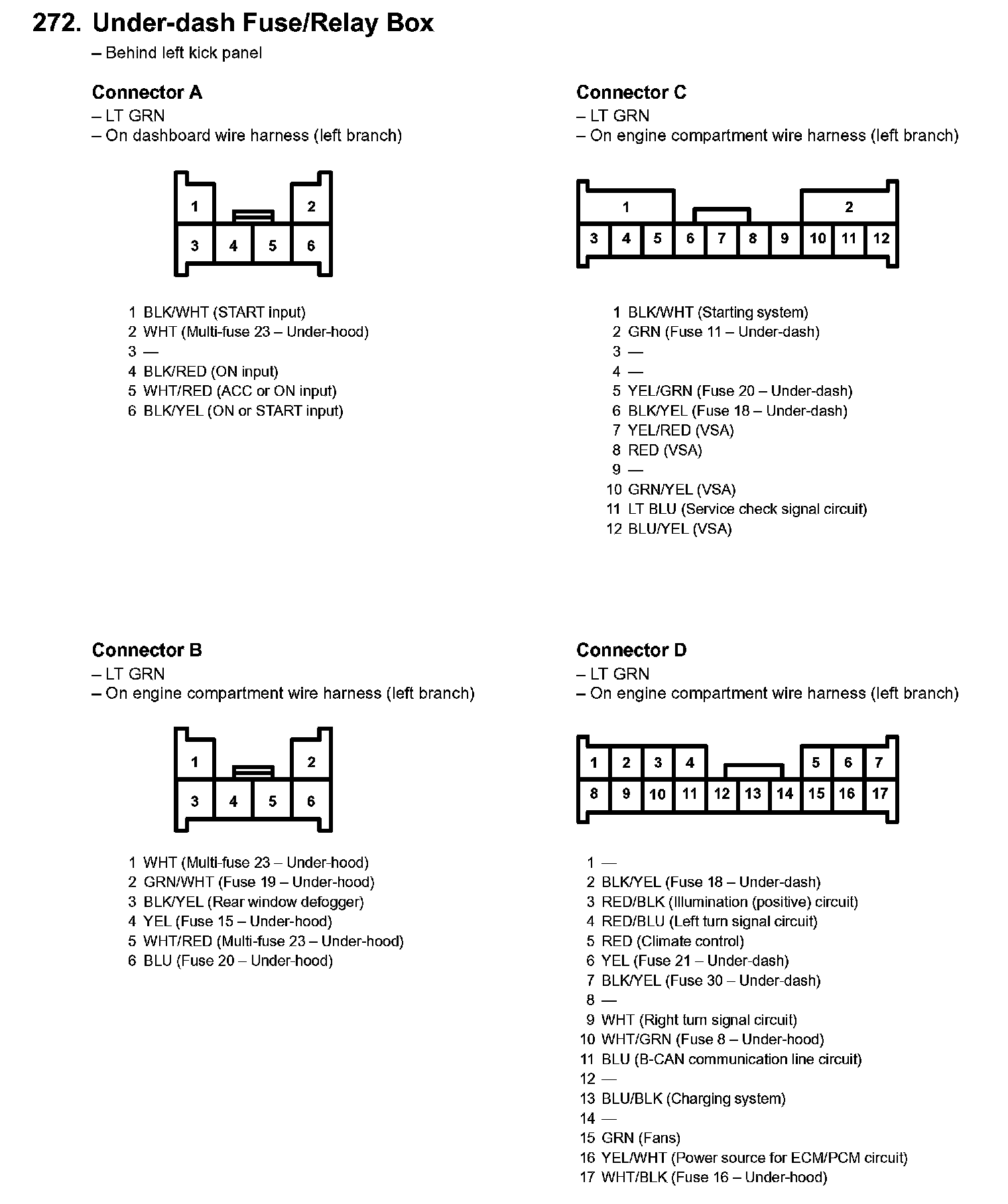

272. Under-dash Fuse/Relay Box:

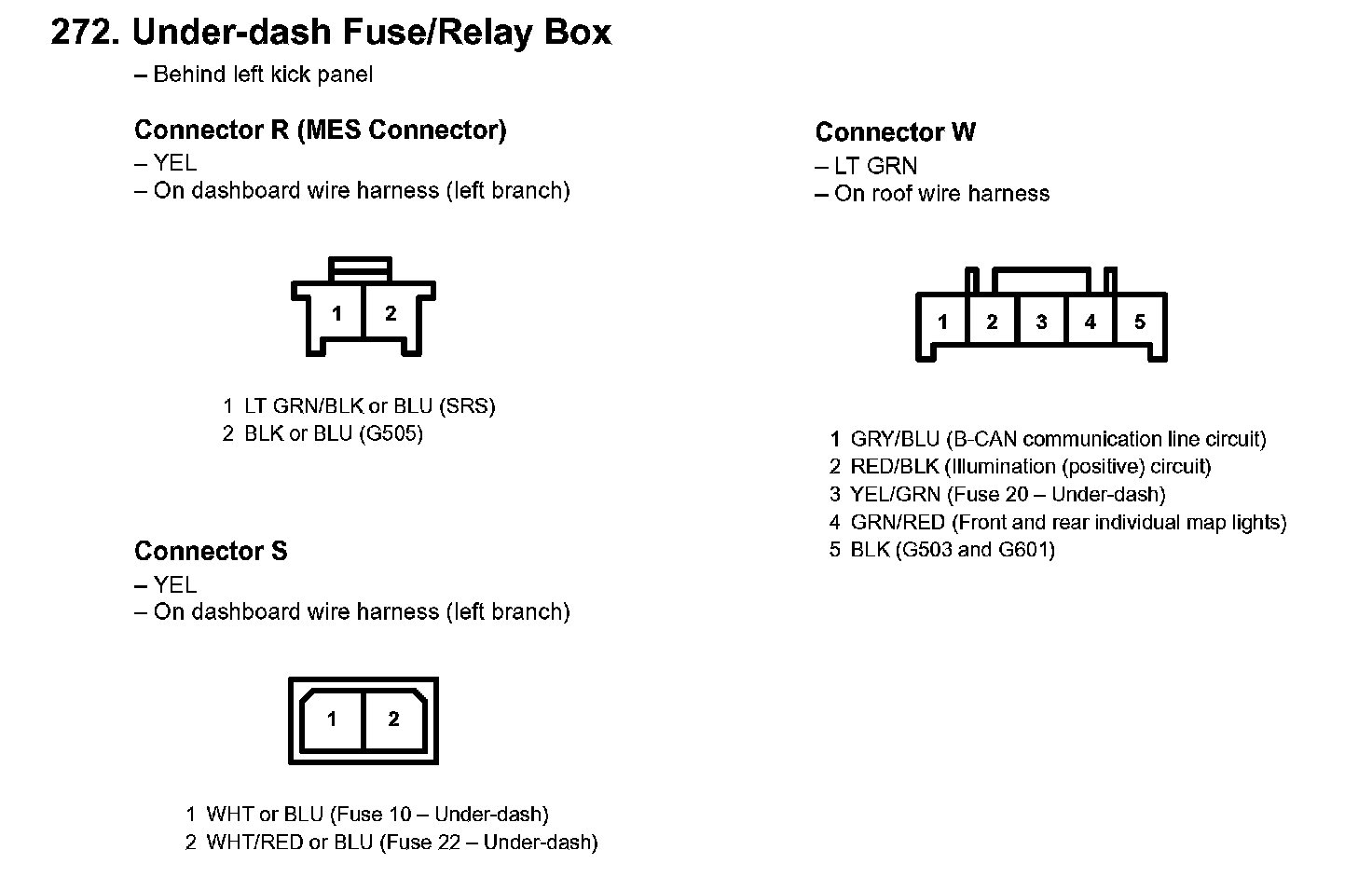

272. Under-dash Fuse/Relay Box:

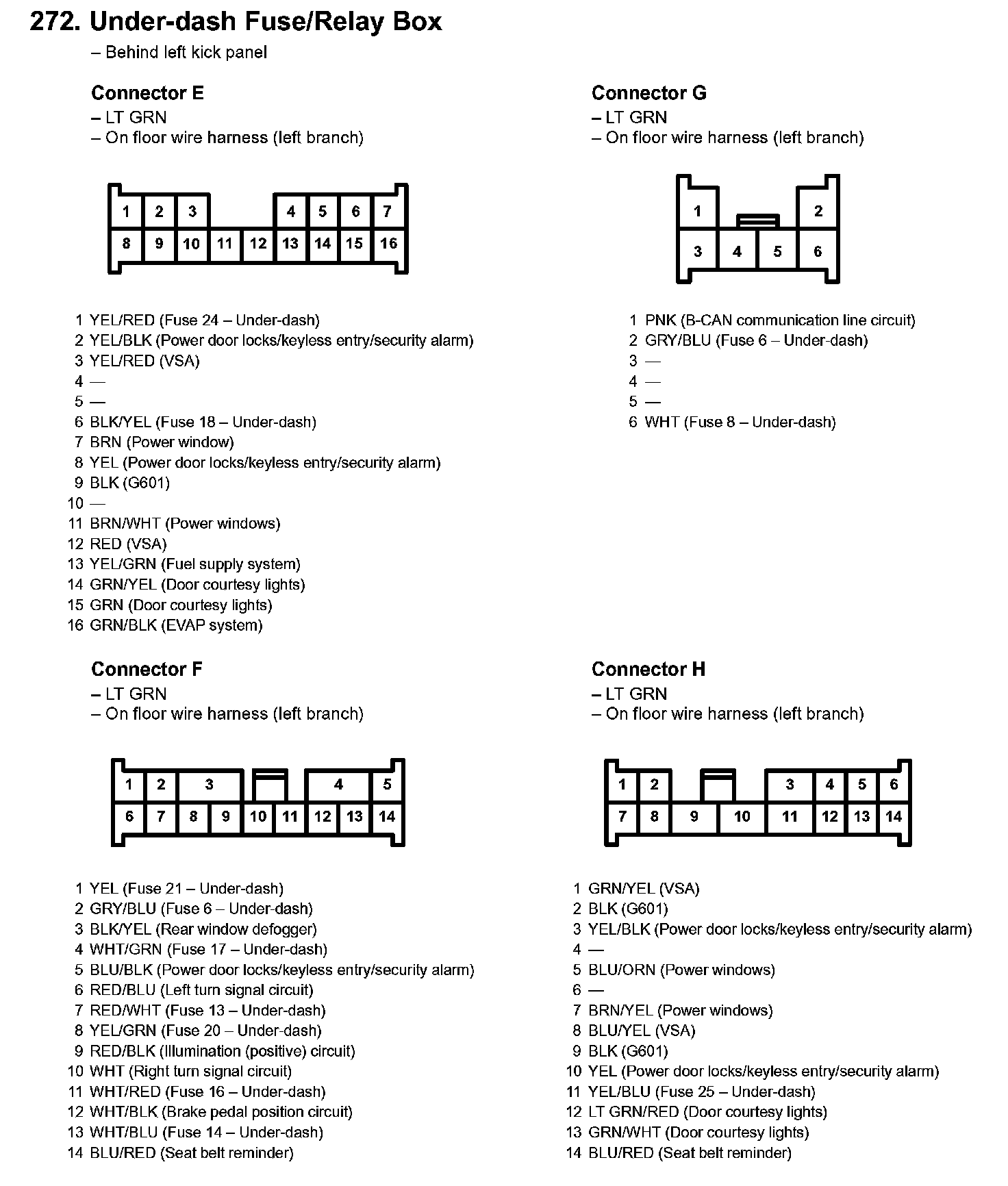

272. Under-dash Fuse/Relay Box:

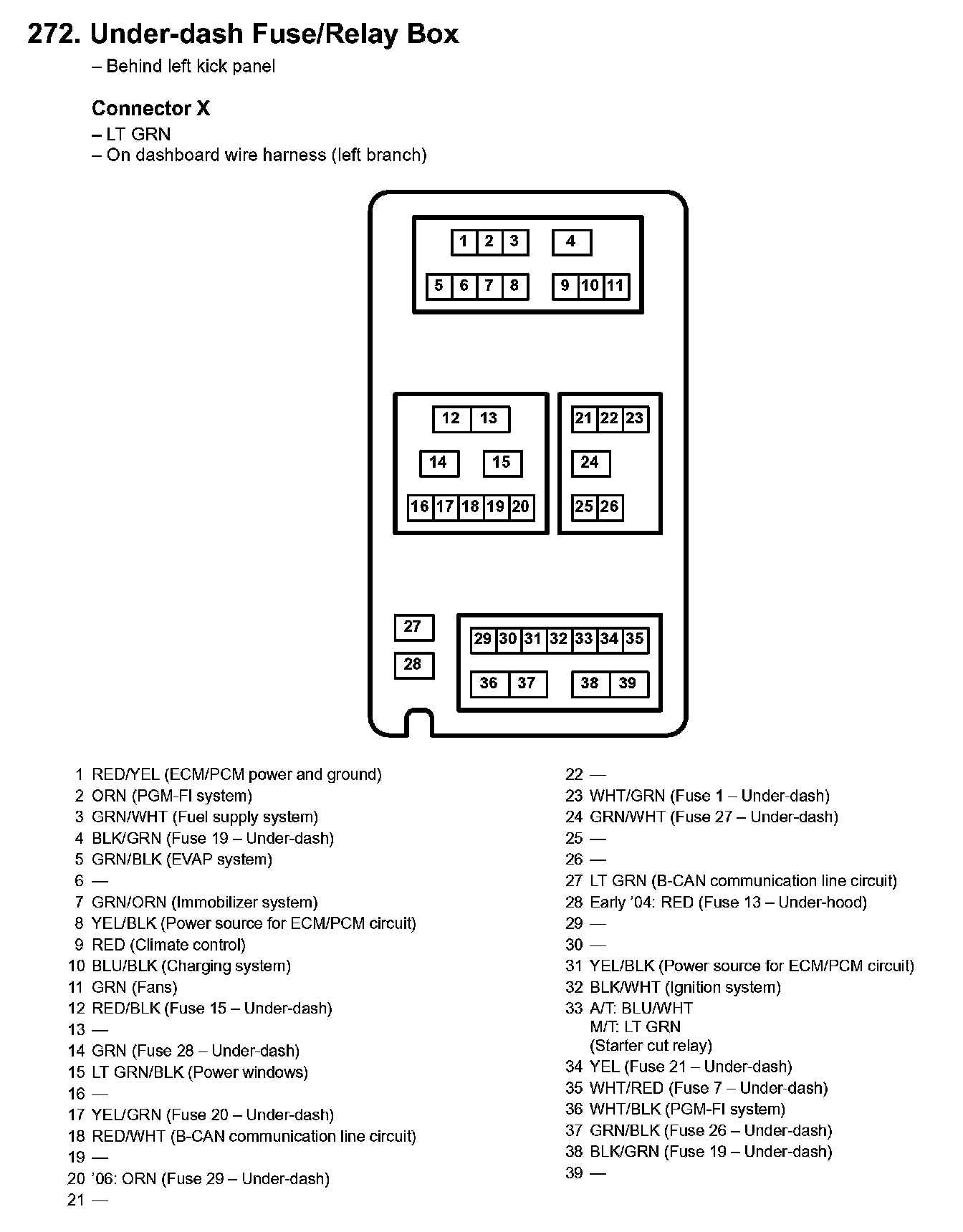

272. Under-dash Fuse/Relay Box:

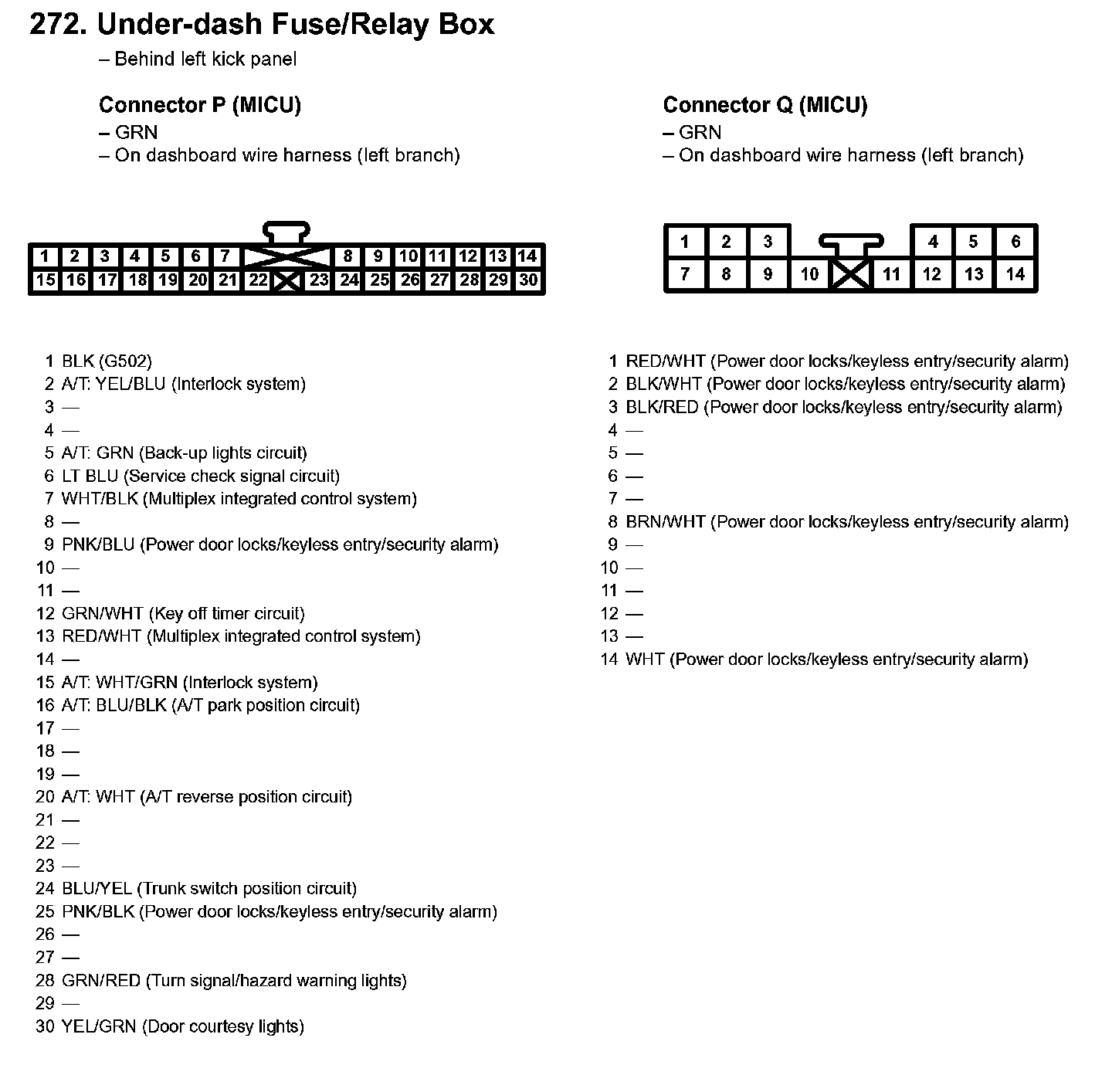

272. Under-dash Fuse/Relay Box:

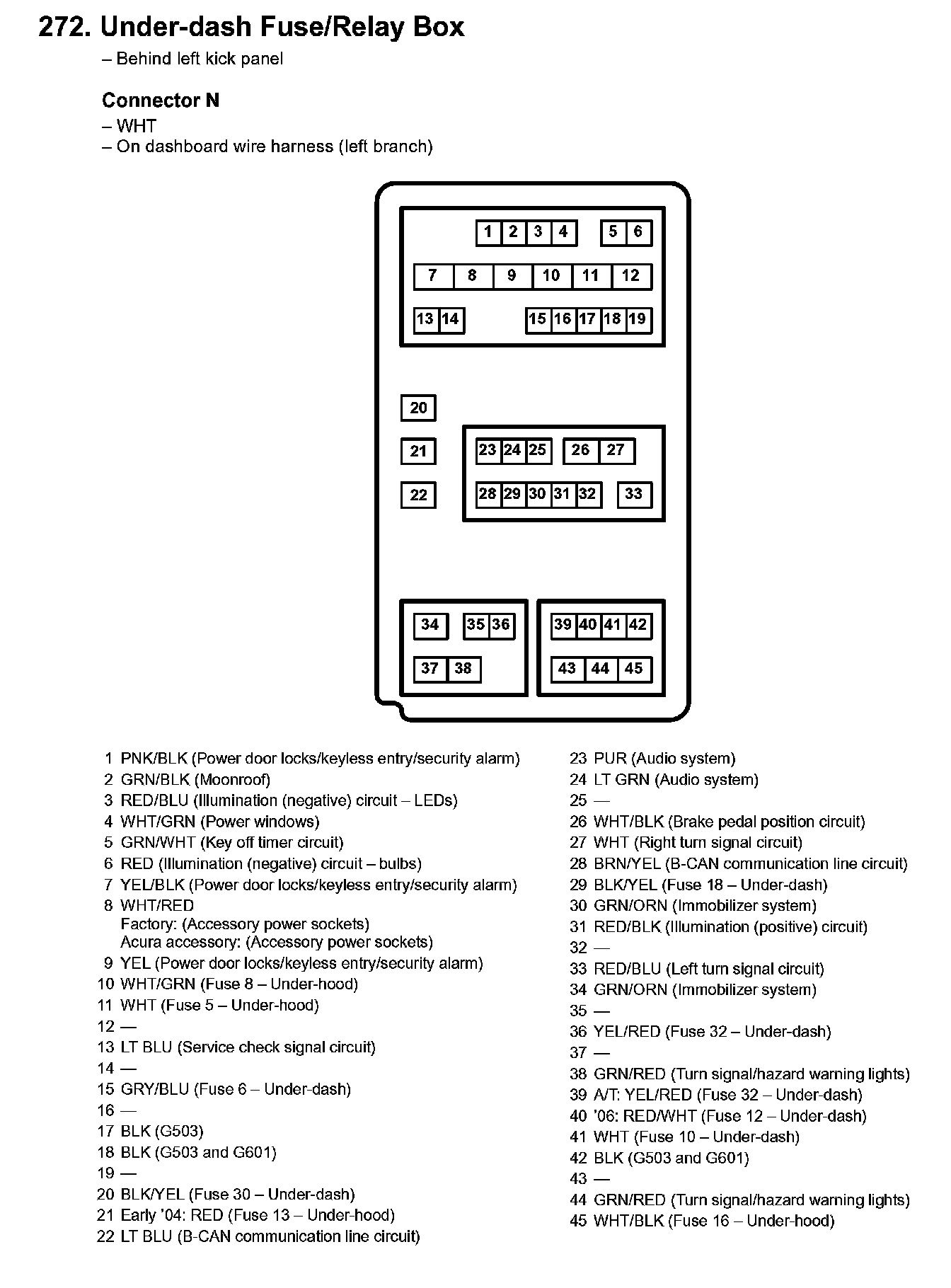

272. Under-dash Fuse/Relay Box:



272. Under-dash Fuse/Relay Box:

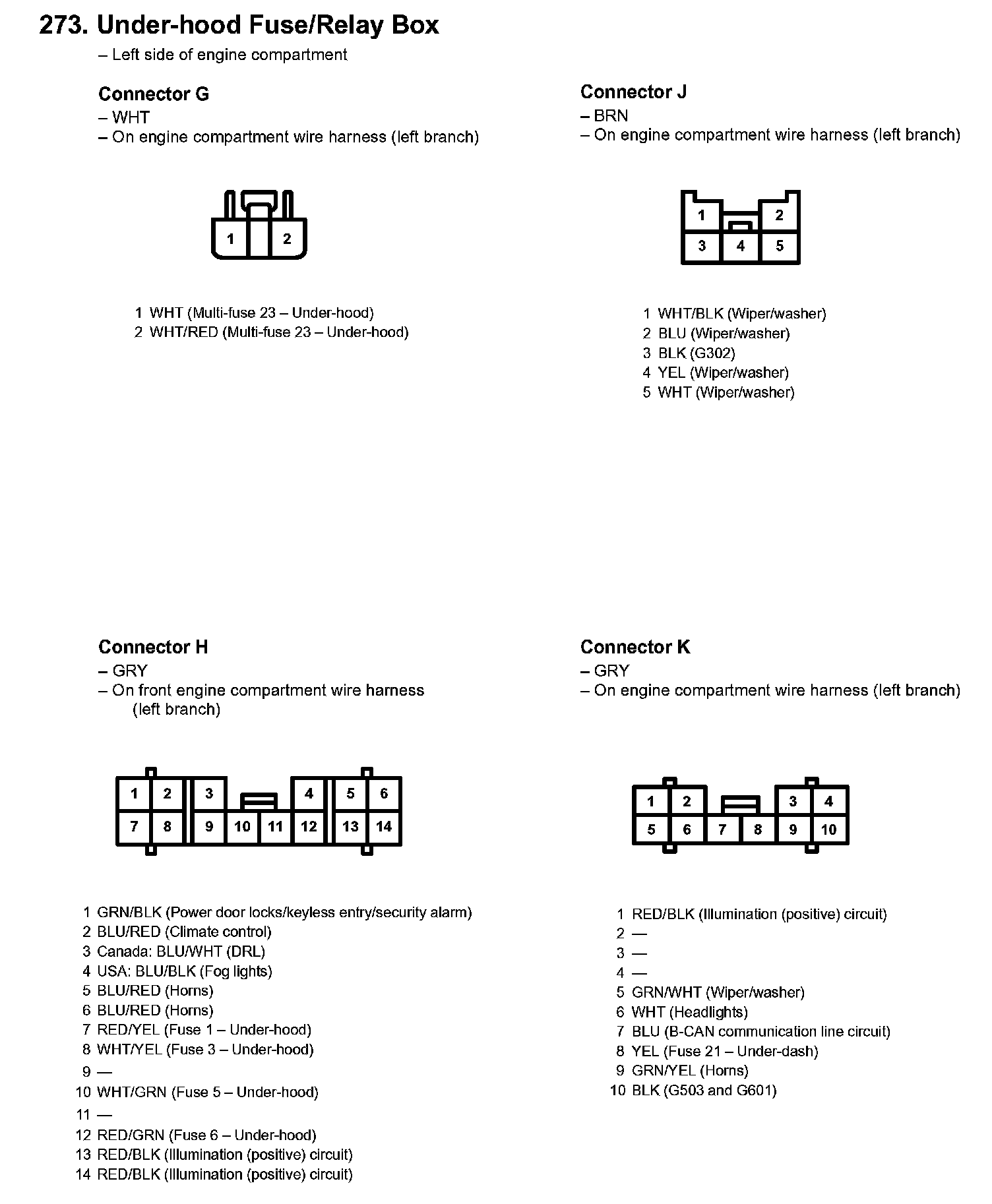

273. Under-hood Fuse/Relay Box:

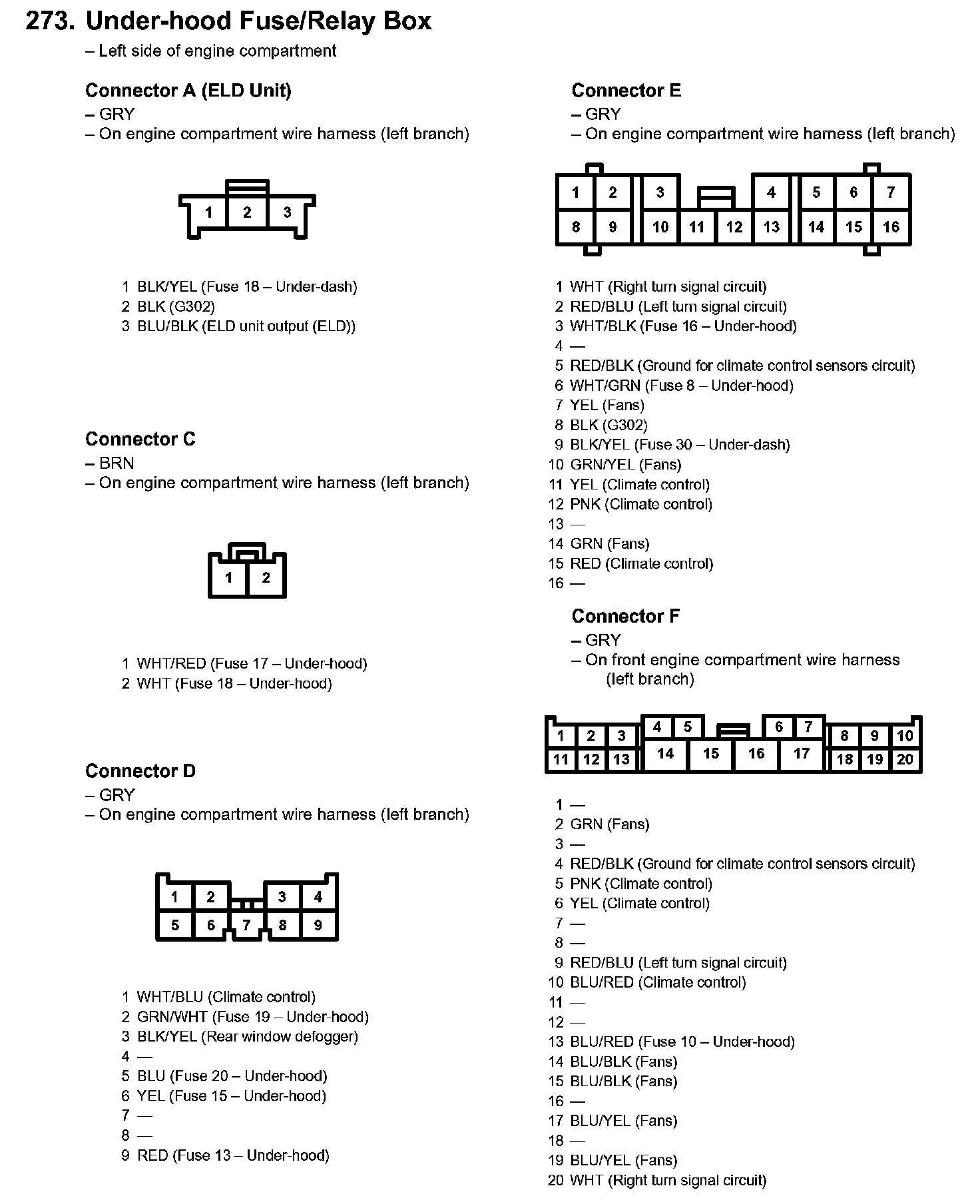

273. Under-hood Fuse/Relay Box:
