Home >> Acura >> 2004 >> TL V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

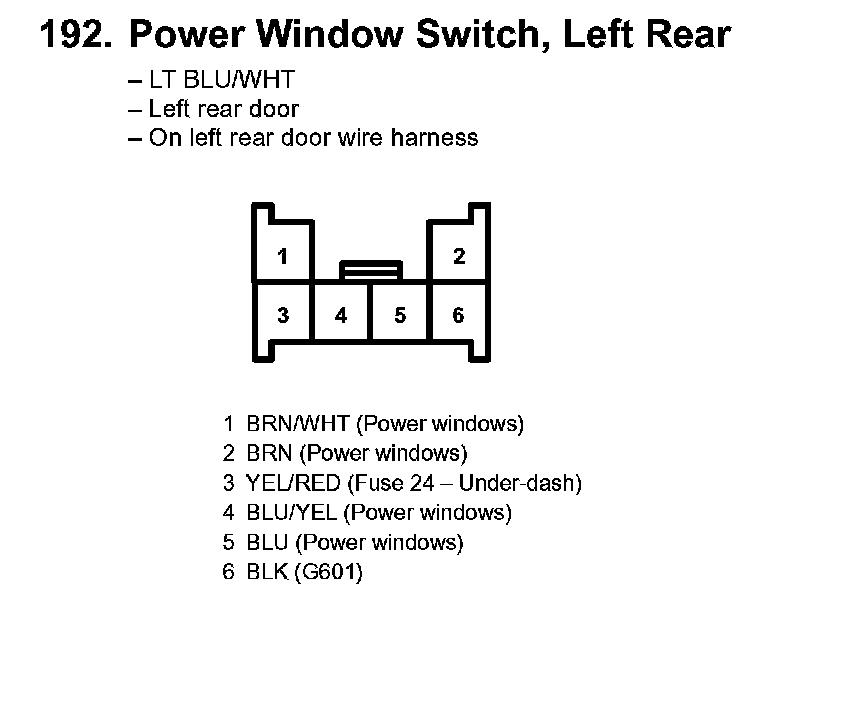

192. Power Window Switch, Left Rear:

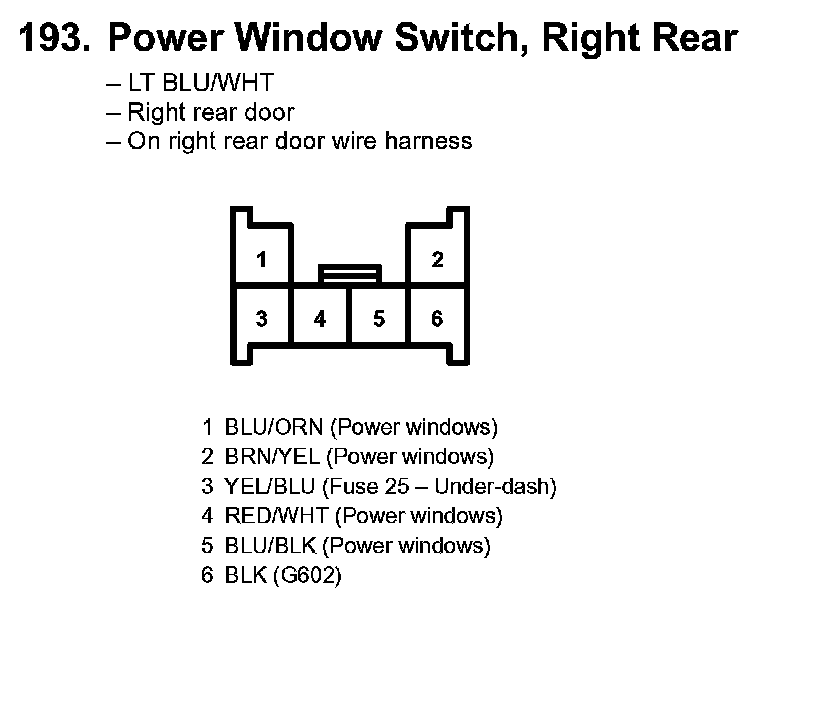

193. Power Window Switch, Right Rear:

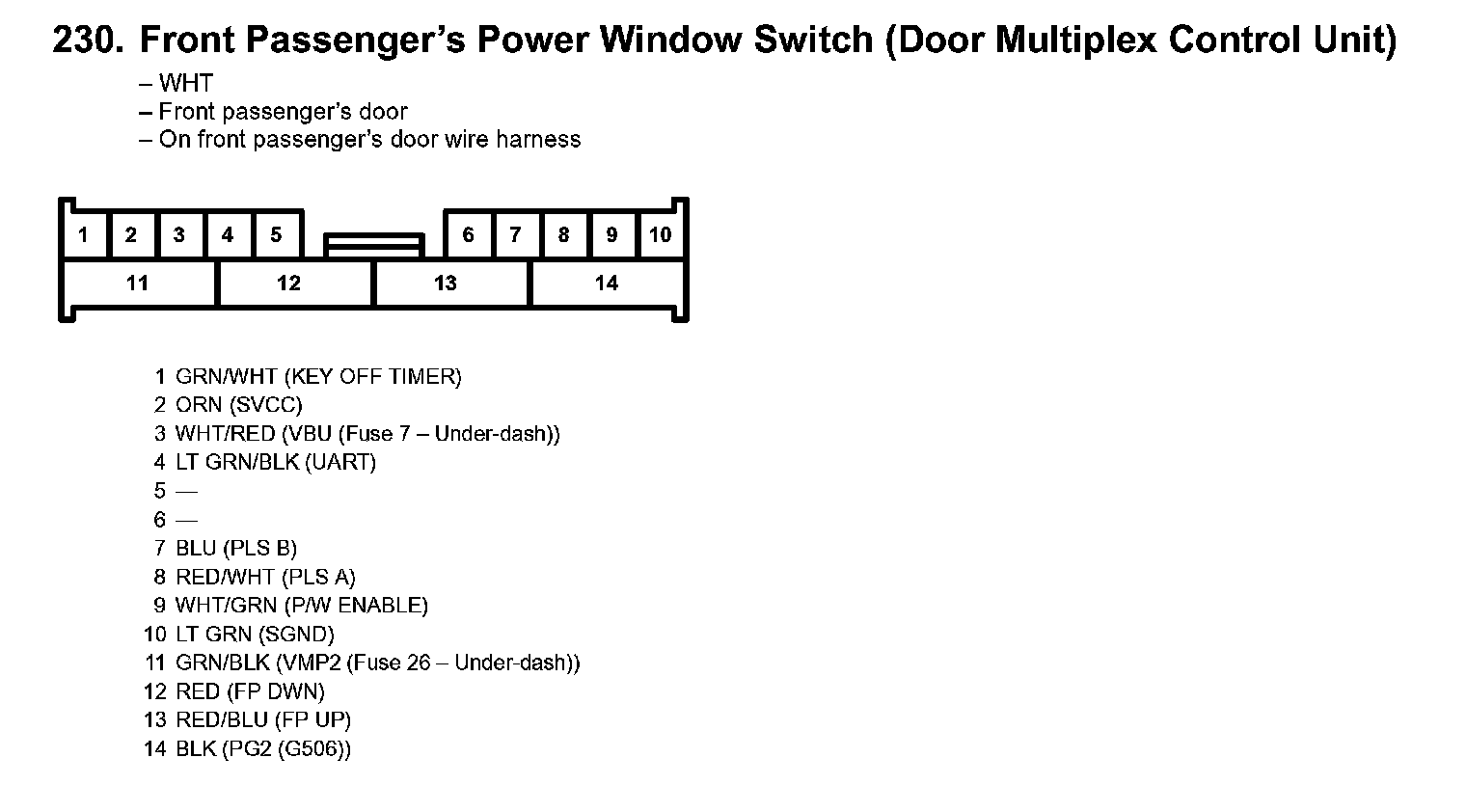

230. Front Pasenger's Power Window Switch (Door Multiplex Control Unit):

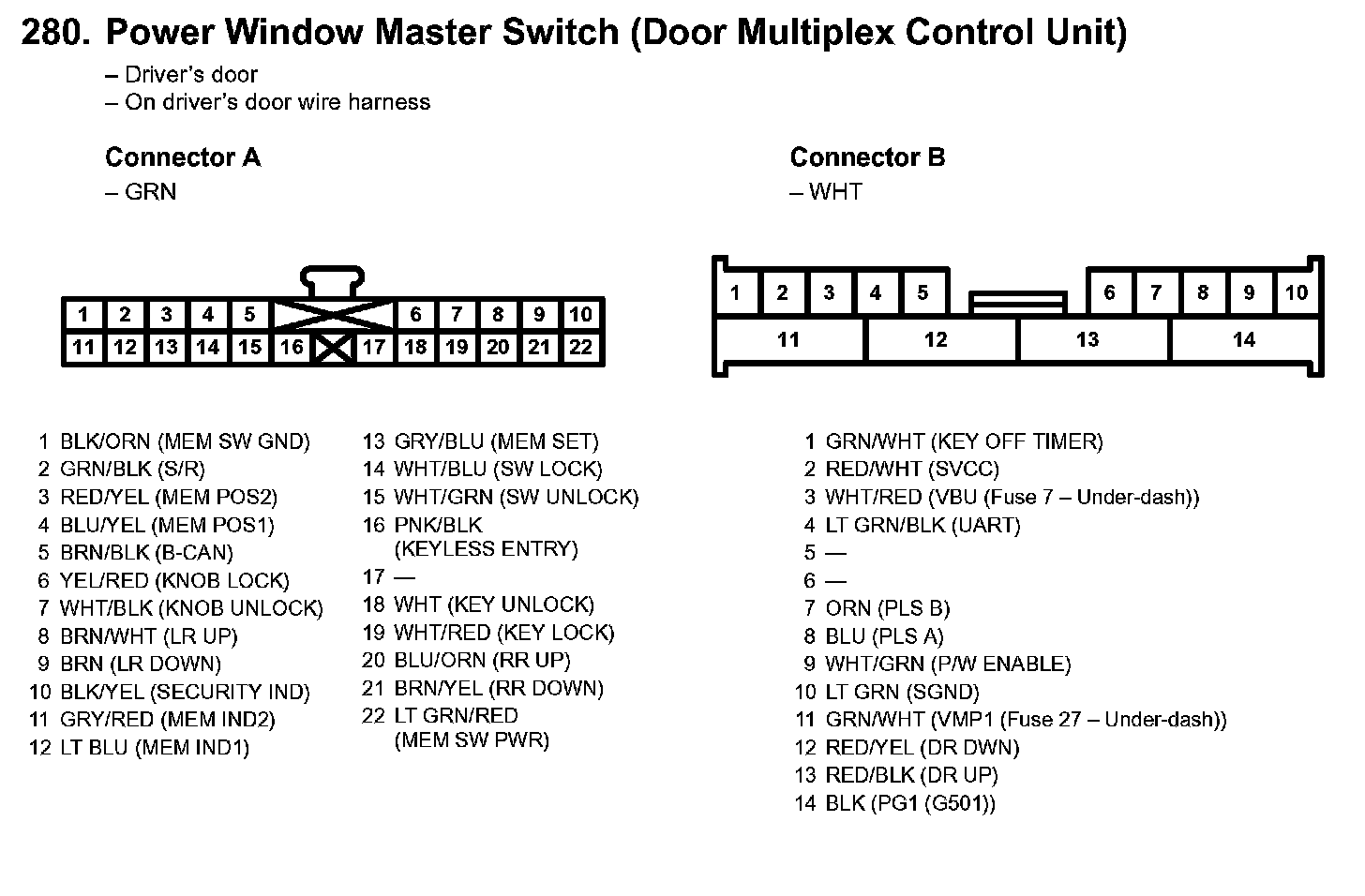

280. Power Window Master Switch (Door Multiplex Control Unit):
