lemon-mirror
:
Home
>>
Acura
>>
2004
>>
TL V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
Navigation Module
Navigation Module

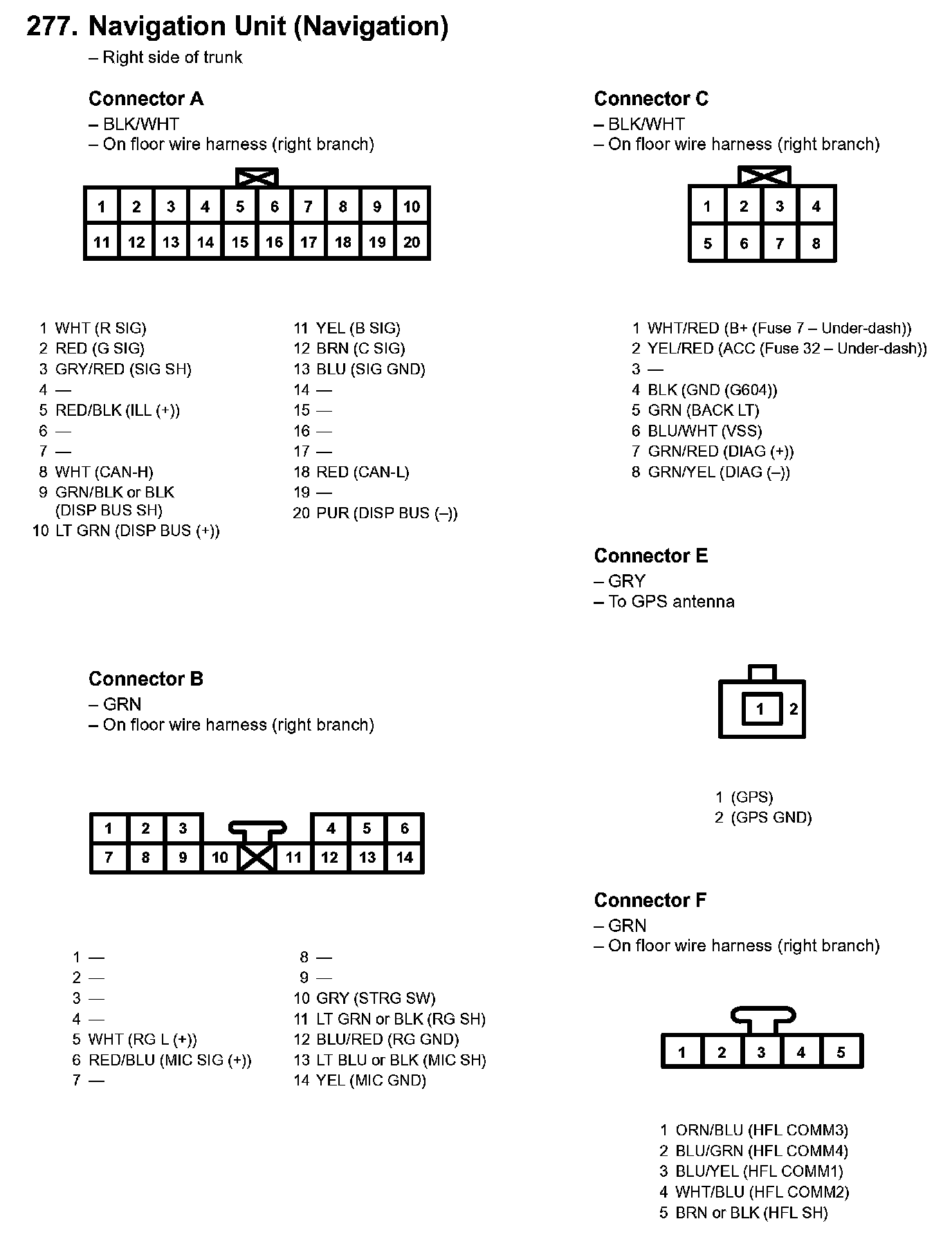

277. Navigation Unit (Navigation):
